7-26 4203780 First Edition
STEERING
7
Rear Axle
Removal and Installation

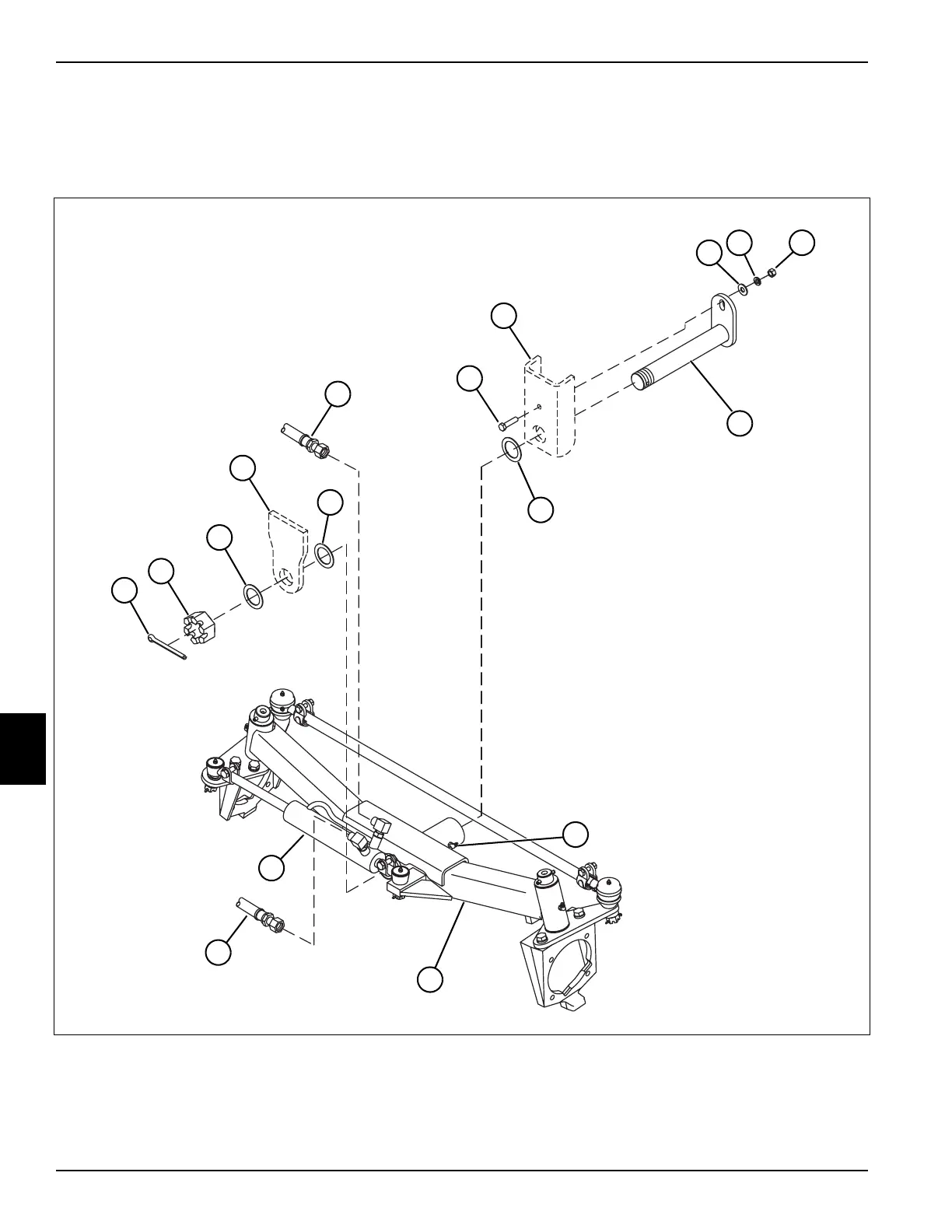

See Figure 7-42.
Figure 7-42
1 Cotter Pin 5 Hose, Left 9 Lock Washer 13 Steering Axle Assembly
2 Castle Nut 6 Hex-Head Bolt 10 Nut 14 Hose, Right
3 Thrust Washer (3) 7 Frame Bracket (Rear) 11 Pivot, Steering Axle 15 Steering Cylinder
4 Frame Bracket (Front) 8 Flat Washer 12 Grease Fitting
TN1829
7
6
5
9
4
1
2
3
13
14
3
10
11
8
3
15
12
