HYDROSTATIC POWER TRAIN
4203780 First Edition 5-47
5
Repair
Front Axle U-Joint
Removal and Installation

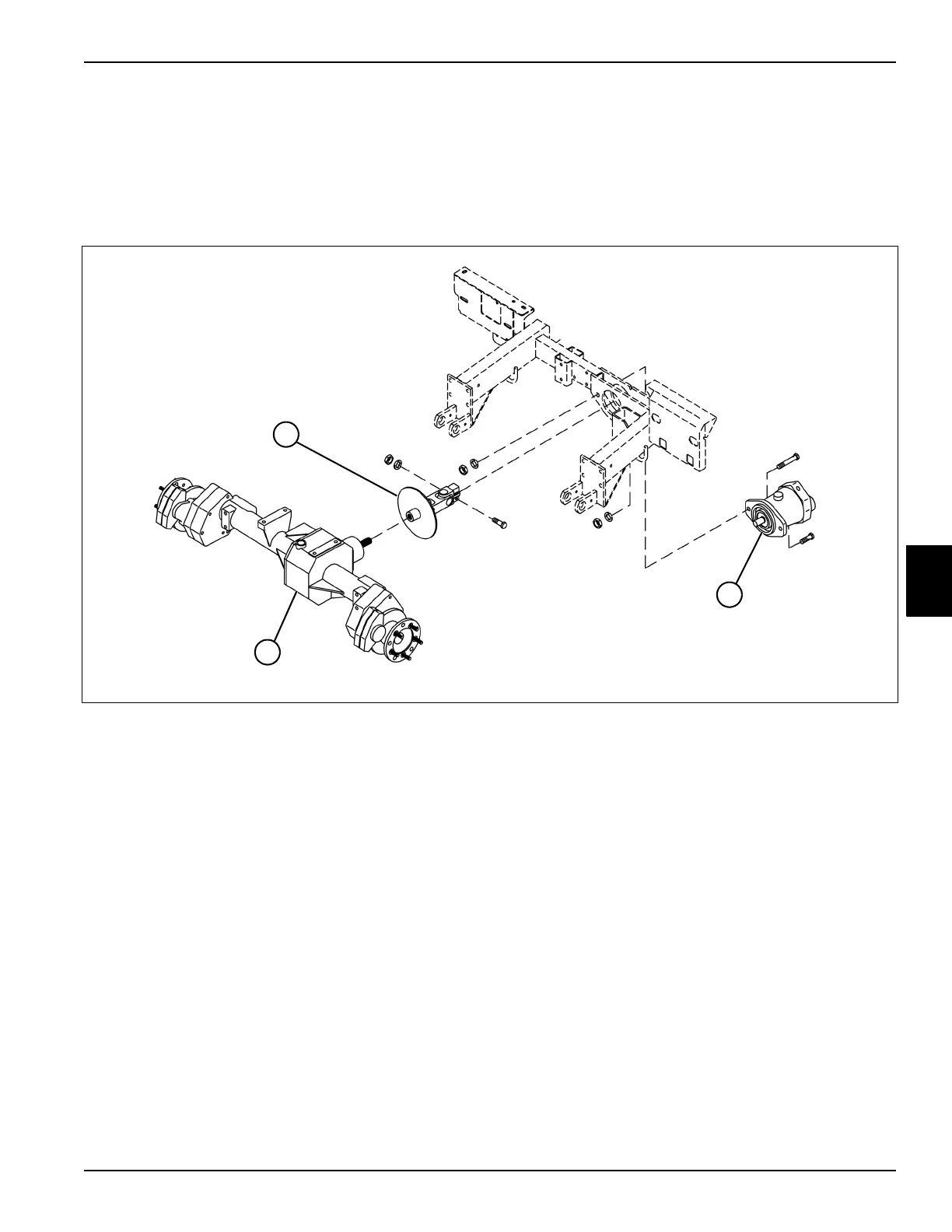

See Figure 5-44.
Figure 5-44
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Remove park brake. (See “Park Brake” on
page 9-11.)
3. Remove front axle motor (2). (See “Front Axle Motor”
on page 5-58.)
4. Disconnect front axle U-joint (1) from front axle (3).
5. Remove front axle U-joint (1).
Installation Notes
• Install the drive shaft by reversing the order of
removal.
• Adjust park brake. (See “Park Brake Adjustment” on
page 9-4.)
