ACCESSORIES AND MISCELLANEOUS REPAIR
4203780 First Edition 9-5
9
Bleed Brake System

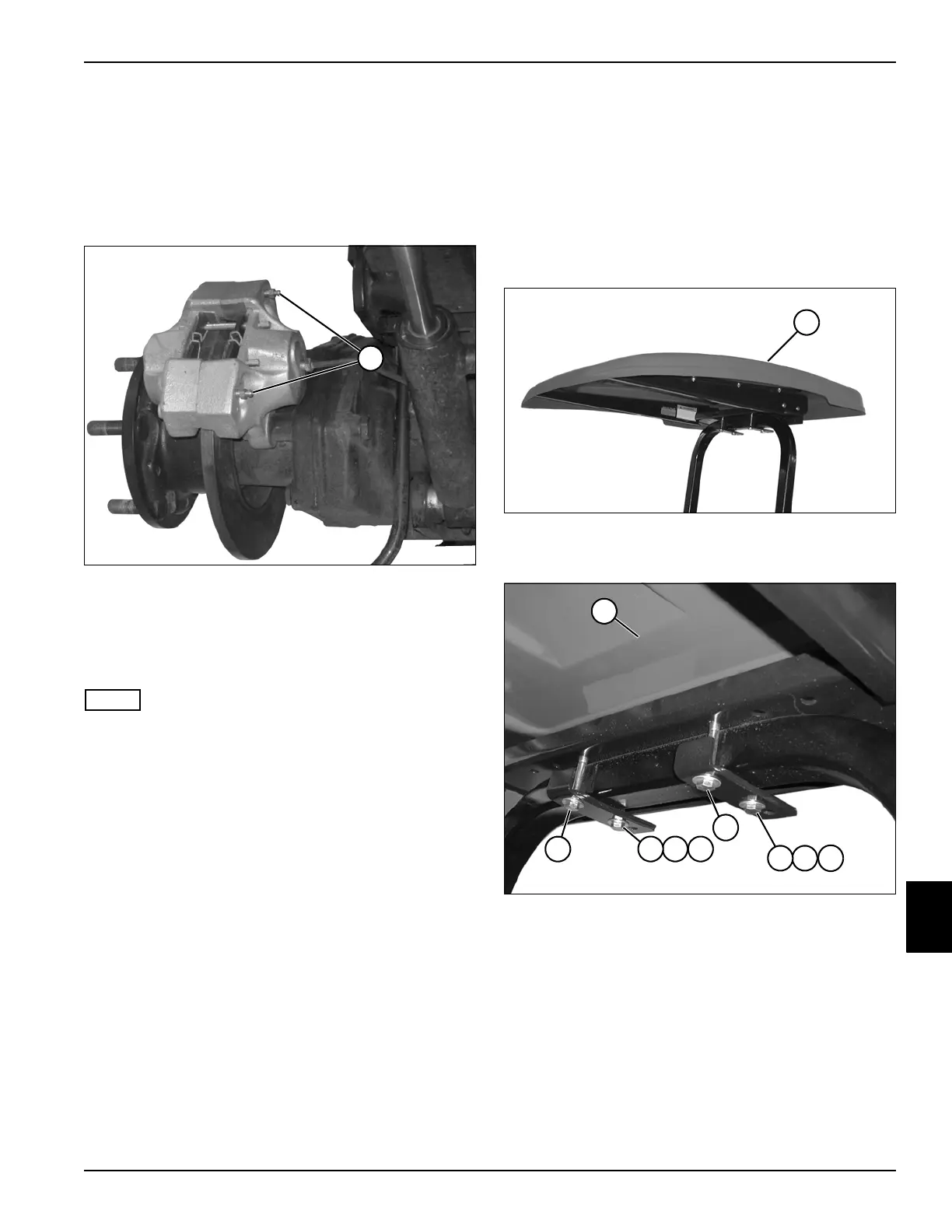

See Figure 9-4.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Fill master cylinder with approved brake fluid. See
operator’s manual for brake fluid recommendations.
Figure 9-4
3. Slowly pump the brake pedal several times and hold
brake pedal down.
4. Slowly open one of the caliper bleed screws (1) to
release air.
NOTE
Check brake fluid level periodically during bleeding to
maintain brake fluid level above half of the master
cylinder reservoir capacity.
5. Close caliper bleed screw.
6. Release brake pedal slowly.
7. Repeat steps 2 through 5 until all the air has been
bled from the brake line.
8. Repeat steps 2 through steps 7 for the other caliper
bleed screw.
9. Repeat steps 2 through steps 8 for the opposite
brake caliper assembly.
10. Fill the master cylinder with approved brake fluid.
Repair
Canopy
Removal and Installation
See Figures 9-5 and 9-6.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
Figure 9-5
2. Support the canopy (1) using a suitable lifting device.
Figure 9-6
3. Loosen the nuts on the two front screws (2).
4. Remove the rear nuts (3), screws (4), and washers
(5).
5. Remove the canopy (1).
Installation Notes
• Center the canopy before tightening the mounting
hardware.
• Install the canopy by reversing the order of removal.
T
N
1
8
6
9
1
1
T
N
1
7
7
4
T
N
1
7
7
5
2
43
543
1
5
2
