6-24 4203780 First Edition
HYDRAULICS
6
Field Test Procedures
Front Lift Cylinders Leakage Test
See Figure 6-14.
!
WARNING
1. Start engine. Operate hydraulic system until oil
temperature is at 120—150° F (49—65° C).
2. Raise front cutting unit.
3. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
4. Support front cutting unit.
.

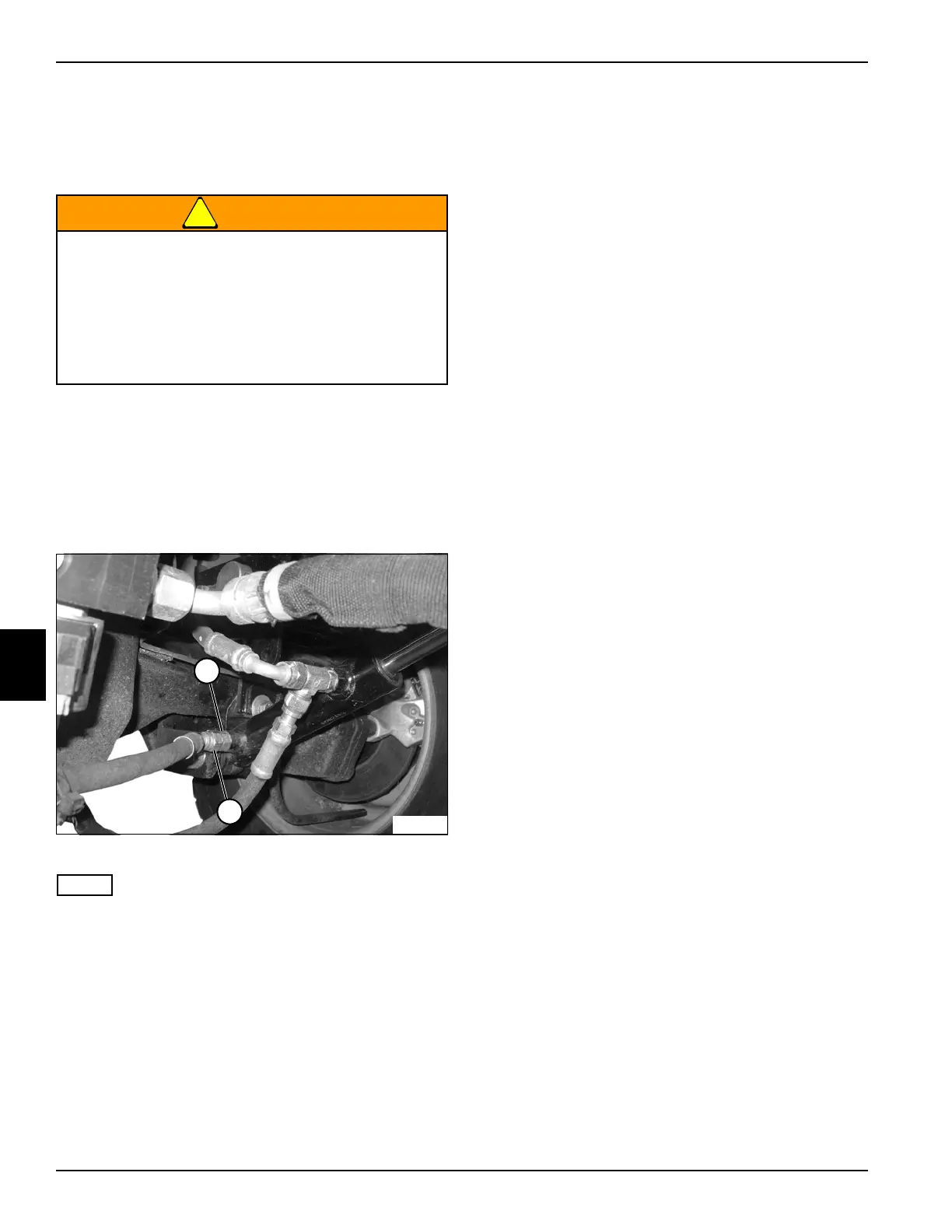

Figure 6-14
NOTE
Figure 6-14 shows left front lift cylinder. Procedure is
similar for right front lift cylinder.
5. Disconnect hose (2) from lift cylinder piston end
fitting (1).
6. Install plug in hose (2).
7. Install cap on lift cylinder fitting (1).
8. Remove support from front cutting unit.
After 15 minutes, does cutting unit drift down?
YES Cylinder is bypassing oil. Replace lift
cylinder. (See “Front Lift Cylinders” on
page 6-69.)
NO Repeat the test for all of the lift cylinders. If
all cylinders pass test, the problem may be in
the lift valve. Proceed to step 9.
9. Support front cutting unit.
10. Connect hose (2) to lift cylinder fitting (1).
11. Start the engine and lower cutting units.
12. Stop the engine.
The hydraulic system is under pressure, and the
oil will be hot.
• Always relieve pressure in the hydraulic
system before performing service.
• Failure to follow appropriate safety
precautions may result in death or serious
injury.
