CUTTING UNITS
4203780 First Edition 8-19
8
Front Deck
Removal and Installation
See Figure 8-9.
1. Lower front deck to the ground, and park the mower
safely. (See “Park Mower Safely” on page 1-6.)

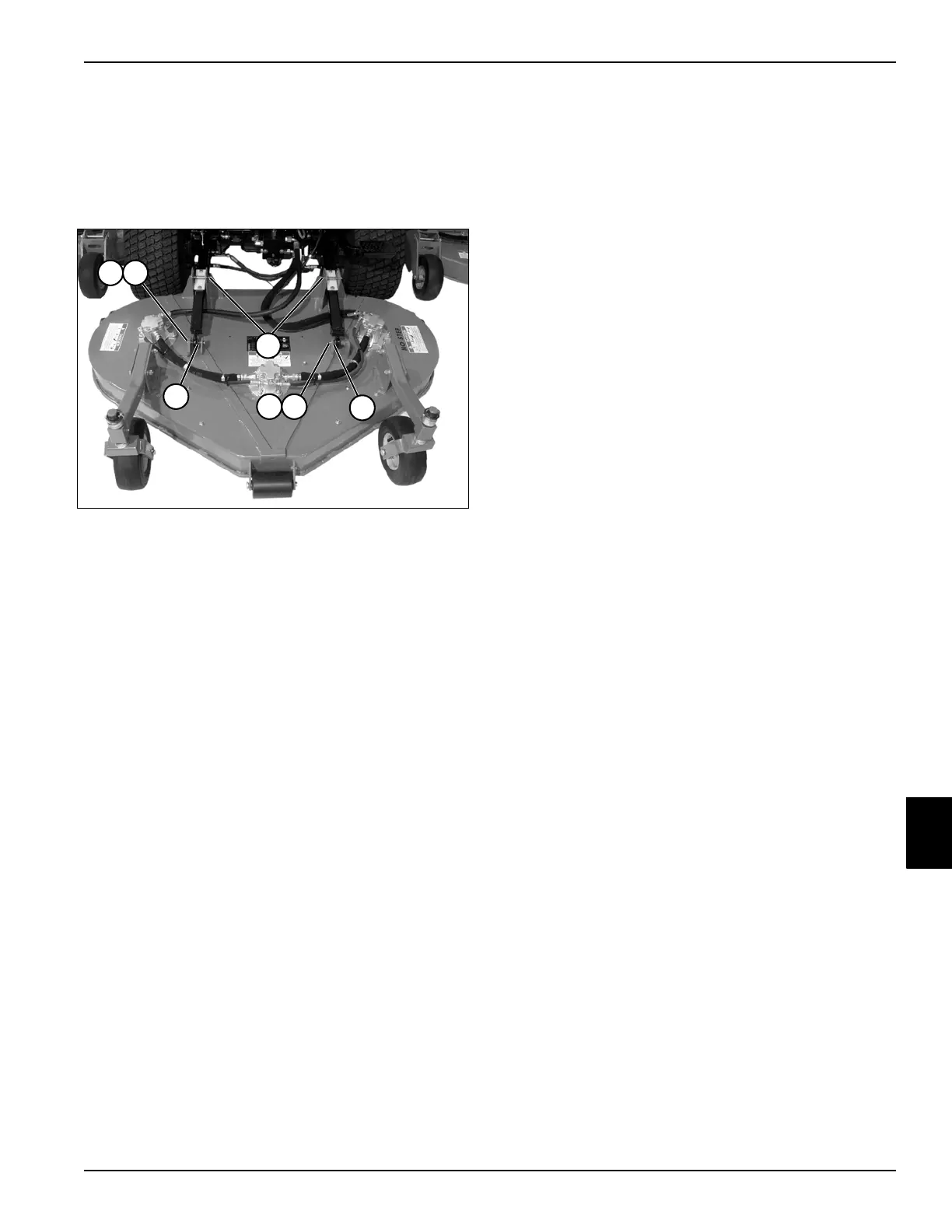

Figure 8-9
2. Remove deck motors. (See “Deck Motor” on
page 8-16.)
3. Remove torsion clip (1), clevis pin (2), and bushing
(3).
4. Remove height-of-cut adjustment pins (4).
5. Roll the cutting unit forward, away from machine.
Repair as needed.
Installation Notes
• Install the front deck by reversing the order of
removal.
• Check front deck level adjustment. (See “Deck
Leveling Adjustment” on page 8-4.)
• Check front deck rake adjustment. (See “Deck Rake
Adjustment” on page 8-4.)
TN1838
1
3
4
3
2
1 2
To Next Page
