ELECTRICAL
4203780 First Edition 4-109
4

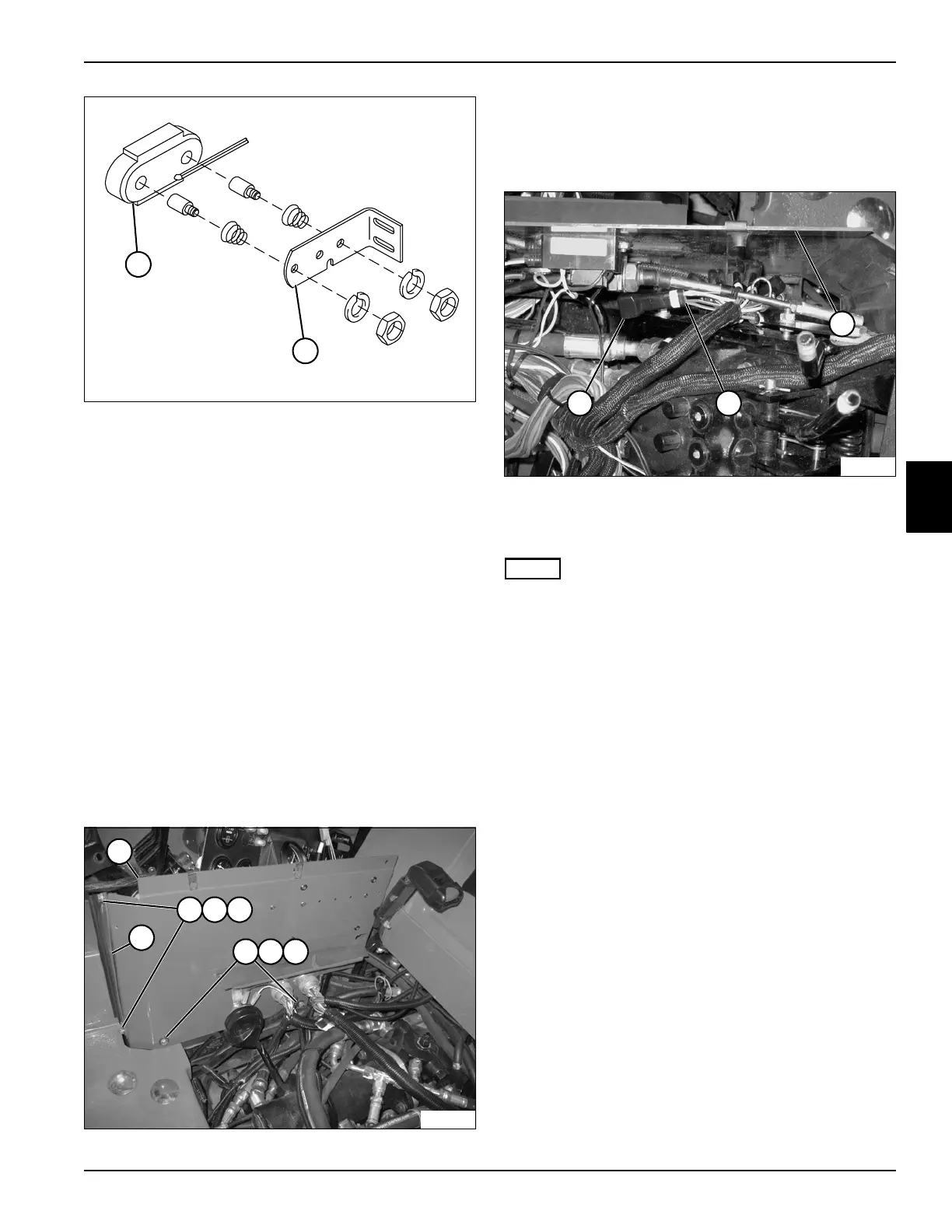

Figure 4-121
6. Remove cruise control magnet (3) from bracket (4).
Installation Note
Install the cruise control magnet by reversing the order of
removal.
Diodes
Removal and Installation
See Figures 4-122 and 4-123.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Disconnect the negative (–) battery cable at the
battery.
3. Remove seat. (See “Seat and Seat Platform” on
page 9-13.)
4. Remove instrument panel. (See “Instrument Panel”
on page 4-110.)
Figure 4-122
5. Remove screws (2), lock washers (3), flat washers
(4), and trim (8).
6. Remove screws (5), lock washers (6), and flat
washers (7).
Figure 4-123
7. Tilt console wall (1) inward to allow access to diode
(9).
NOTE
Label all wires before disconnecting to ensure correct
installation.
8. Remove diode (9) from diode holder (10).
Installation Note
Install the diode by reversing the order of removal.
TN2042
4
3
TN2022
75 6
42 3
1
8
TN2023
1
9 10
To Next Page
