HYDRAULICS
4203780 First Edition 6-13
6

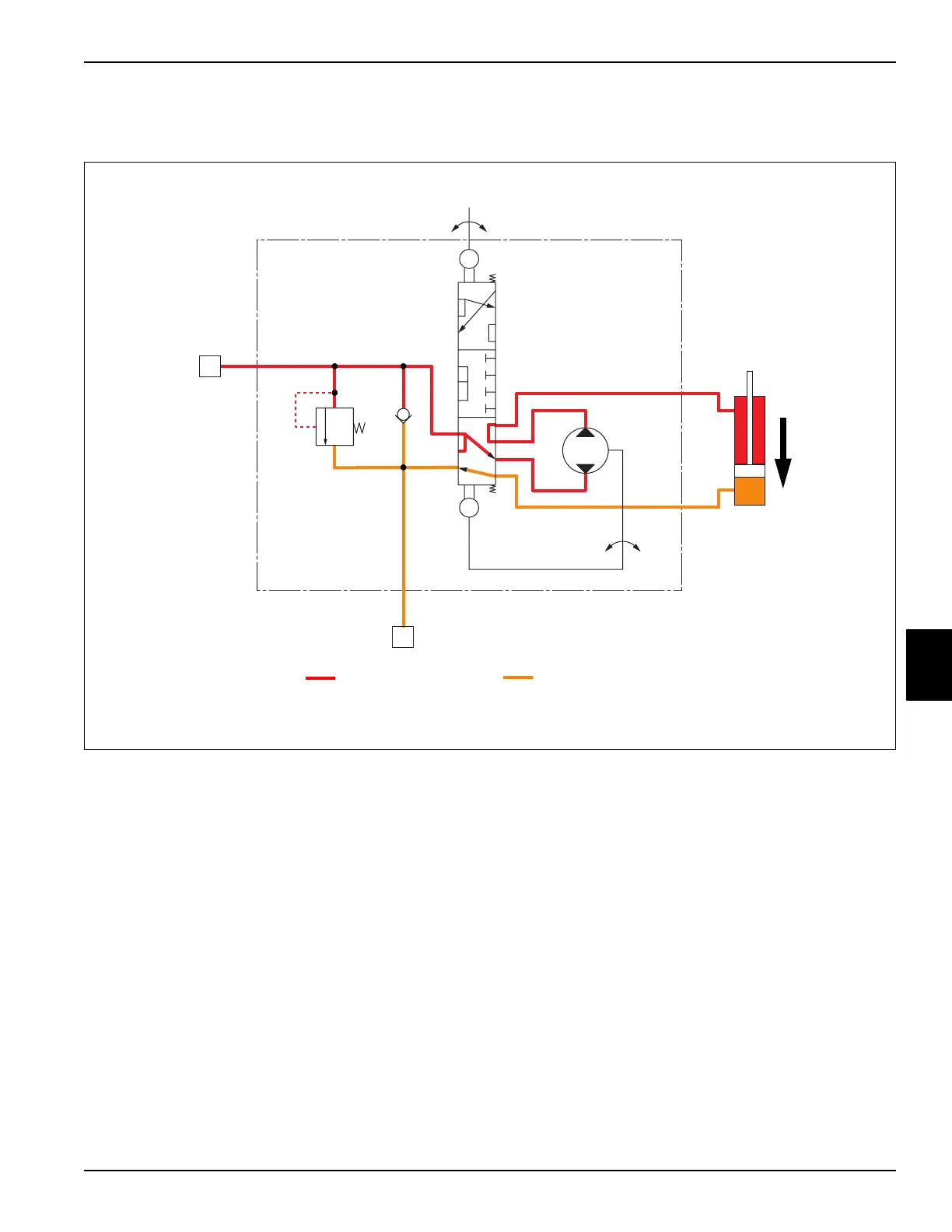

Steering Circuit Schematic
See Figure 6-8.
Figure 6-8
1 Operating Pressure Oil from Control Valve (Port ST) 2 Charge Pressure Oil to Charge Filter
TN1716
Operating Pressure Oil
Charge Pressure Oil
Relief Valve
1450 psi
Steering Unit
IN
OUT
LT
6.6 ci
1
Steering
Cylinder
RT
2
Hydraulic
Oil Cooler
Steering
Valve
Check
Valve
