Installation Notes
• Install the muffler in the reverse order of removal.
• Install new gaskets during installation.
Exhaust Manifold
Removal and Installation
See Figure 3-14.
!
CAUTION
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Allow the engine to cool completely.
3. Raise the hood.
4. Remove the muffler. (See “Muffler” on page 3-9.)

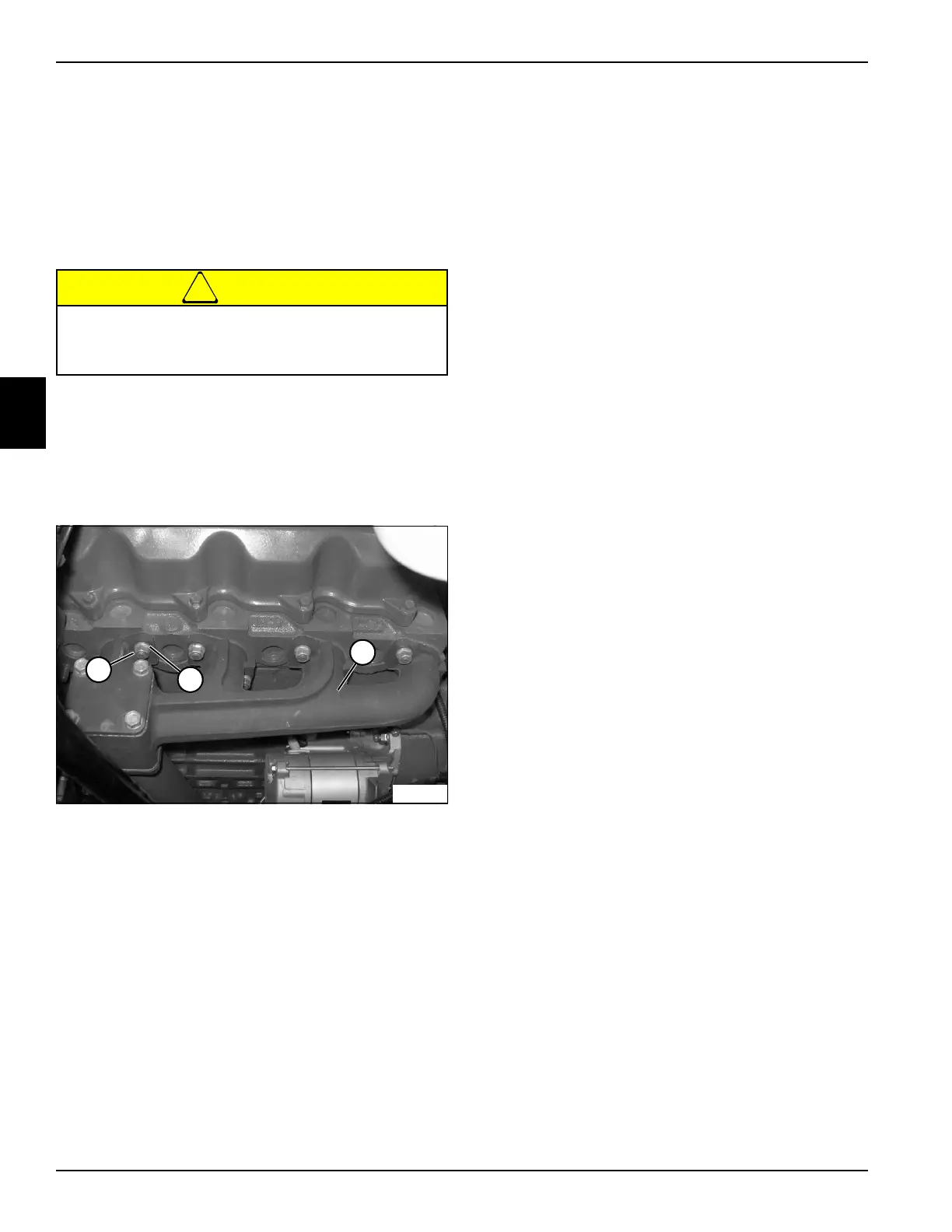

Figure 3-14
5. Remove eight nuts (1) and lock washers (2).
6. Tilt exhaust manifold (3) upward and remove from
engine.
Installation Notes
• Clean the gasket surfaces.
• Install the exhaust manifold by reversing the order of
removal.
• Use new gaskets during installation.
Do not attempt to service the exhaust system
when the engine is hot. Serious personal injury
can occur.
3
2
TN2014
1
