Textron Jacobsen HR-5111 User Manual

9-14 4203780 First Edition
ACCESSORIES AND MISCELLANEOUS REPAIR
9
Disassembly and Assembly
See Figures 9-19 and 9-20.

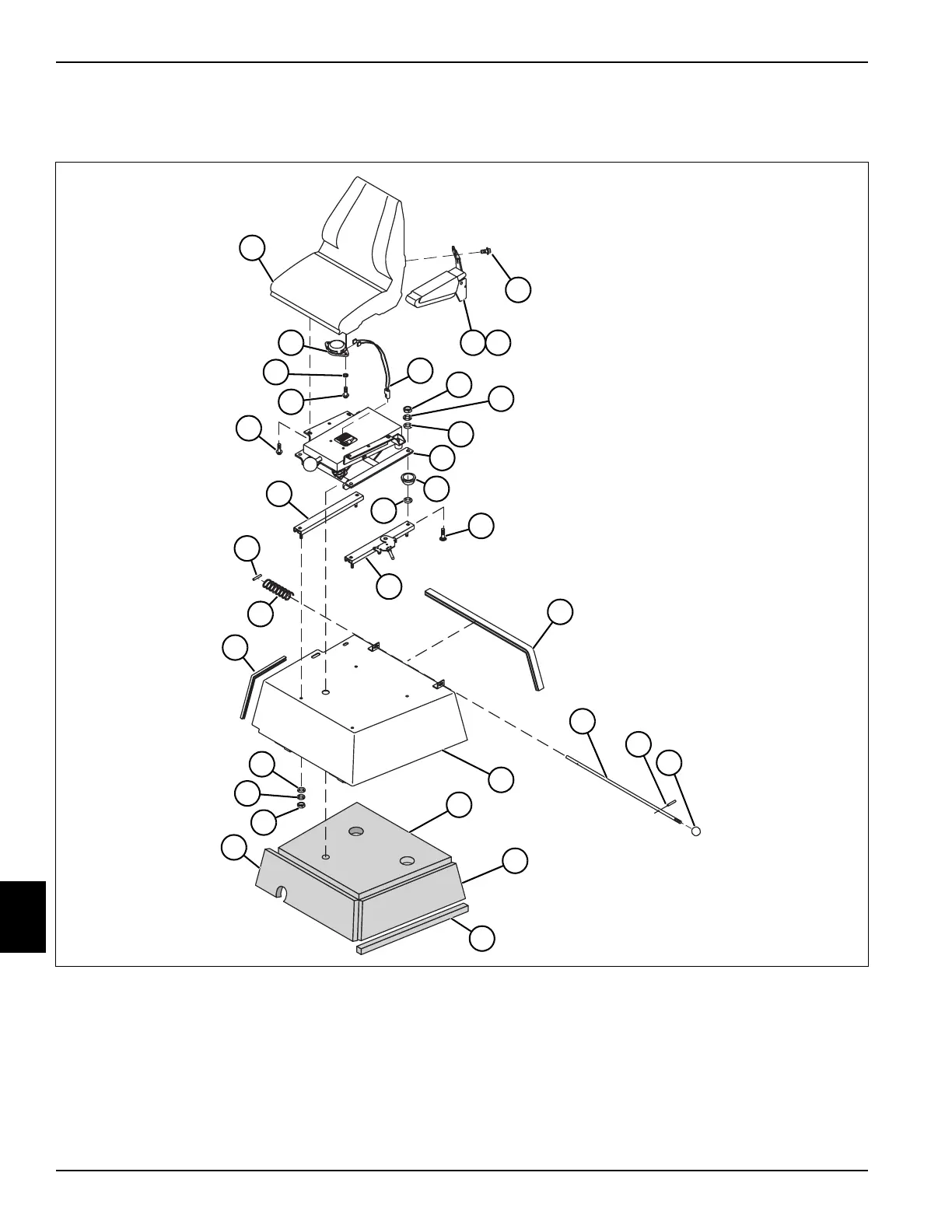

Figure 9-19
1 Seat 9 Nut 17 Trim Seal 25 Foam, Front
2 Screw 10 Lock Washer 18 Rod 26 Nut
3 Armrest, Left-Hand 11 Flat Washer 19 Roll Pin 27 Lock Washer
4 Armrest, Right-Hand 12 Seat Suspension, Mini 20 Knob 28 Flat Washer
5 Seat Switch 13 Spacer 21 Seat Pan 29 Trim Seal
6 Lock Washer 14 Flat Washer 22 Foam, Top 30 Spring
7 Screw 15 Carriage Bolt 23 Foam, Left Side 31 Roll Pin
8 Seat Switch Wire Harness 16 Latching Adjuster 24 Weather Strip 32 Slave Adjuster
33 Screw
1
2
T
N
1
7
7
3
3 4
8
9
10
11
12
13
5
6
14
15
16
17
21
20
19
18
22
23
24
25
26
27
28
29
30
31
32
33
7
