3-4 4203780 First Edition
ENGINE
3

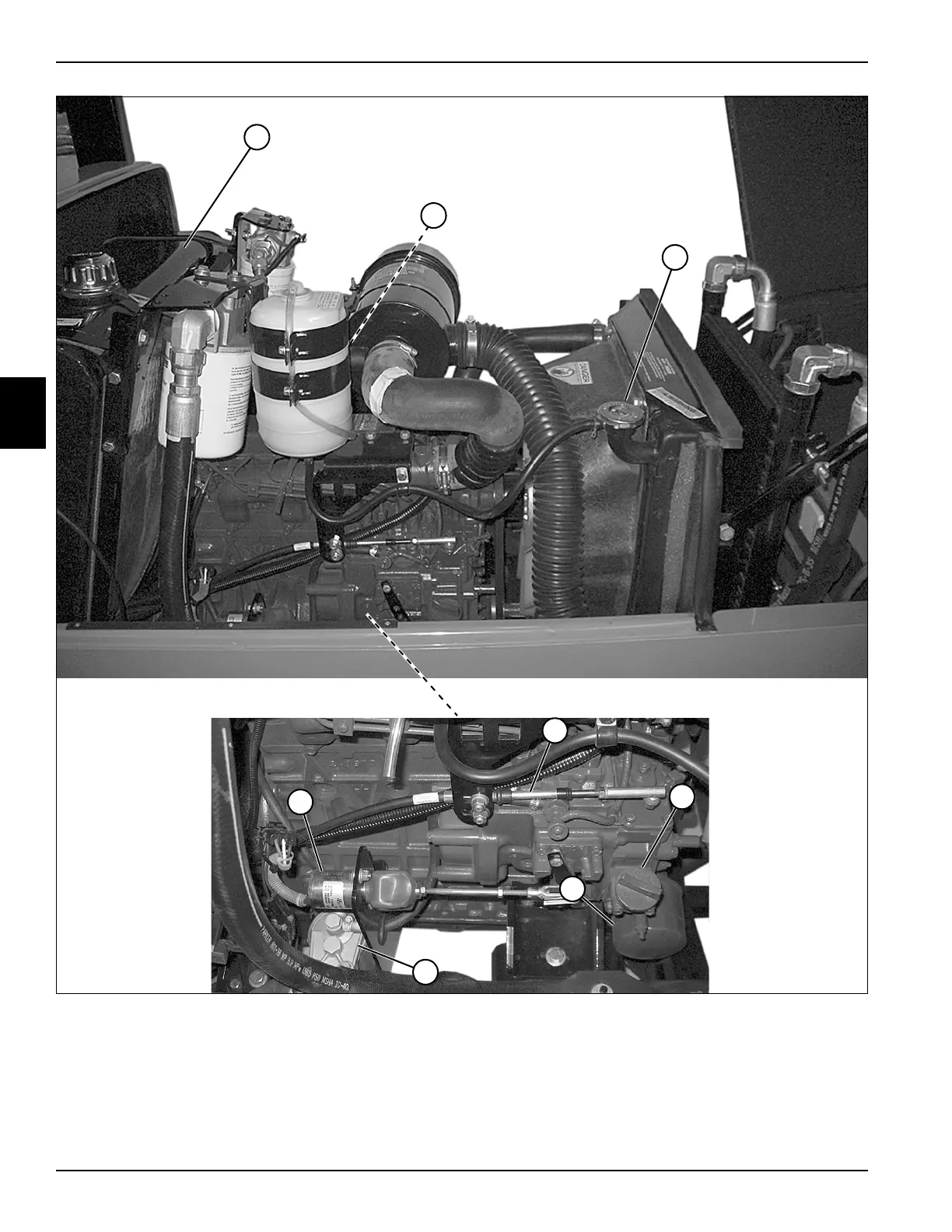

Figure 3-2: Component Location—Left Side
1 Hydraulic Tank 5 Oil Filler Cap
2 Air Cleaner Service Switch 6 Oil Filter
3 Radiator Cap 7 Fuel Filter
4 Throttle Cable 8 Fuel Shutoff Solenoid
TN2004, TN2005
7
1
5
8
4
6
3
2
