8-22 4203780 First Edition
CUTTING UNITS
8
Disassembly and Assembly

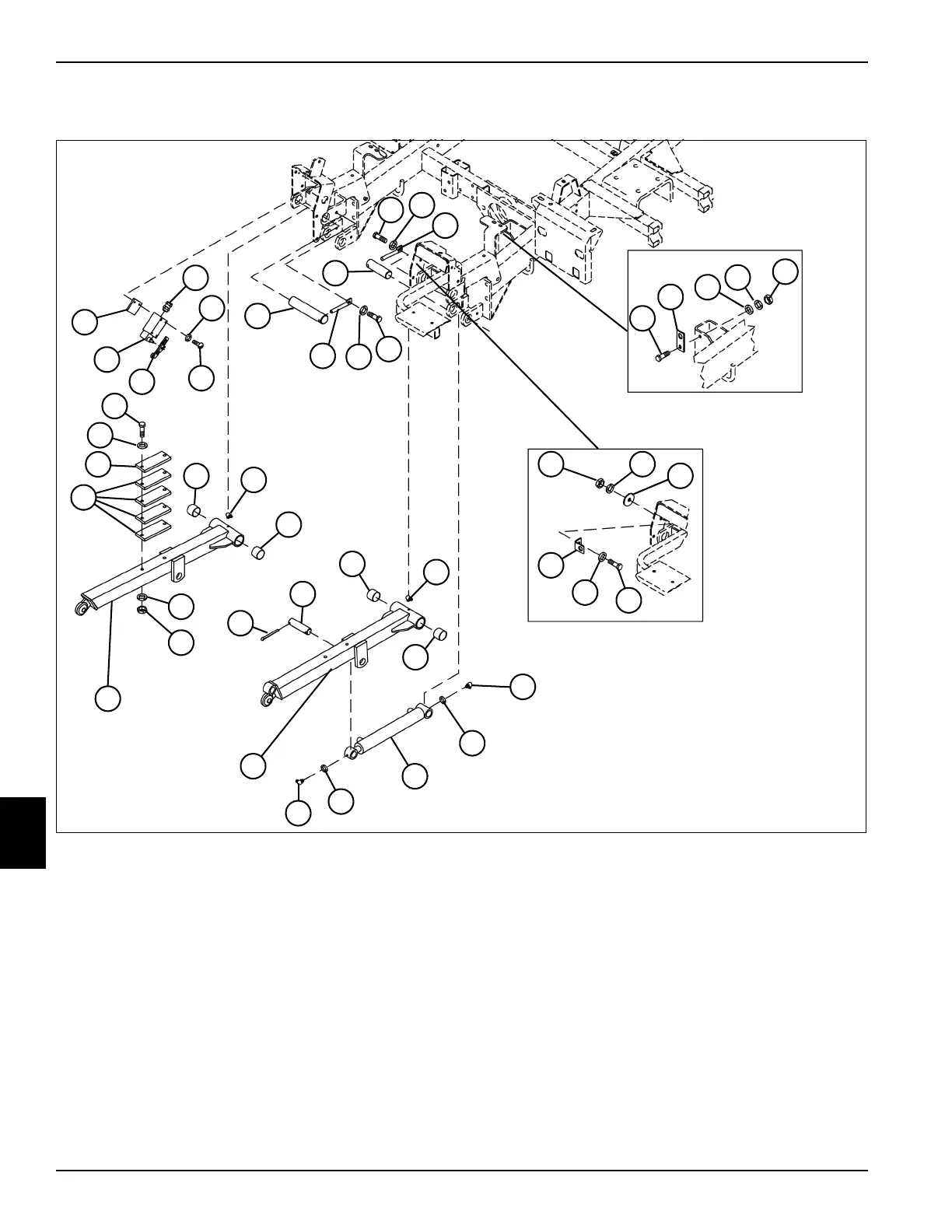

See Figure 8-12.
Figure 8-12
Disassembly Note
Inspect all parts for wear or damage. Replace as
necessary.
1 Screw (2) 8 Nut (2) 15 Bushing (4) 22 Shim 29 Lock Washer
2 Lock Washer (3) 9 Lock Washer (2) 16 Flat Washer (2) 23 Bumper 30 Screw
3 Pin (2) 10 Washer 17 Lift Cylinder 24 Screw 31 Shaft
4 Screw 11 Bracket 18 Grease Fitting 25 Actuator Arm 32 Pin
5 Bracket 12Flat Washer (2) 19Lift Arm (2) 26Switch
6 Flat Washer 13 Screw 20 Cotter Pin 27 Spacer
7 Nut 14 Grease Fitting (3) 21 Pin 28 Connector
15
23
TN1897
12
1
2
3
4
5
6
2
7
10
8
9
11
12
13
18
16
17
16
14
19
14
15
21
20
15
14
19
9
8
22
15
24
30
25
26
1
2
3
31
29
28
27
32
