8-24 4203780 First Edition
CUTTING UNITS
8
Disassembly and Assembly

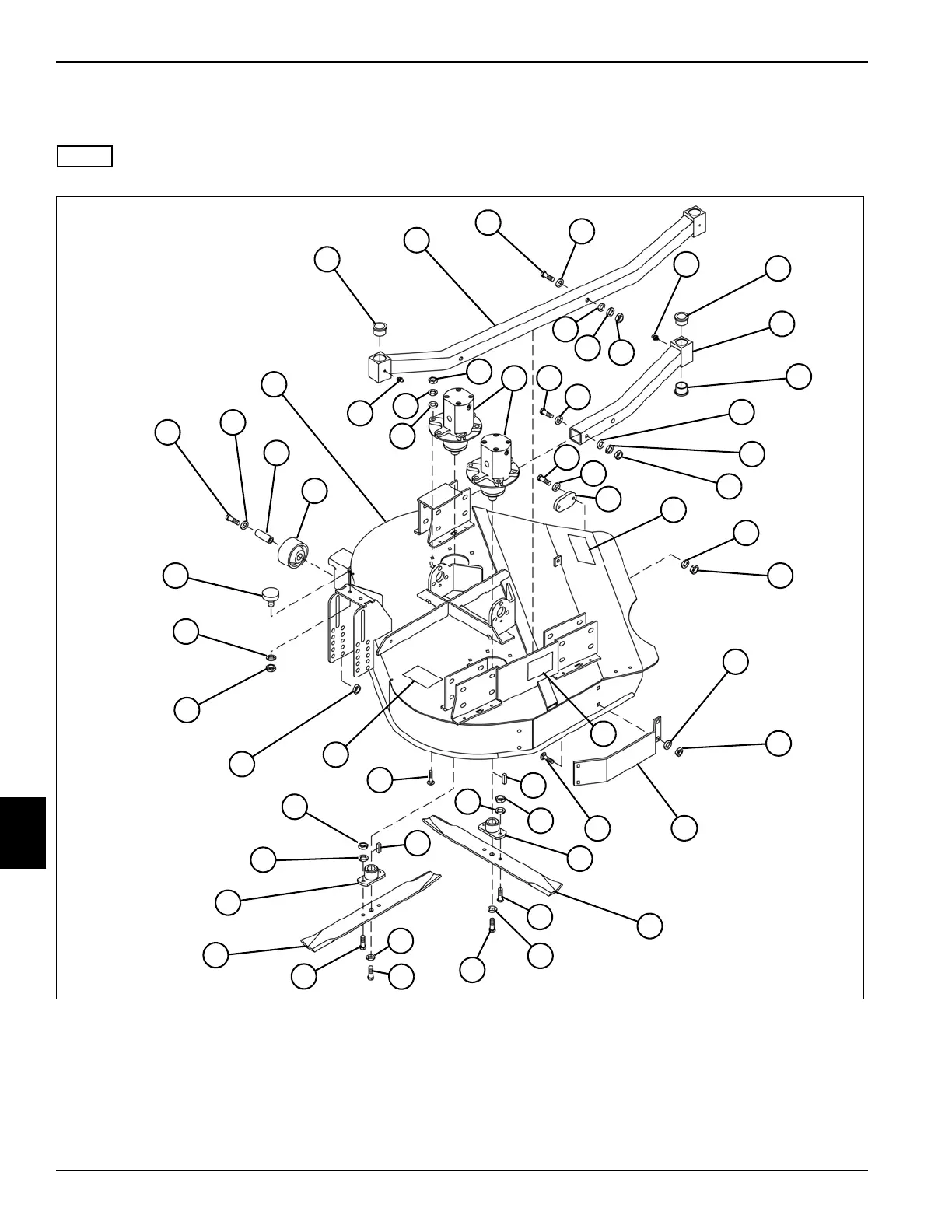

See Figure 8-15.
NOTE
Right wing deck shown; left is similar.
Figure 8-15
1 Bushing (3) 8 Screw 15 Lock Nut 22 Blade (2) 29 Spacer
2 Caster Arm (2) 9 Flat Washer 16 Bumper 23 Screw (2) 30 Flat Washer
3 Screw (2) 10 Reflector 17 Carriage Bolt 24 Screw (2) 31 Screw
4 Flat Washer (4) 11 Decal (3) 18 Key (2) 25 Carriage Bolt 32 Wing Deck
5 Lock Washer (4) 12 Lock Washer 19 Nut (4) 26 Lock Nut 33 Motor (2)
6 Nut (2) 13 Nut 20 Lock Washer (4) 27 Rubber Stop
7 Grease Fitting (2) 14 Flat Washer (2) 21 Adapter (2) 28 Anti-Scalp Wheel
7
2
11
17
20
TN1900
11
1
2
3
4
7
1
4
5
6
1
4
5
6
4
3
33
19
20
14
8
9
10
12
13
14
15
16
18
19
21
22
23
5
24
24
5
23
22
21
20
19
18
25
11
26
19
20
27
28
29
30
31
32
