ACCESSORIES AND MISCELLANEOUS REPAIR
4203780 First Edition 9-9
9
Traction Pedal
Disassembly and Assembly

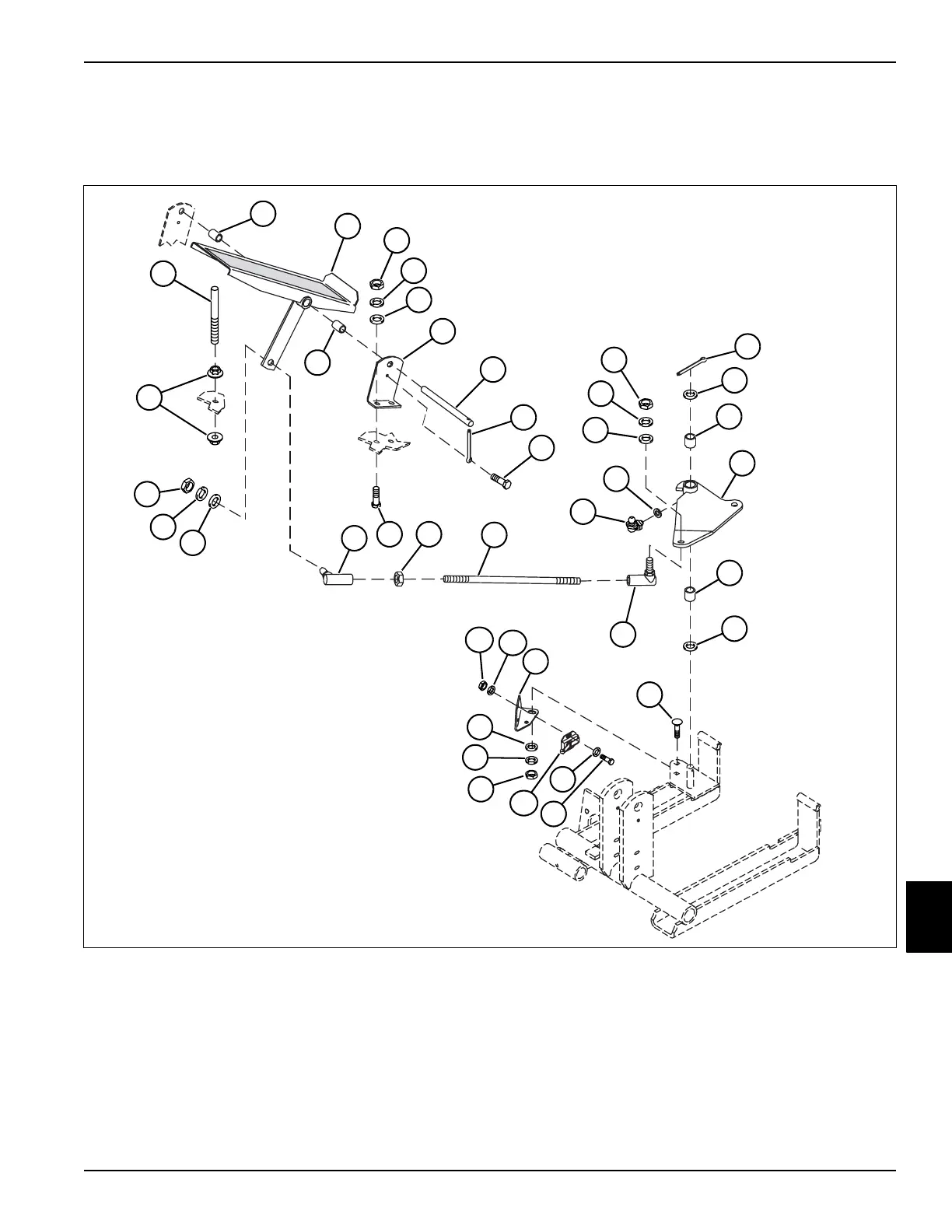

See Figure 9-14.
Figure 9-14
1 Bushing (2) 12 Flat Washer (2) 23 Nut (2)
2 Traction Pedal 13 Lock Washer (2) 24 Lock Washer (2)
3 Nut (2) 14 Nut (2) 25 Switch Bracket
4 Lock Washer (2) 15 Cotter Pin 26 Lock Washer (2)
5 Flat Washer (2) 16 Flat Washer (2) 27 Nut (2)
6 Traction Pedal Mounting Bracket 17 Bushing (2) 28 Ball Joint (2)
7 Traction Pedal Pivot Rod 18 Traction Bell Crank 29 Traction Pedal Adjusting Rod
8 Cotter Pin 19 Carriage Bolt (2) 30 Jam Nut
9 Screw 20 Screw (2) 31 Screw (2)
10 Grease Fitting 21 Flat Washer (2) 32 Flange Nut (2)
11 Flat Washer (3) 22 Reverse Kick Out Switch 33 Pedal Limiting Stud
