ELECTRICAL
4203780 First Edition 4-25
4

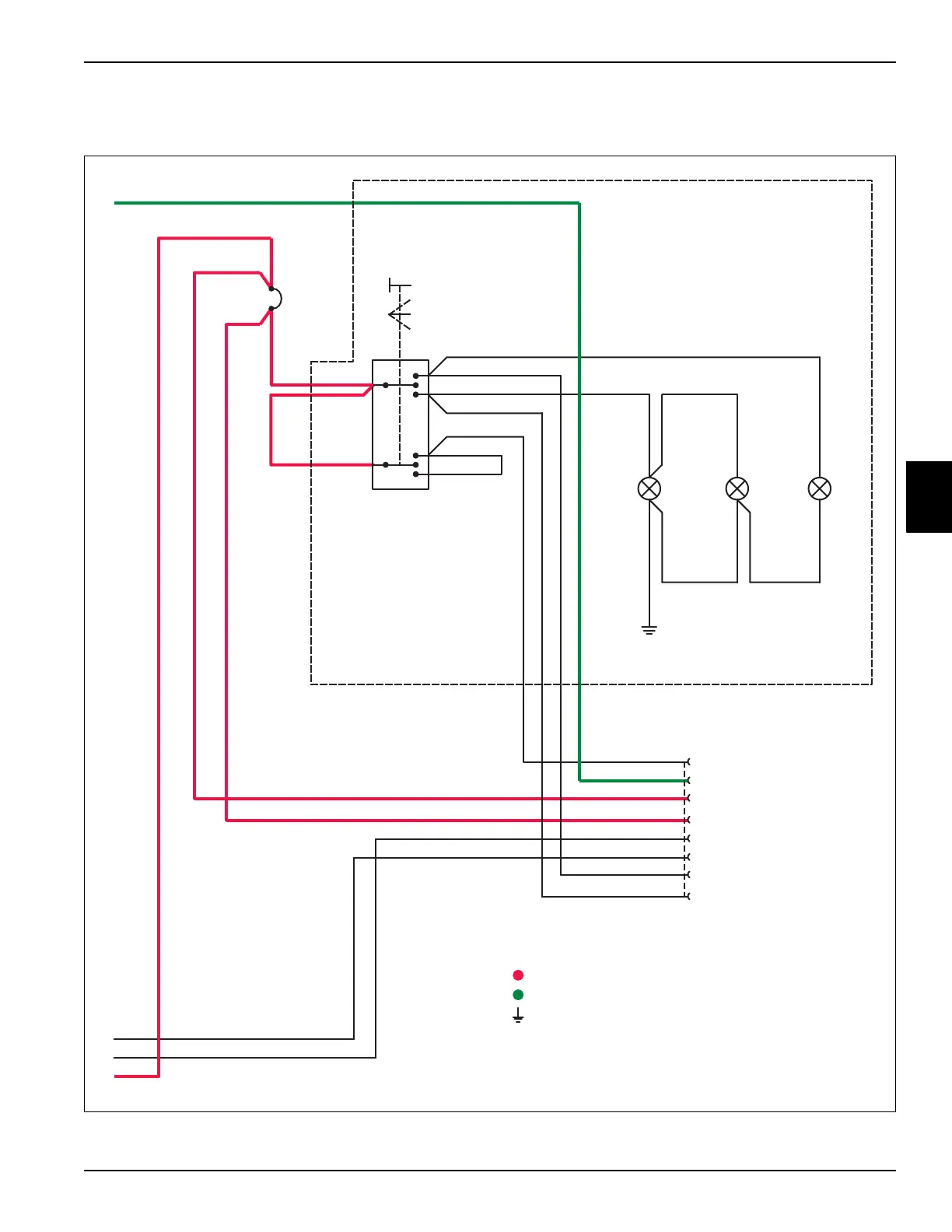

Power Circuit Schematic
Continued
Figure 4-14
Wht Wht
Lt Grn
Lt Blu
Lt Grn
Lt Blu
Red
Blk Blk Blk
Lt Grn
Lt Blu
Wht
Wht
Wht
Gry
Gry
Gry
Wht
RedRed
Red
Tan/Red
Tan/Red
Tan/Red
Wht Wht Wht
Work
Road
Off
S17
Light
Switch
Optional
Work Lights
E12
Work
Light
E13
Work
Light
E11
Tail
Light
Org/Blu
Org/Blu
Org/
Blu
Org/BluOrg/Blu
Red
F7
30A
Circuit
Breaker
Tan/
Red
Blk Blk
J4
Cab/Canopy
Option
Connector
6
8
4
5
1
2
3
7
Switched Power Circuit
Unswitched Power Circuit
Ground Circuit
TN1758
