Toshiba B-FV4 Series User Manual

7. B-FV Setting Tool EO18-33030
7.2 Working with B-FV Setting Tool (V1.0.21)
7-24

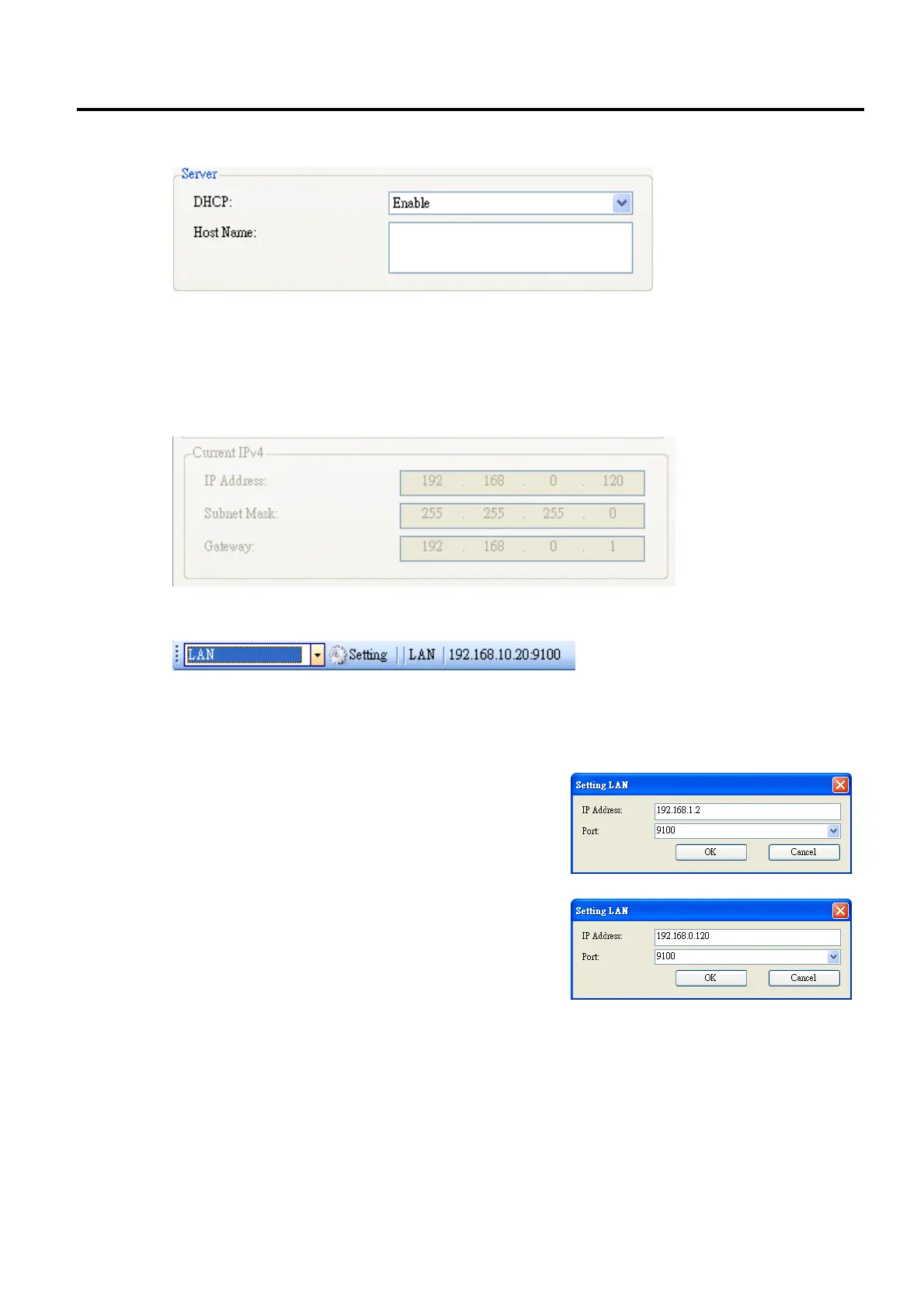

∙ If you don’t have a static IP address, make sure DHCP is enabled and click Send.
5. After your printer restarts, click Get to get the IPv4 information of your printer. If you are using a
static IP address, you’ll get the same TCP/IP settings as it is in step 4; if you are using DHCP, the
DHCP server will automatically populate the IP Address, Subnet Mask and Gateway boxes
under Current IPv4.
6. In the Input/Output Port list, click LAN, and click Setting.
7. In the Setting LAN dialog box, do one of the following to configure your IP address:
∙ If you are using a static IP address, in the IP Address
box, enter the IP address under IPv4 in the WLAN tab
and click OK.
∙ If you are using a dynamic IP address provided by
DHCP, in the IP Address box, enter the IP address
under Current IPv4 in the WLAN tab and click OK.

Toshiba B-FV4 Series Specifications

General

Resolution	203 dpi
Print Method	Thermal Transfer / Direct Thermal
2D Codes	Data Matrix, PDF417, QR Code, Maxi Code
Operating Temperature	5 – 40 °C
Storage Temperature	-20 – 60 °C
Power Supply	100-240 VAC, 50/60 Hz
Interfaces	USB, Serial (RS-232)
Media Width	25.4 – 112 mm
