Toshiba B-FV4 Series User Manual

7. B-FV Setting Tool EO18-33030
7.2 Working with B-FV Setting Tool (V1.0.21)
7-23

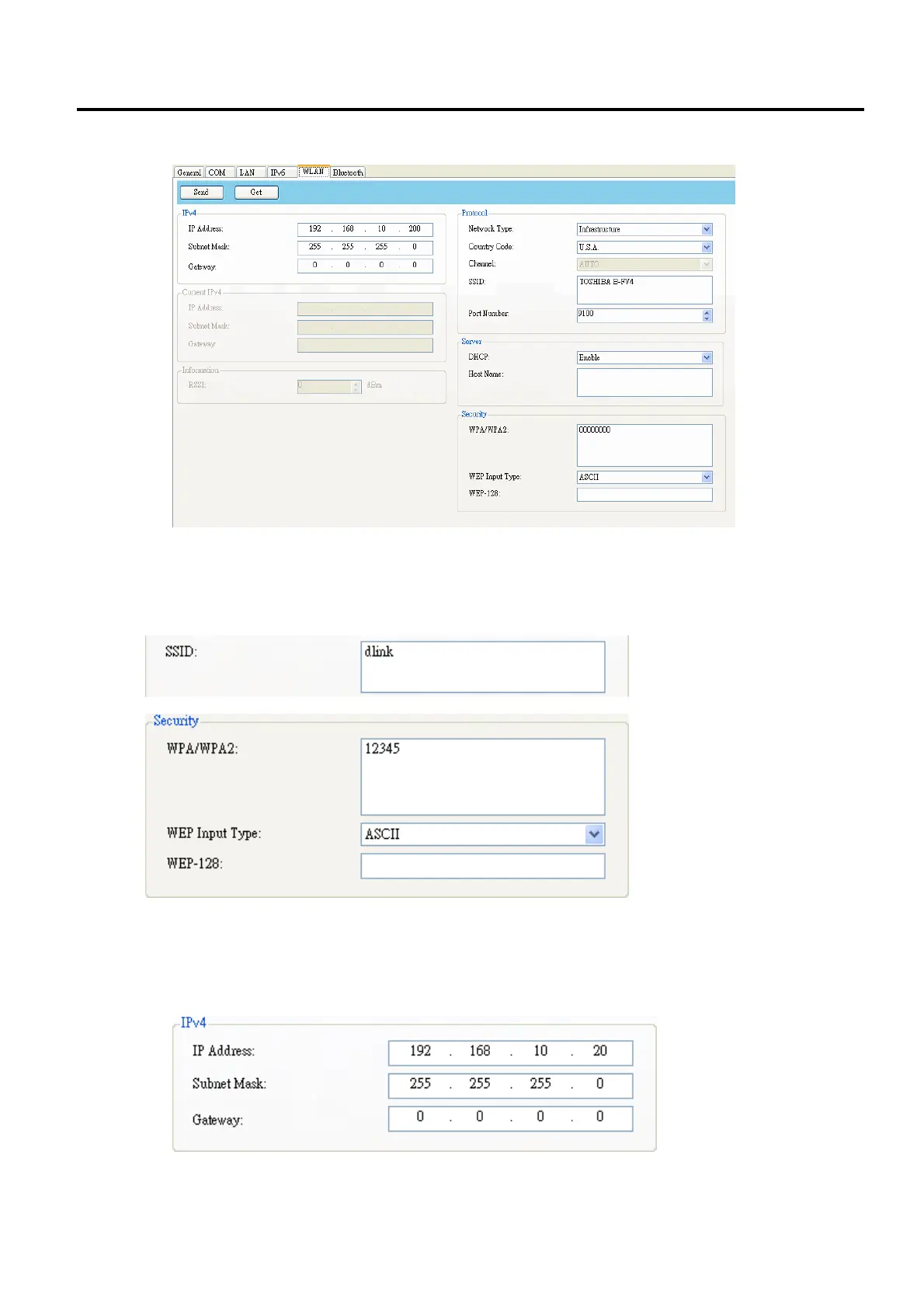

2. In the Navigation pane, click Parameter Setting, and click the WLAN tab.
3. In the SSID box, enter the network name you’ve connected. If your network has a password, in
the WPA/WPA2 box or in the WEP-128 box, enter the password the network you’ve connected,
otherwise ignore it.
4. Do one of the following to configure your IPv4 settings:
∙ If you have a static IP address, fill the IP Address, Subnet Mask and Gateway box under IPv4
according to your network settings, and click Send.

Toshiba B-FV4 Series Specifications

General

Resolution	203 dpi
Print Method	Thermal Transfer / Direct Thermal
2D Codes	Data Matrix, PDF417, QR Code, Maxi Code
Operating Temperature	5 – 40 °C
Storage Temperature	-20 – 60 °C
Power Supply	100-240 VAC, 50/60 Hz
Interfaces	USB, Serial (RS-232)
Media Width	25.4 – 112 mm
