Toshiba B-FV4 Series User Manual

8. UPDATING FIRMWARE EO18-33030
8.1 Updating Firmware in B-FV Setting Tool (V1.0.27 or earlier)
8-4

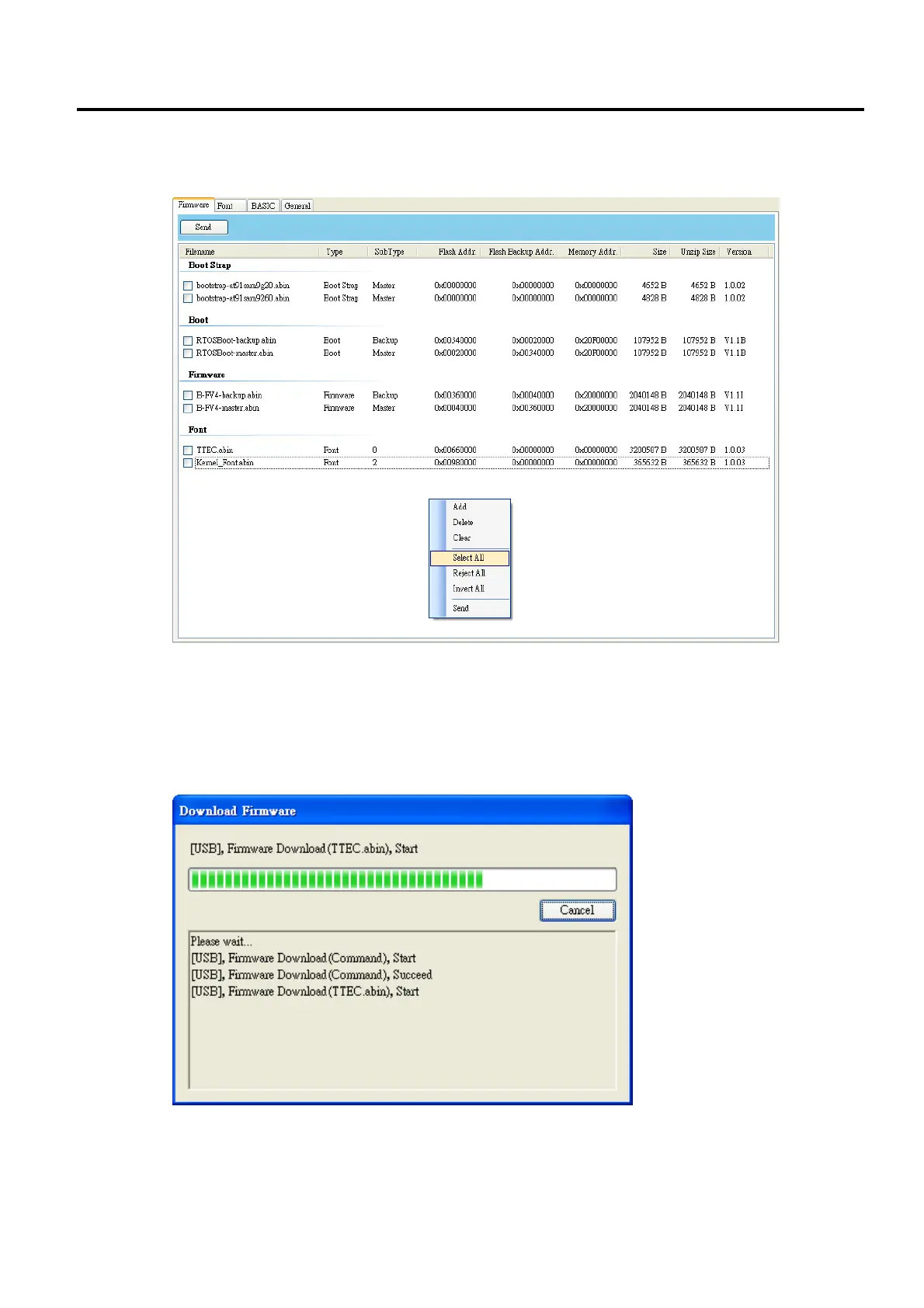

8. If you want to update specific files, select the check boxes of those files; if you want to update all
of the firmware files, right-click in the blank area in the list, and click Select All.
9. Click Send to send the firmware files to your printer. During the transmission LED 1 blinks green.
In the Download Firmware dialog box, the message shows the file your printer is downloading,
and the progress bar indicates the progress of downloading.

Toshiba B-FV4 Series Specifications

General

Resolution	203 dpi
Print Method	Thermal Transfer / Direct Thermal
2D Codes	Data Matrix, PDF417, QR Code, Maxi Code
Operating Temperature	5 – 40 °C
Storage Temperature	-20 – 60 °C
Power Supply	100-240 VAC, 50/60 Hz
Interfaces	USB, Serial (RS-232)
Media Width	25.4 – 112 mm
