Operation0540−1/A1
Winterthur Gas & Diesel Ltd.
2/ 2
5. Piston, Crosshead and
Connecting Rod
Removed
5.1 Problems
D The crosshead or guide shoes are
defective.
D The connecting rod bearing is damaged.
D The crosshead pin or the connecting rod
is defective.
6. Preparation
1) Cut out the injection to the related
cylinder (see 0510−1 paragraph 1).
2) Cut out the VCU (see 0520−1
paragraph 2).
3) If necessary, close the cooling water
supply and the return pipe of the
related cylinder.
7. Procedure
1) Do the procedure given in paragraph 4
above.
2) Remove the top and bottom levers (1)
(see Fig. 2).
3) Remove the screws (5) from the flange
of the pipe (4).
4) Hold the pipe (4) and remove the
nuts (3) and the screws (2).
5) Remove the pipe (4).
6) Install blanks to the oil inlet (6) and the
oil supply pipe (7).
Note: You can operate the engine only at
decreased speed/load. Speak to
the engine manufacturer for data.

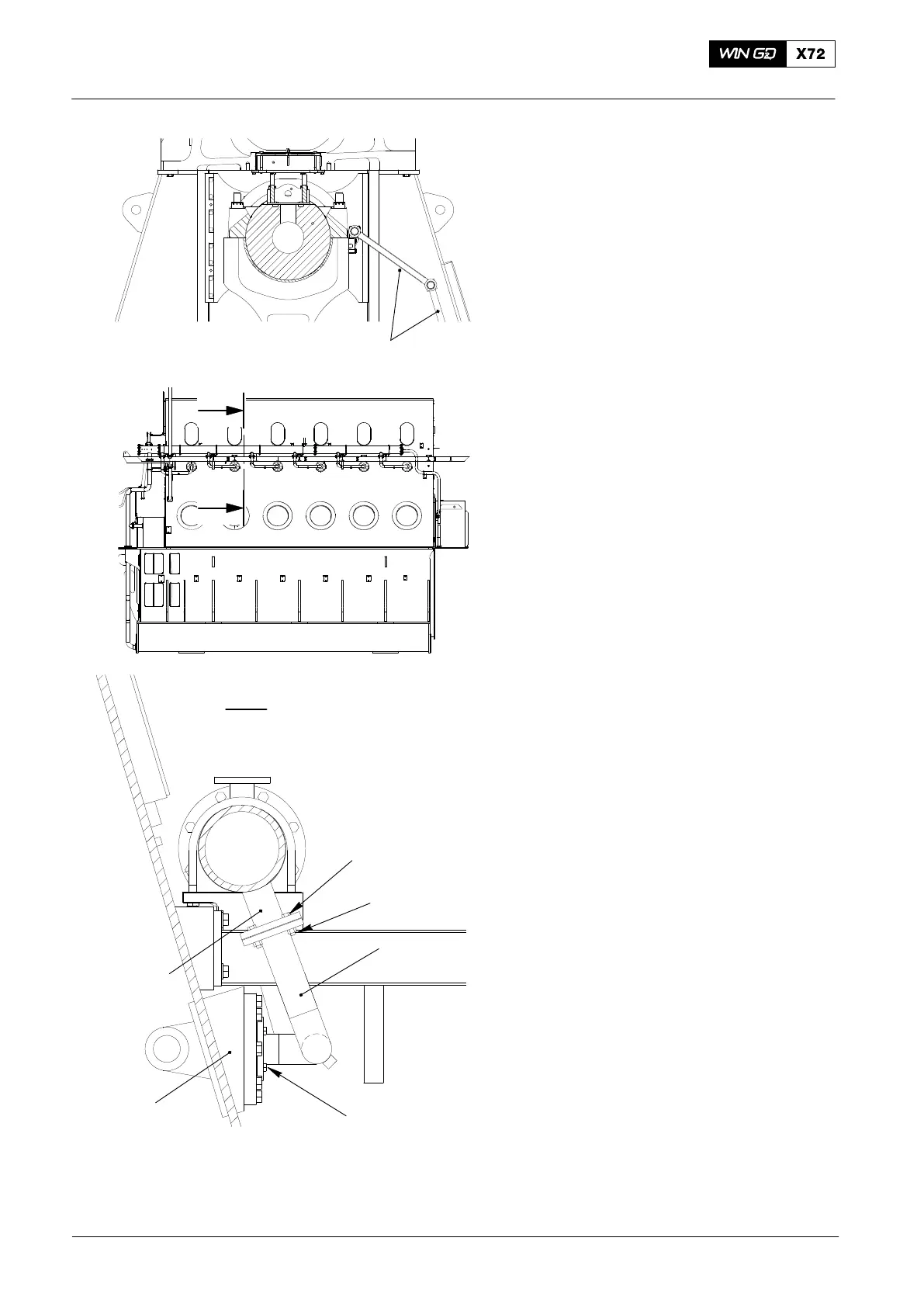

Fig. 2: Tools 9486−01 and 9423−01
2014
WCH02358
I
I
I - I
2
4
6
3
5
7
WCH02358
WCH02356
1
Operation with Running Gear Partially or Fully Removed
