Operation
1903−1/A1
Winterthur Gas & Diesel Ltd.
1/ 2
Tie Rod
1. General
The tie rods (1, Fig. 1) keep the cylinder block (3), column (4) and bedplate (5)
together at four locations around the cylinders.
WCH01211
FOR 6-CYLINDER ENGINES
3
4
5
2
1
1
WCH01211

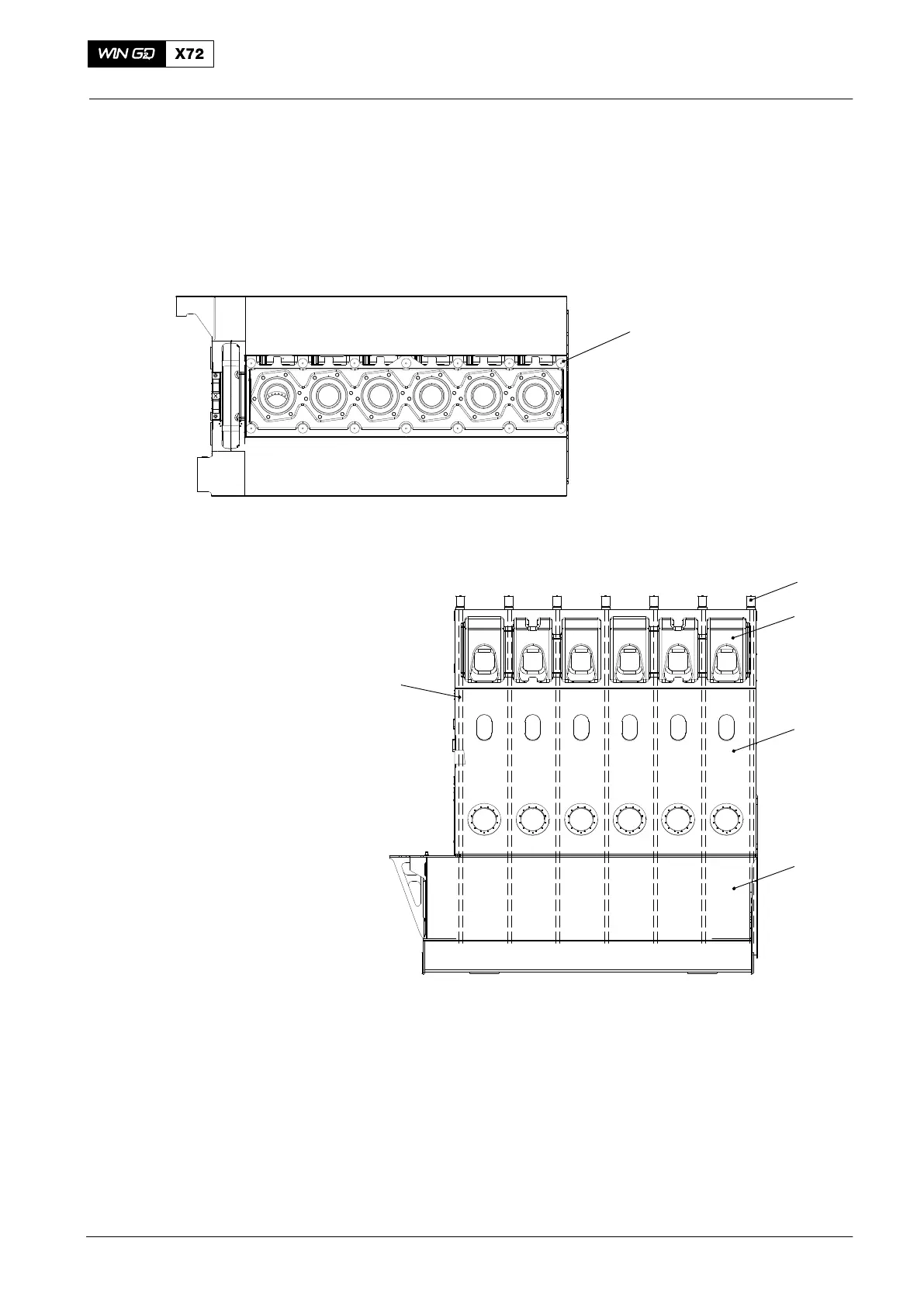

Fig. 1: Tie Rod Configuration and Locations
1 Tie rod 4 Column
2 Protection cover 5 Bedplate
3 Cylinder block
