Phaser 8400/8500/8550/8560 Color Printer Service Manual 8-13
Service Parts Disassembly
9. Disconnect the heater harness and free the harness from its restraint.
10. Lift the Printhead out of its mounting position and place the shaft ends in
the cradle notches near the top of the chassis frame.
11. Disconnect the data cable from the Printhead.

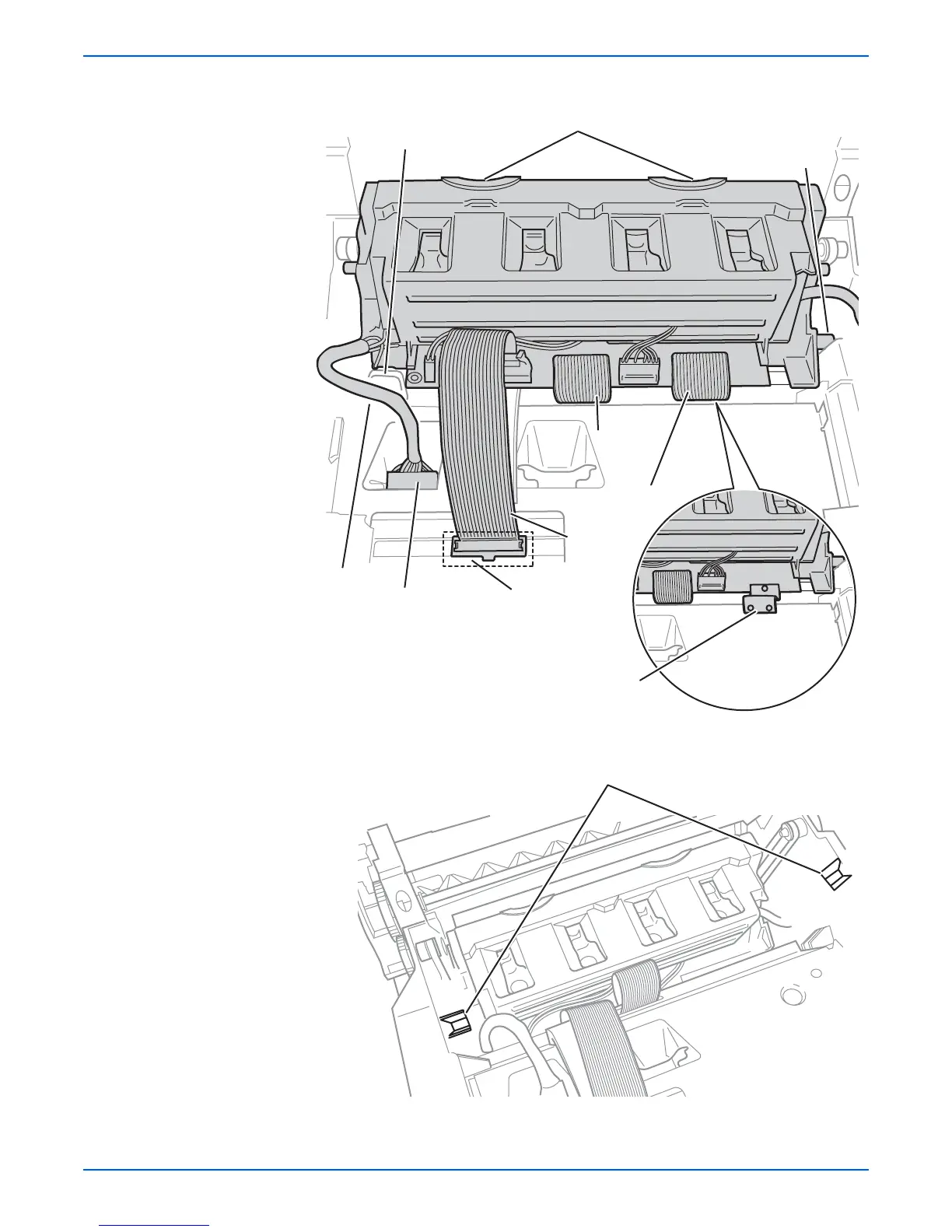

s8500-077
Heater Cable
Data Cable
EMI Tape
(8500/8550/8560)
Cradle Notch
Finger Holes
Cable Restraint
Heater Harness Plug
Flex Cable
Flex Cable (8400 Only)
Ground Strap (8500/8550/8560 Only)
Cradle Notches
s8500-078
To Next Page
