9.1.1 Installation of Main Unit
Version 1.0
Installation/Removal

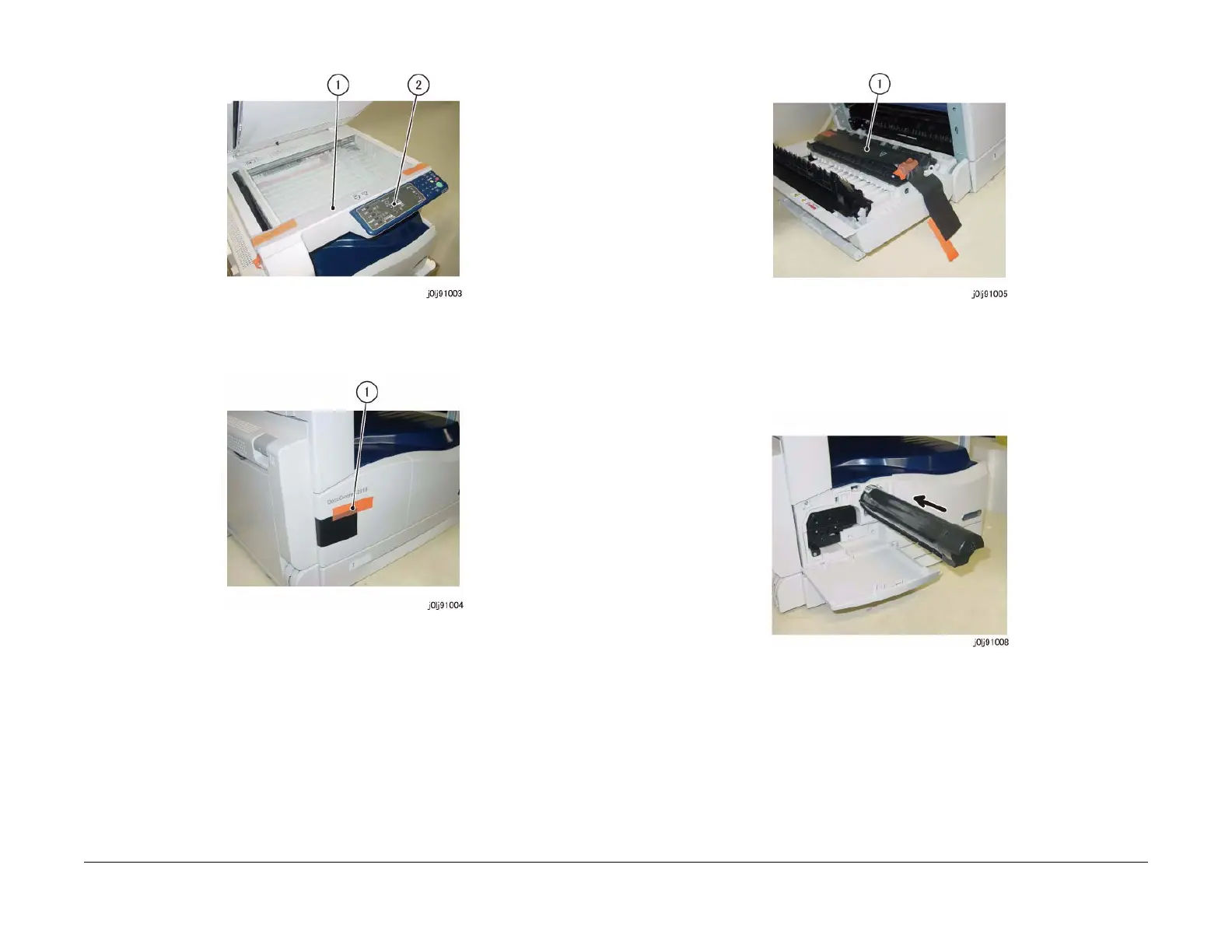

Figure 3 j0lj91003
6. Peel off the tape that secures the BTR protective sheet. (Figure 4)
Figure 4 j0lj91004
7. Open the L/H Cover and remove the BTR protective sheet. (Figure 5)
a. Remove the BTR protective sheet.
Figure 5 j0lj91005
8. Close the L/H Cover.
9. Shake the Toner Cartridge horizontally several times.
10. Open the Front Toner Cover and install the Toner Cartridge. (Figure 6)
Figure 6 j0lj91008
11. Remove the Heat Seal of the Drum Cartridge. (Figure 7)
