06/2014
9-5
WC 5022/5024
9.1.1 Installation of Main Unit
Installation/Removal
Version 1.0

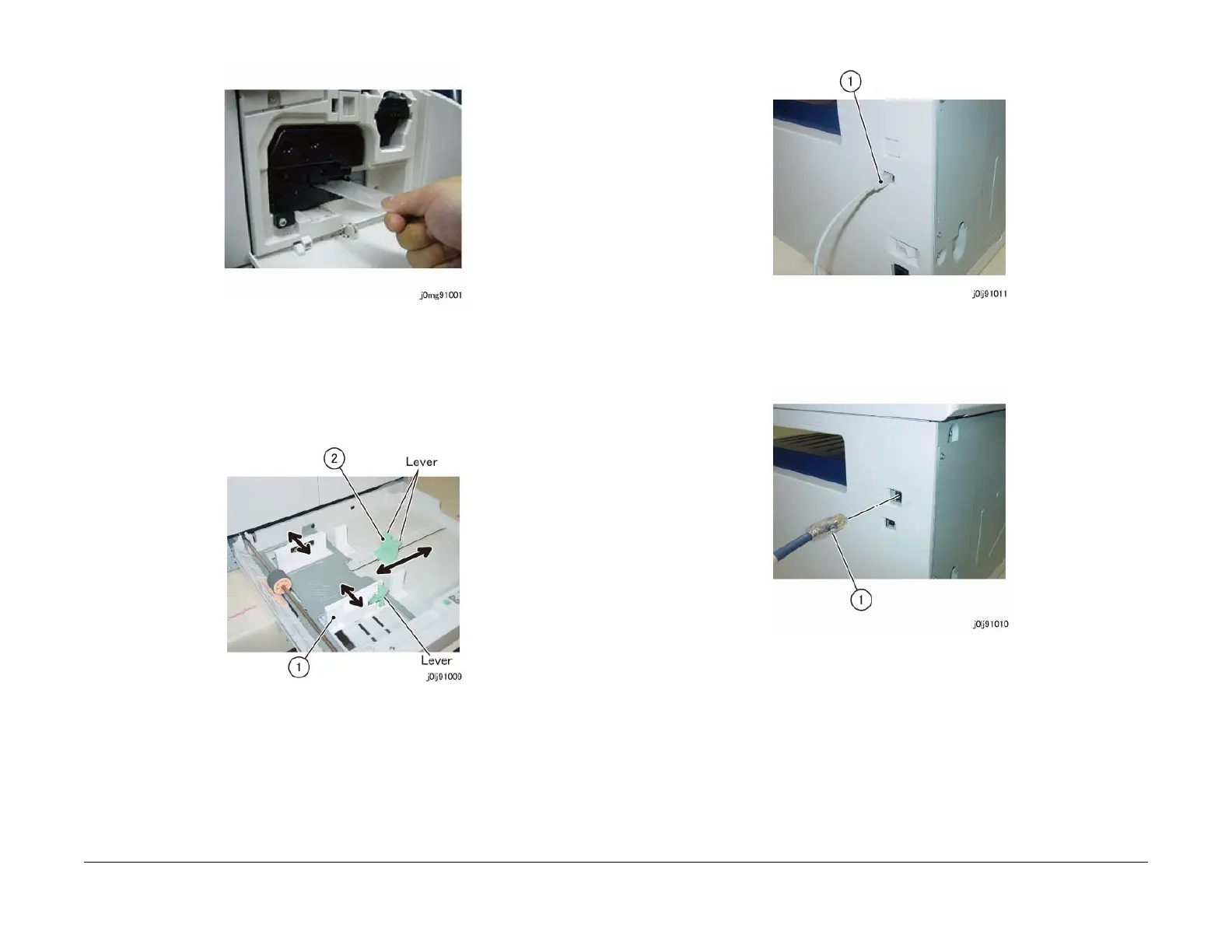

Figure 7 j0mg91001
12. Close the Front Toner Cover.
13. Shift the Side Guide and End Guide according to fit the paper that is going to be loaded in
Tray 1. (Figure 8)
a. Pinch the lever and shift the Side Guide to match the Paper Size.
b. Pinch the lever and shift the End Guide to match the Paper Size.
Figure 8 j0lj91009
14. Load paper into Tray 1.
15. Connect the USB Cable. (Figure 9)
a. Connect the USB Cable.
Figure 9 j0lj91011
16. [CPS Net Model]: Connect the Network Cable (not a bundled item). (Figure 10)
a. Connect the Network Cable.
Figure 10 j0lj91010
17. Remove the Blind Cover at the Right Cover. (Figure 11)
a. Remove the Blind Cover.
To Next Page
