WC 5022/5024
9.1.6 Stand
Version 1.0
Installation/Removal
16. Pull out and remove Tray 1.

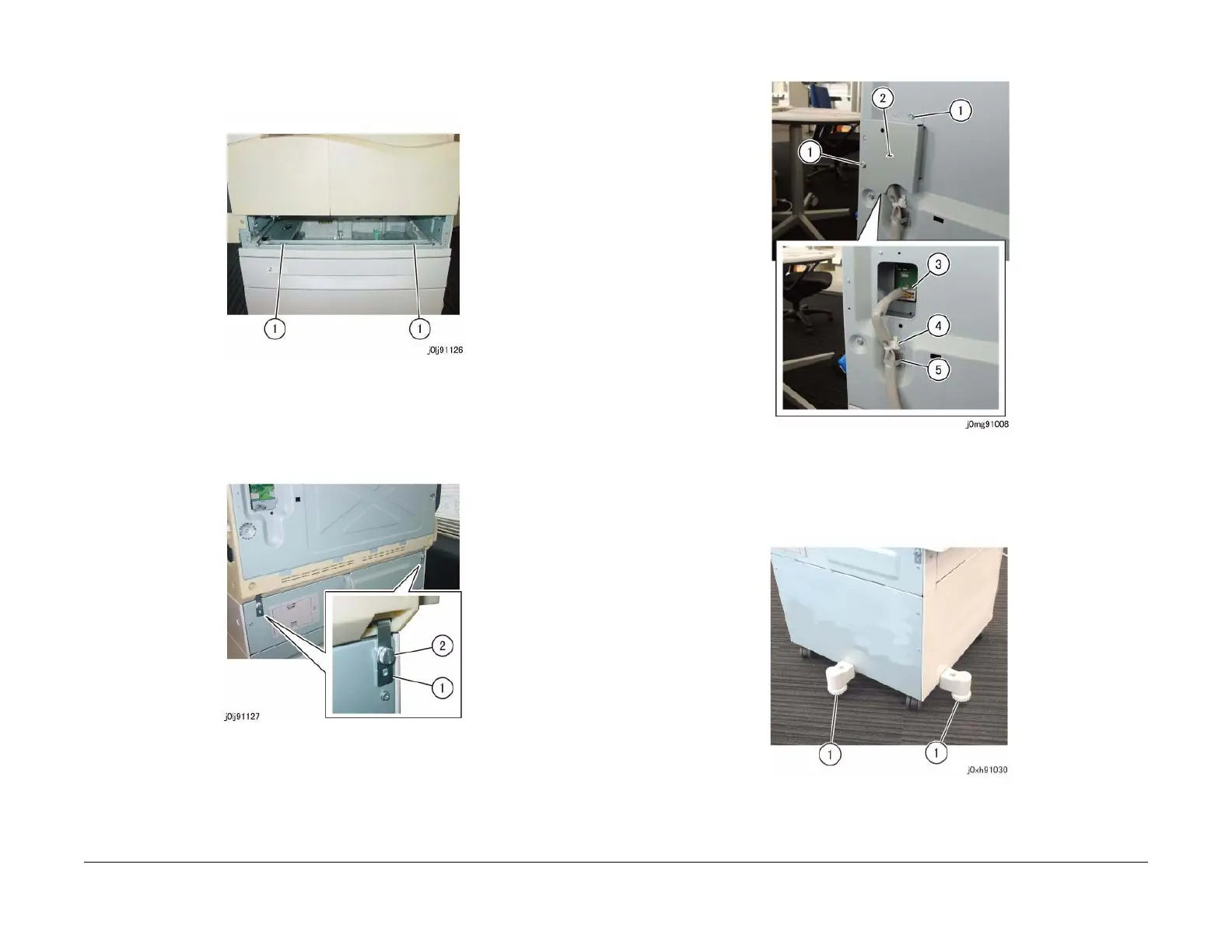

17. Secure the One Tray Module to the IOT by using the Docking Screw (x2). (Figure 9)
a. Secure it by using the Docking Screw (x2).
Figure 9 j0lj91126
18. Reinstall Tray 1.
19. Secure the Docking Bracket (x2) by using the Docking Screw (x2). (Figure 10)
a. Install the Docking Bracket (x2).
b. Secure them by using the Docking Screw (x2).
Figure 10 j0lj91127
20. Connect the connector of the One Tray Module.
a. Remove the screw (x2).
b. Remove the STM Connector Cover.
c. Connect the connector.
d. Install the cable band.
e. Paste the clamp and secure the wire harness by using the clamp. (Figure 11)
Figure 11 j0mg91008
21. Reinstall the STM Connector Cover that was removed in Step 20.
22. Rotate the Feet (x2) to lower them and lock the machine. (Figure 12)
a. Rotate the Feet (x2) to lower them.
Figure 12 j0xh91030
23. Load paper into Tray 2.
24. Paste the Size Label that correspond to the paper that is loaded in Tray 2. (Figure 13)
