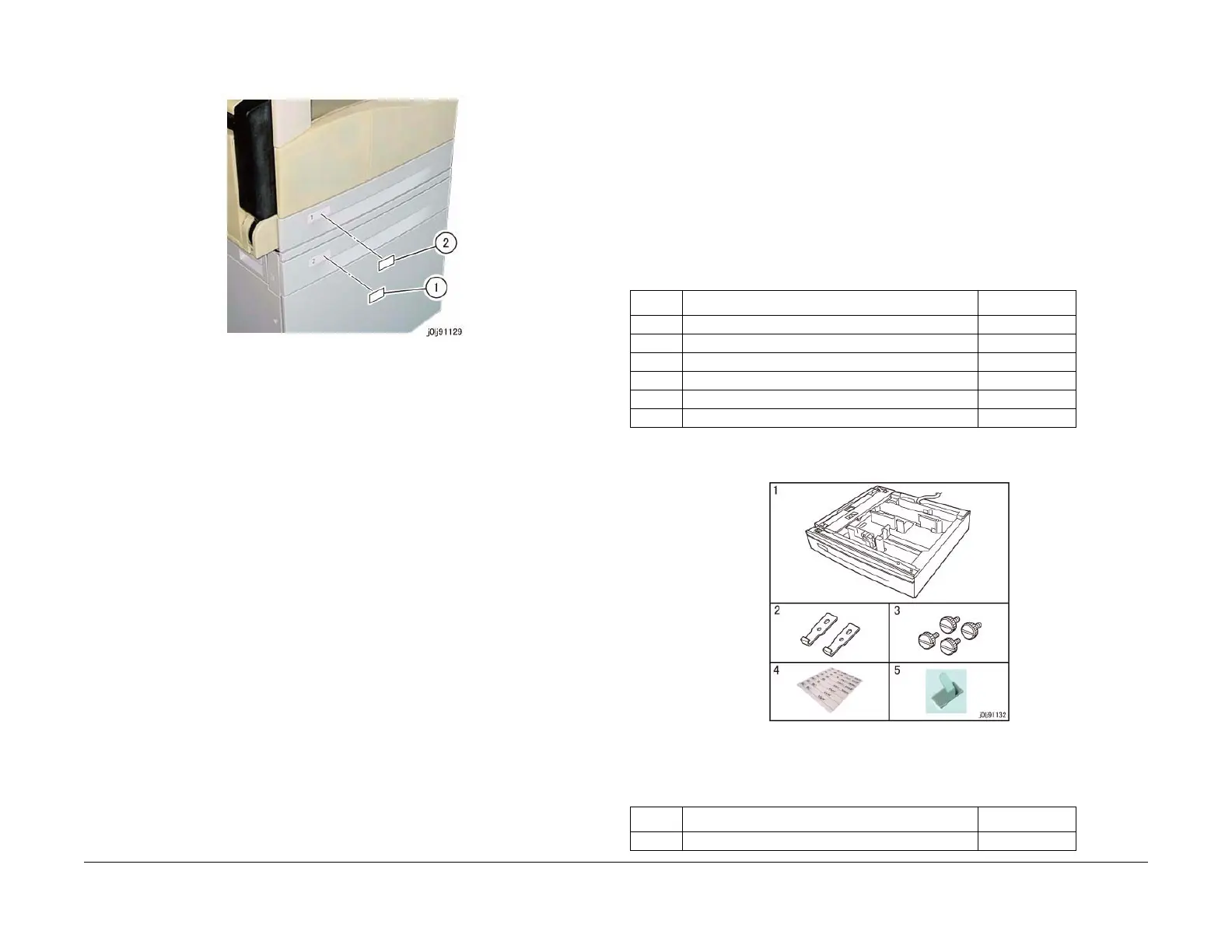

a. Paste the Size Label.
b. Paste the Size Label that correspond to the paper that is loaded in Tray 1.
Figure 13 j0lj91129
25. Reconnect all the cables that are supposed to be connected to the right of the IOT.
26. Plug the power cord into power outlet, and turn ON the power switch.
27. Check the operation of the One Tray Module.
28. Explain to the customer how to operate the One Tray Module where necessary.
9.1.7 Two Tray Module
Product Code
• One Tray Module:
• Two Tray Module:
Installation Procedures
1. Before Installation
• When installing this Kit, the One Tray Module (Product Code: ) is required.
Prepare the Kits and perform the installation in sequence.
2. Check the bundled items.
• One Tray Module (Figure 1)
• There is no illustration for Item 6.
Figure 1 j0lj91132
• Two Tray Module (Figure 2)
Table 1
No Name Qty
1 One Tray Module 1
2 Docking Bracket 2
3 Docking Screw 4
4 Size Label 1
5 Clamp 1
6 Installation Guide 1
Table 2
No Name Qty
1 Two Tray Module 1
