06/2014
9-14
WC 5022/5024
9.1.7 Two Tray Module
Version 1.0
Installation/Removal
• There is no illustration for Item 6.

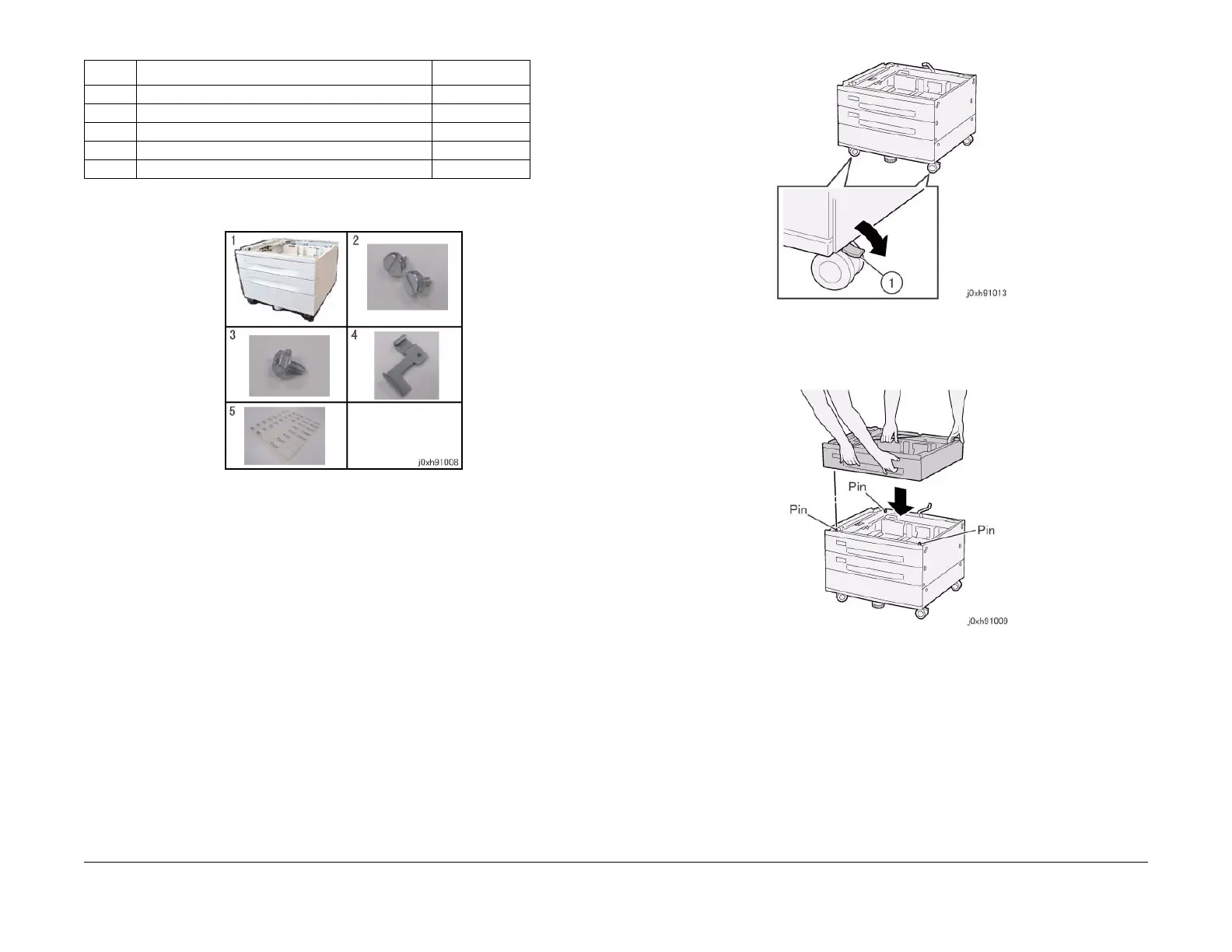

Figure 2 j0xh91008
3. Remove the packaging materials from the One/Two Tray Modules.
4. Turn OFF the power switch and make sure that the screen display turns OFF.
CAUTION
When turning OFF the power switch, check that the "Data" lamp is OFF and that there is
no Job in progress.
5. Unplug the power plug.
WARNING
When maintaining the machine, turn OFF the power switch and unplug the power
plug.
6. Disconnect all cables that are connected to the Control part at the right of the IOT.
7. Lower the Levers to lock the Caster (x2) at the Front of the Two Tray Module. (Figure 3)
a. Lock the Caster (x2).
Figure 3 j0xh91013
8. Align the One Tray Module to the Positioning Pin (x3) of the Two Tray Module and mount
it. (Figure 4)
Figure 4 j0xh91009
9. Pull out and remove the Tray of the One Tray Module.
10. Secure the One Tray Module to the Two Tray Module by using the Docking Screw (x2).
(Figure 5)
a. Secure it by using the Docking Screw (x2).
2 Docking Screw 2
3 Screw (Unused) 1
4 Joint (Unused) 1
5 Tray Size Label 1
6 Installation Guide 1
Table 2
No Name Qty
To Next Page
