9.1.7 Two Tray Module
Installation/Removal
Version 1.0

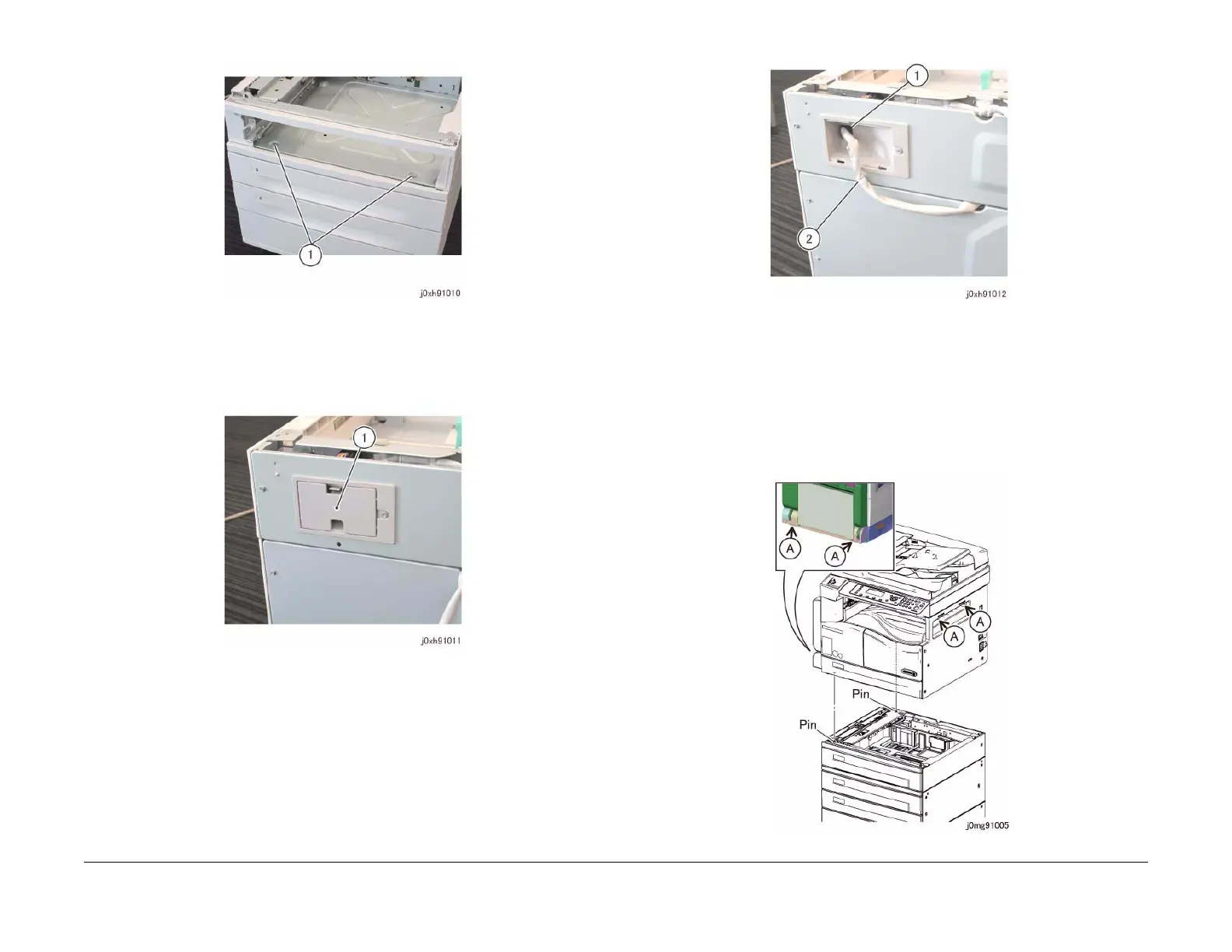

Figure 5 j0xh91010
11. Reinsert the Tray.
12. Remove the Connector Cover of the One Tray Module. (Figure 6)
a. Remove the Connector Cover.
Figure 6 j0xh91011
13. Connect the connector of the Two Tray Module. (Figure 7)
a. Connect the connector.
b. Install the clamp of the wire harness.
Figure 7 j0xh91012
14. Reinstall the Connector Cover.
WARNING
As the IOT is very heavy, make sure you have 3 or more persons (2 at the left and 1
at the right) to perform the mounting.
15. Hold onto the IOT at the indicated positions (A: x4) and align it to the positioning pin (x2)
of the One Tray Module to mount it.
(Figure 8)
Figure 8 j0mg91005
