06/2014
9-17
WC 5022/5024
9.1.8 Fax Kit
Installation/Removal
Version 1.0
23. Set the Side/End Guides in Tray 2/3/4 according to the Paper Size to be used and load
the paper.

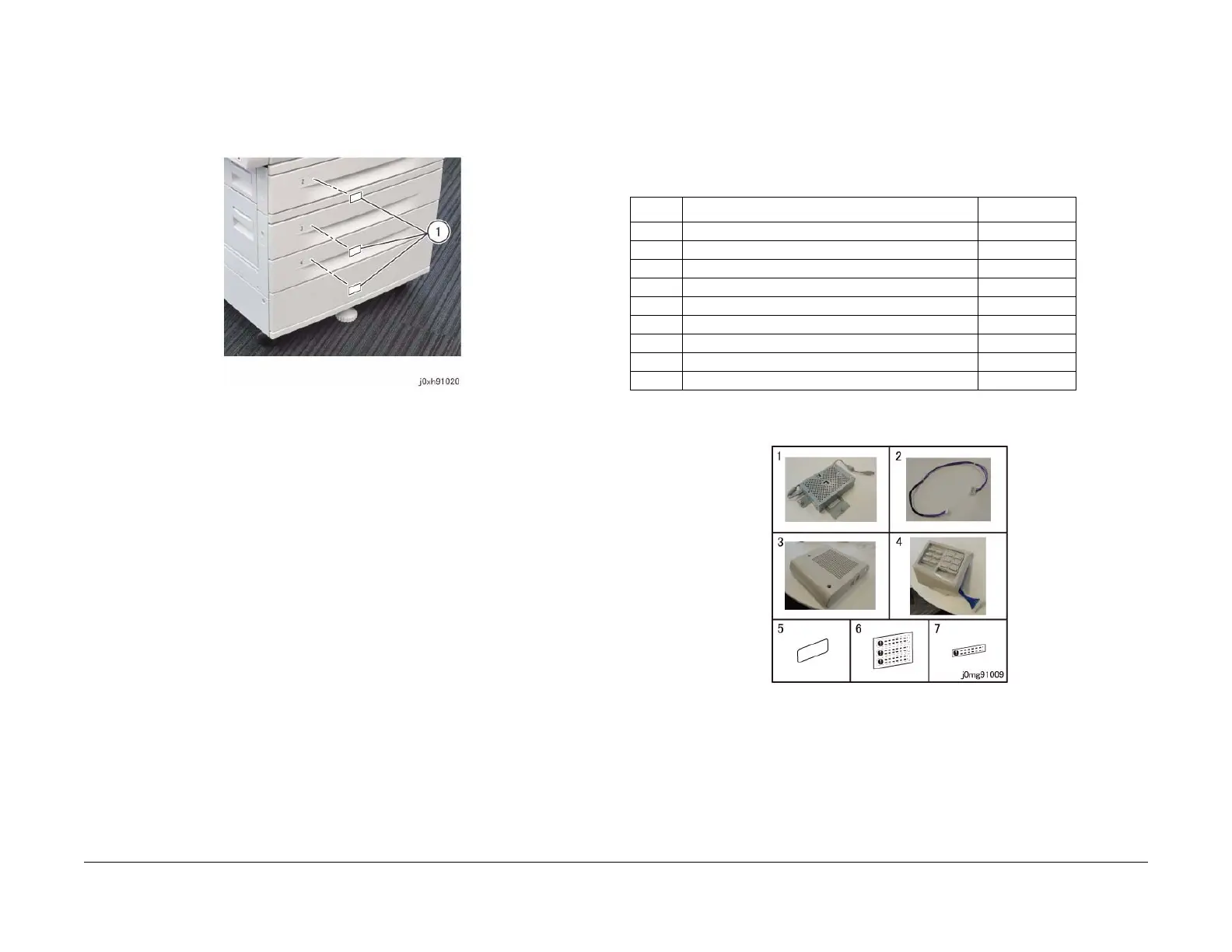

24. Paste the Tray Size Labels on Tray 2/3/4 according to the size of loaded paper. (Figure
13)
a. Paste on the Tray Size Label.
Figure 13 j0xh91020
25. Reconnect all the cables that are supposed to be connected to the right of the IOT.
26. Plug in the Power Plug and turn ON the power.
27. Check the operation of the One/Two Tray Module.
28. Explain to the customer how to operate the One/Two Tray Module as necessary.
9.1.8 Fax Kit
Product Code
• : ENG
Installation Procedures
1. Check the bundled items. (Figure 1)
• There is no illustration for Item 8,9.
Figure 1 j0mg91009
2. Turn OFF the power switch and make sure that the screen display turns OFF.
CAUTION
When turning OFF the power switch, check that the "Data" lamp is OFF and that there is
no Job in progress.
3. Unplug the power plug.
Table 1
No Name Qty
1Fax Box 1
2 Wire Harness 1
3Fax Box Cover 1
4 One Touch Panel 1
5 Label (Unused) 1
6 Error Label-1 1
7 Error Label-2 1
8 Instruction 1
9 Screw 2
To Next Page
