5-47
Order
Job
/
Part
Q’ty
Remarks
1
2
3
4
5
6
7
8
9
10
11
12

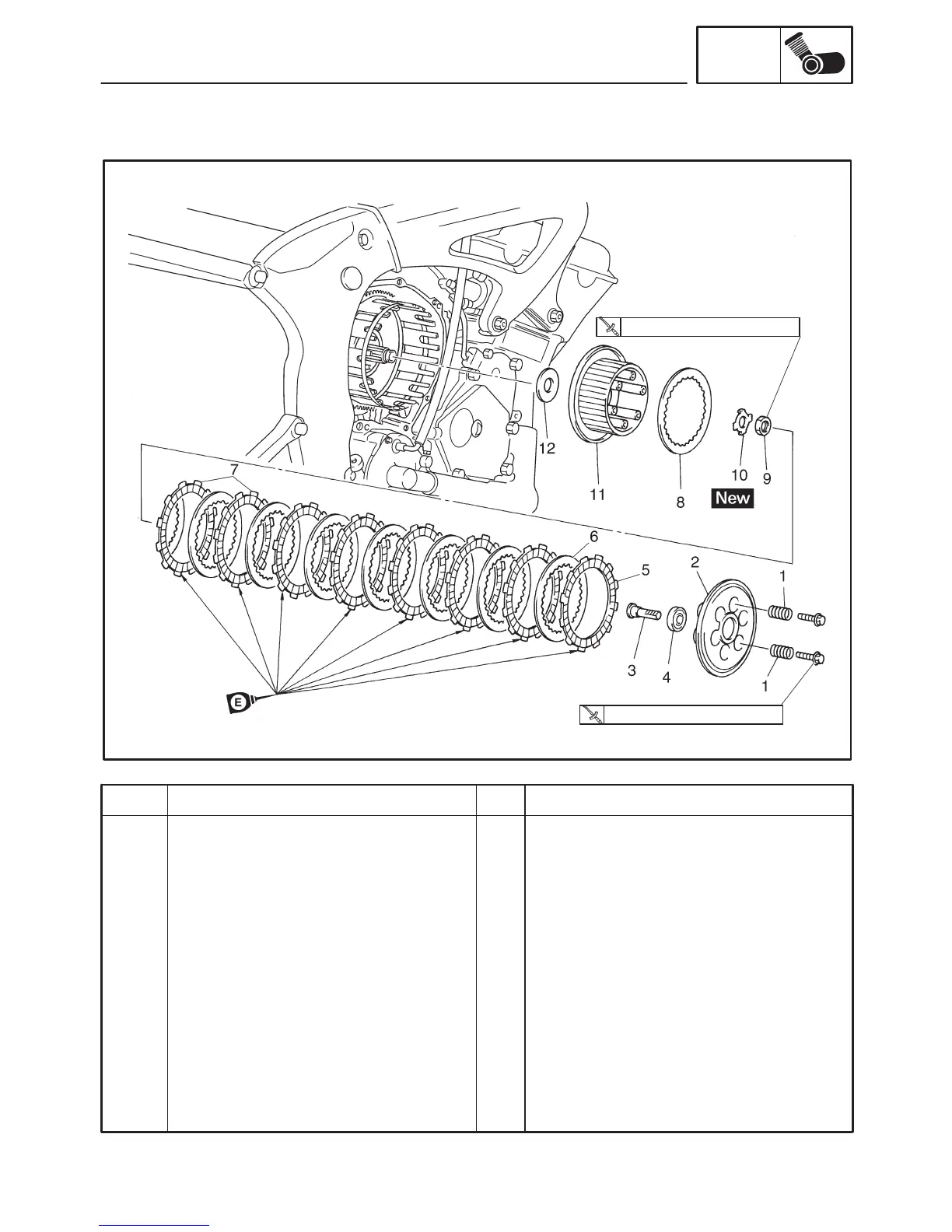

Removing the clutch
Compression spring
Pressure plate
Pull rod
Bearing
Friction plate (Brown)
Clutch plate (t=2.0 mm, 0.08 in)
Friction plate (Purple)
Clutch plate (t=2.3 mm, 0.09 in)
Clutch boss nut
Lock plate
Clutch boss
Thrust plate
6
1
1
1
6
7
2
1
1
1
1
1
Remove the parts in the order listed.
For installation, reverse the removal
procedure.
70 Nm (7.0 m
S
kg, 51 ft
S
lb)
8 Nm (0.8 m
S
kg, 5.8 ft
S
lb)
CLUTCH
ENG
EAS00274
CLUTCH
Manuals by Motomatrix / www.motomatrix.co.uk / The Solution For Lost Motorcycle Coded Keys
email: info@motomatrix.co.uk
375
