3-19
ADJUSTING THE ENGINE IDLING SPEED/
ADJUSTING THE THROTTLE CABLE FREE PLAY
CHK
ADJ
a
b
NOTE:
4. Adjust:
S engine idling speed

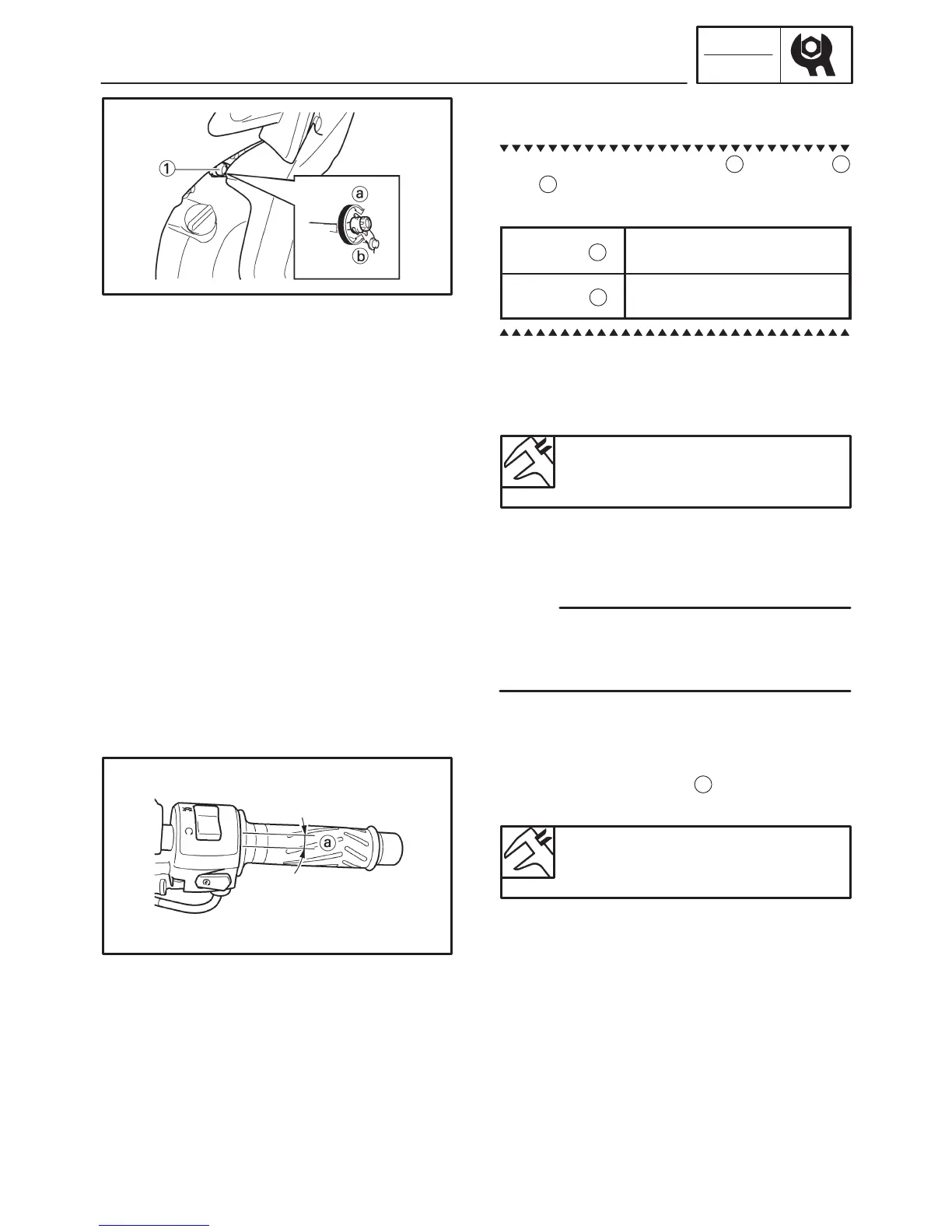

a. Turn the throttle stop screw
1
in direction
a
or
b
until the specified engine idling speed is
obtained.
Direction
Engine idling speed is
increased.
Direction
Engine idling speed is
decreased.
5. Adjust:
S throttle cable free play
Refer to “ADJUSTING THE THROTTLE
CABLE FREE PLAY”.
Throttle cable free play (at the
flange of the throttle grip)
6 X 8 mm (0.24 X 0.31 in)
EAS00056
ADJUSTING THE THROTTLE CABLE FREE
PLAY
Prior to adjusting the throttle cable free play, the
engine idling speed should be adjusted proper-
ly.
1. Check:
S throttle cable free play
a
Out of specification ! Adjust.
Throttle cable free play (at the
flange of the throttle grip)
6 X 8 mm (0.24 X 0.31 in)
2. Remove:
S rider seat
Refer to “SEATS”.
S fuel tank
Refer to “FUEL TANK”.
S air filter case
Refer to “AIR FILTER CASE”.
S left frame side cover
Refer to “COWLINGS”.
