4-73
Order Job/Part Q’ty Remarks
1
2
3
4
5
6
7
8
9

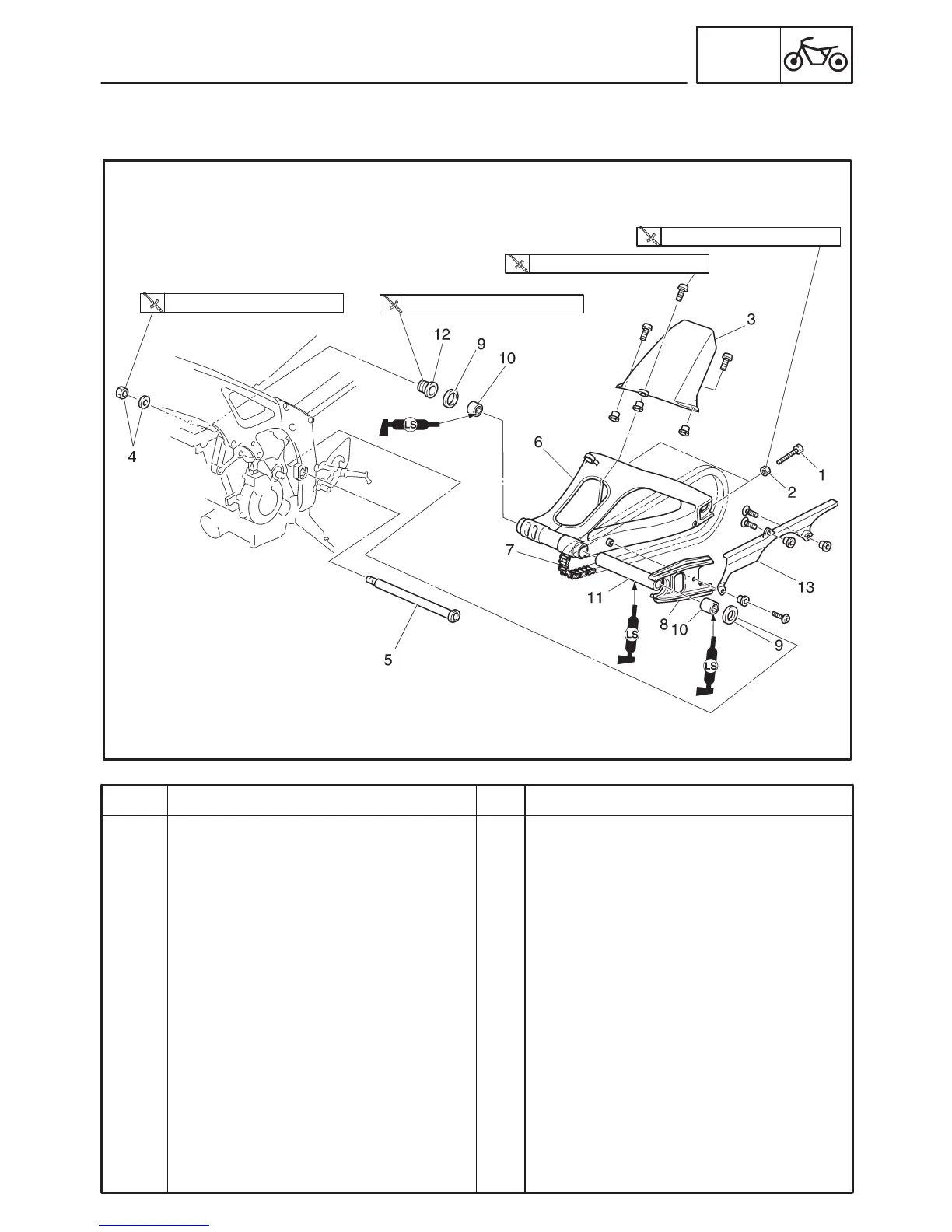

Removing the swingarm and drive
chain
Rear wheel
Rear shock absorber assembly
Relay arms and connecting rod
Drive sprocket cover
Adjusting bolt
Locknut
Rear fender
Pivot shaft nut/washer
Pivot shaft
Swingarm
Drive chain
Drive chain guide
Dust cover
2
2
1
1/1
1
1
1
1
2
Remove the parts in the order listed.
Refer to “REAR WHEEL AND BRAKE
DISC”.
Refer to “REAR SHOCK ABSORBER
ASSEMBLY”.
Refer to “REAR SHOCK ABSORBER
ASSEMBLY”.
Refer to “ENGINE” in chapter 5.
95 Nm (9.5 mSkg, 69 ftSlb)
6 Nm (0.6 mSkg, 4.3 ftSlb)
7 Nm (0.7 mSkg, 5.1 ftSlb)
16 Nm (1.6 mSkg, 12 ftSlb)
SWINGARM AND DRIVE CHAIN
CHAS
EAS00700
SWINGARM AND DRIVE CHAIN
