4-79
SWINGARM AND DRIVE CHAIN
CHAS
6 Nm (0.6 mSkg, 4.3 ftSlb)
95 Nm (9.5 mSkg, 69 ftSlb)
NOTE:
44 Nm (4.4 mSkg, 32 ftSlb)
44 Nm (4.4 mSkg, 32 ftSlb)
NOTE:
EAS00711

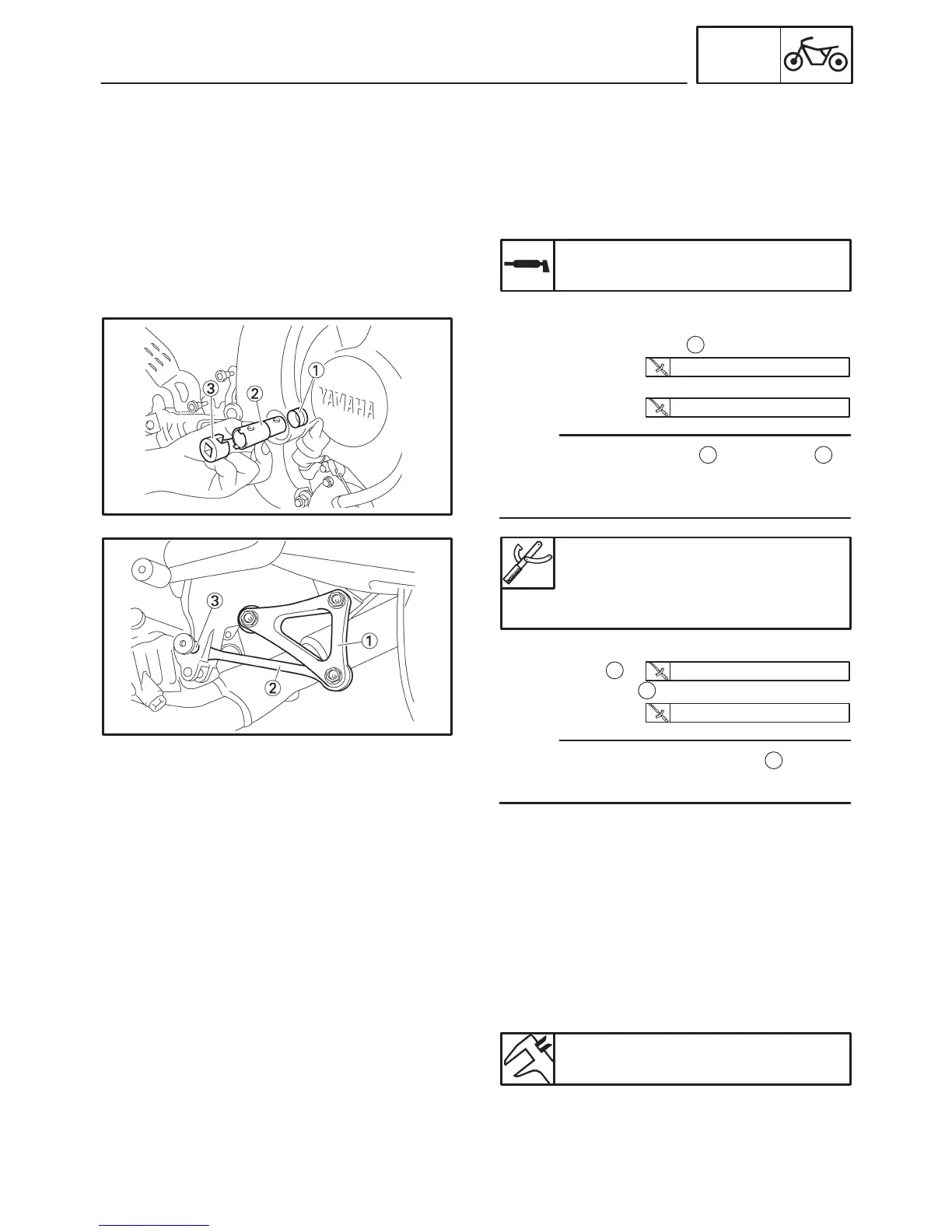

INSTALLING THE SWINGARM
1. Lubricate:
S bearings
S spacers
S dust covers
S pivot shaft
Recommended lubricant
Lithium-soap-based grease
2. Install:
S pivot shaft adjust bolt
1
S swingarm
S pivot shaft
Use the pivot shaft wrench
2
and adapter
3
to
tighten the pivot adjust bolt to specification
torque.
Pivot shaft wrench:
90890-01471, YM-01471
Pivot shaft wrench adapter
90890-01476
3. Install:
S relay arms
1
S connecting rod
2
Install the connecting rod front bolt
3
from the
left.
4. Install:
S rear shock absorber assembly
S rear wheel
Refer to “INSTALLING THE REAR SHOCK
ABSORBER ASSEMBLY” and “INSTAL-
LING THE REAR WHEEL”.
5. Adjust:
S drive chain slack
Refer to “ADJUSTING THE DRIVE CHAIN
SLACK” in chapter 3.
Drive chain slack
35 X 45 mm (1.38 X 1.77 in)
To Next Page
