4-12
REAR WHEEL AND BRAKE DISC
CHAS
WARNING
NOTE:
NOTE:
NOTE:
EAS00561

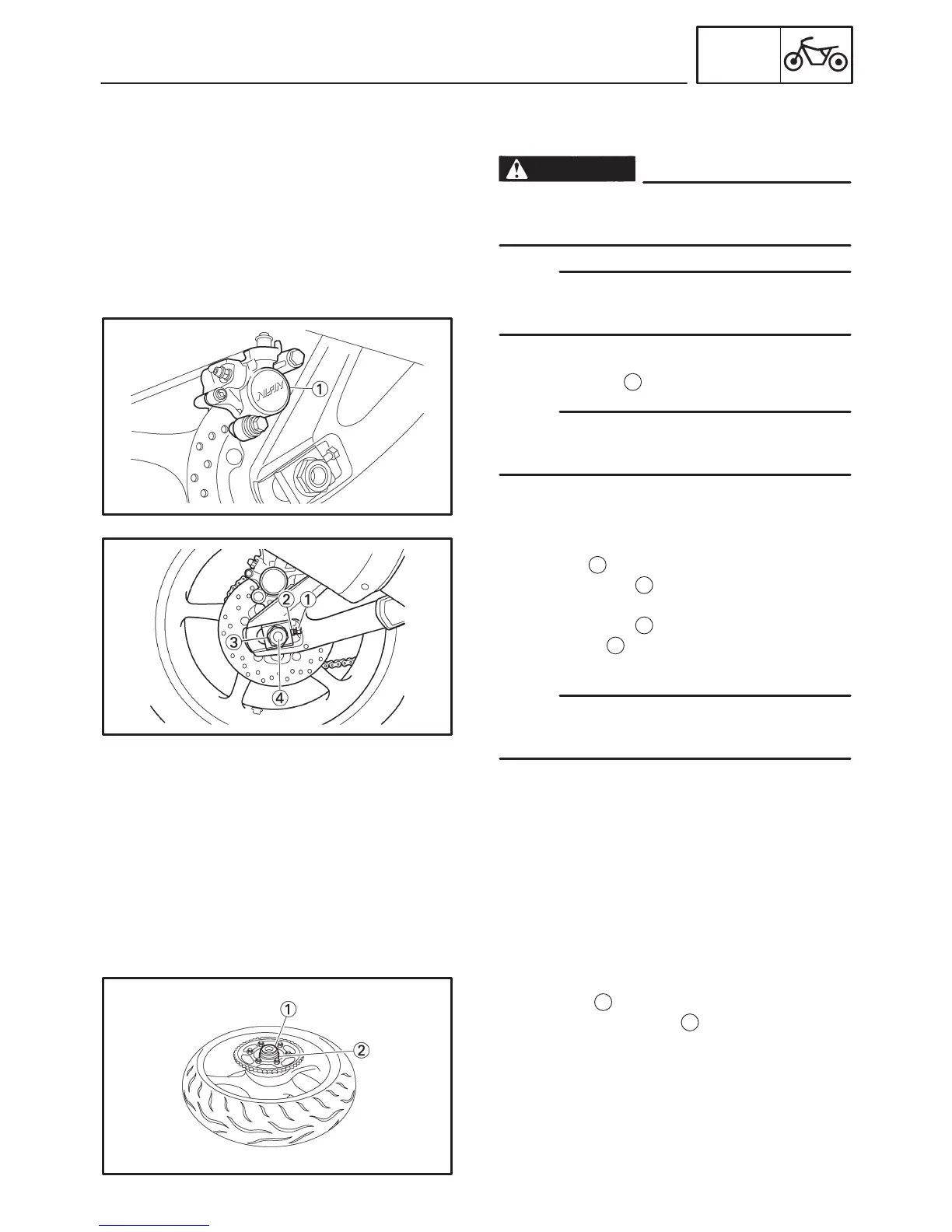

REMOVING THE REAR WHEEL
1. Stand the motorcycle on a level surface.
Securely support the motorcycle so that
there is no danger of it falling over.
Place the motorcycle on a suitable stand so that
the rear wheel is elevated.
2. Remove:
S brake caliper
1
Do not depress the brake pedal when removing
the brake caliper.
3. Loosen:
S locknuts
1
(left and right)
S adjusting bolts
2
(left and right)
4. Remove:
S wheel axle nut
3
S wheel axle
4
S rear wheel
Push the rear wheel forward and remove the
drive chain from the rear wheel sprocket.
5. Remove:
S left collar
1
S rear wheel drive hub
2
S rear wheel drive hub damper
S right collar
To Next Page
