CHECKING THE FRONT AND REAR BRAKE PADSā/
CHECKING THE FRONT AND REAR BRAKE HOSES
CHK
ADJ
EAS00122

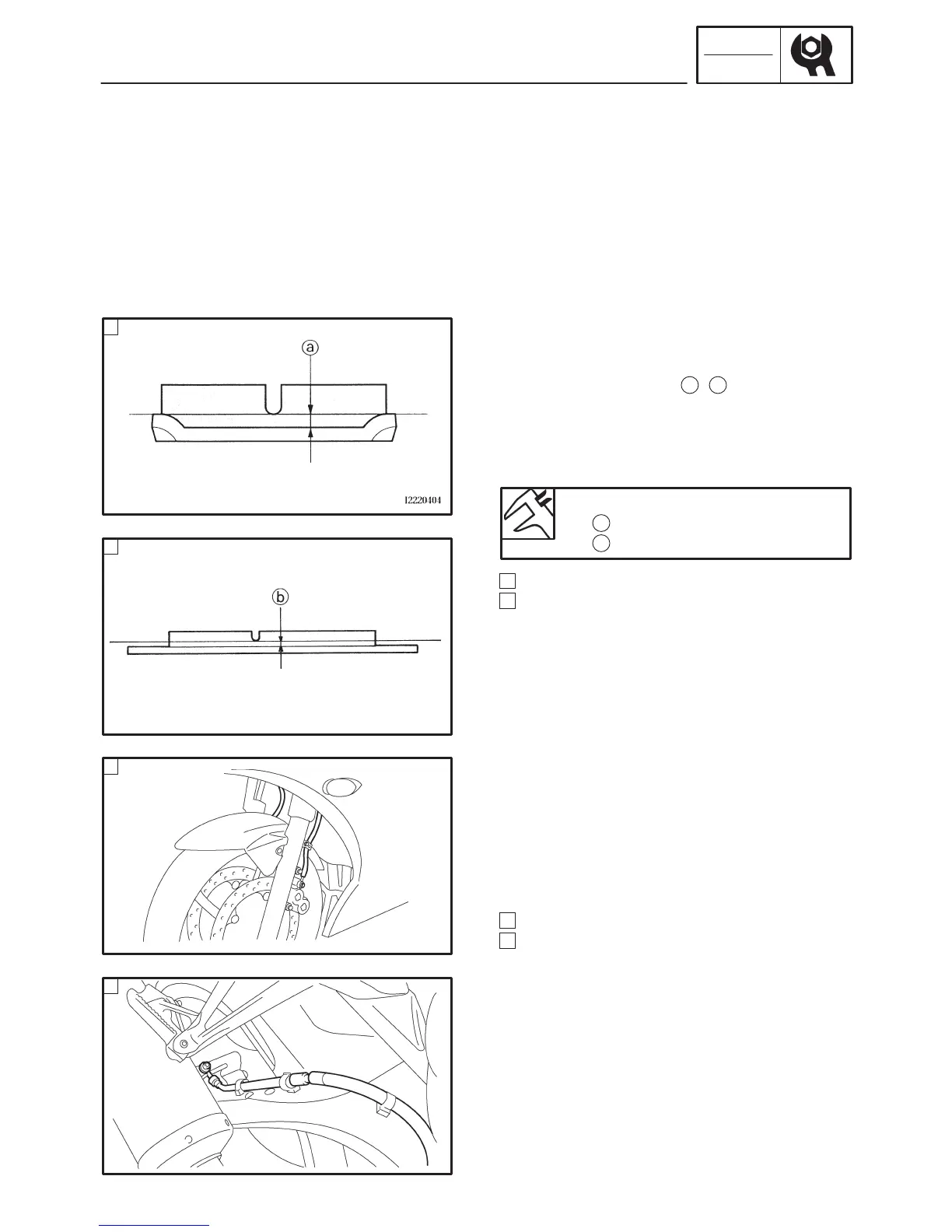

CHECKING THE FRONT AND REAR BRAKE
PADS
The following procedure applies to all of the
brake pads.
1. Operate the brake.
2. Check:
S front brake pad
S rear brake pad
Brake pad wear limit
a
,
b
Wear limit reached ! Replace the brake
pads as a set.
Refer to “FRONT AND REAR BRAKES” in
chapter 7.
Brake pad wear limit
a
0.5 mm (0.02 in.)
b
1.0 mm (0.04 in.)
A
Front brake
B
Rear brake
EAS00131
CHECKING THE FRONT AND REAR BRAKE
HOSES
The following procedure applies to all of the
brake hoses and brake hose clamps.
1. Check:
S brake hose
Cracks/damage/wear ! Replace.
A
Front
B
Rear
2. Check:
S brake hose clamp
Loose ! Tighten the clamp bolt.
3. Hold the motorcycle upright and apply the
brake several times.
4. Check:
S brake hose
Brake fluid leakage ! Replace the damaged
hose.
Refer to “FRONT AND REAR BRAKES” in
chapter 4.
