5-66
Order
Job
/
Part
Q’ty
Remarks
1
2
3
4
5
6
7
8
9
10

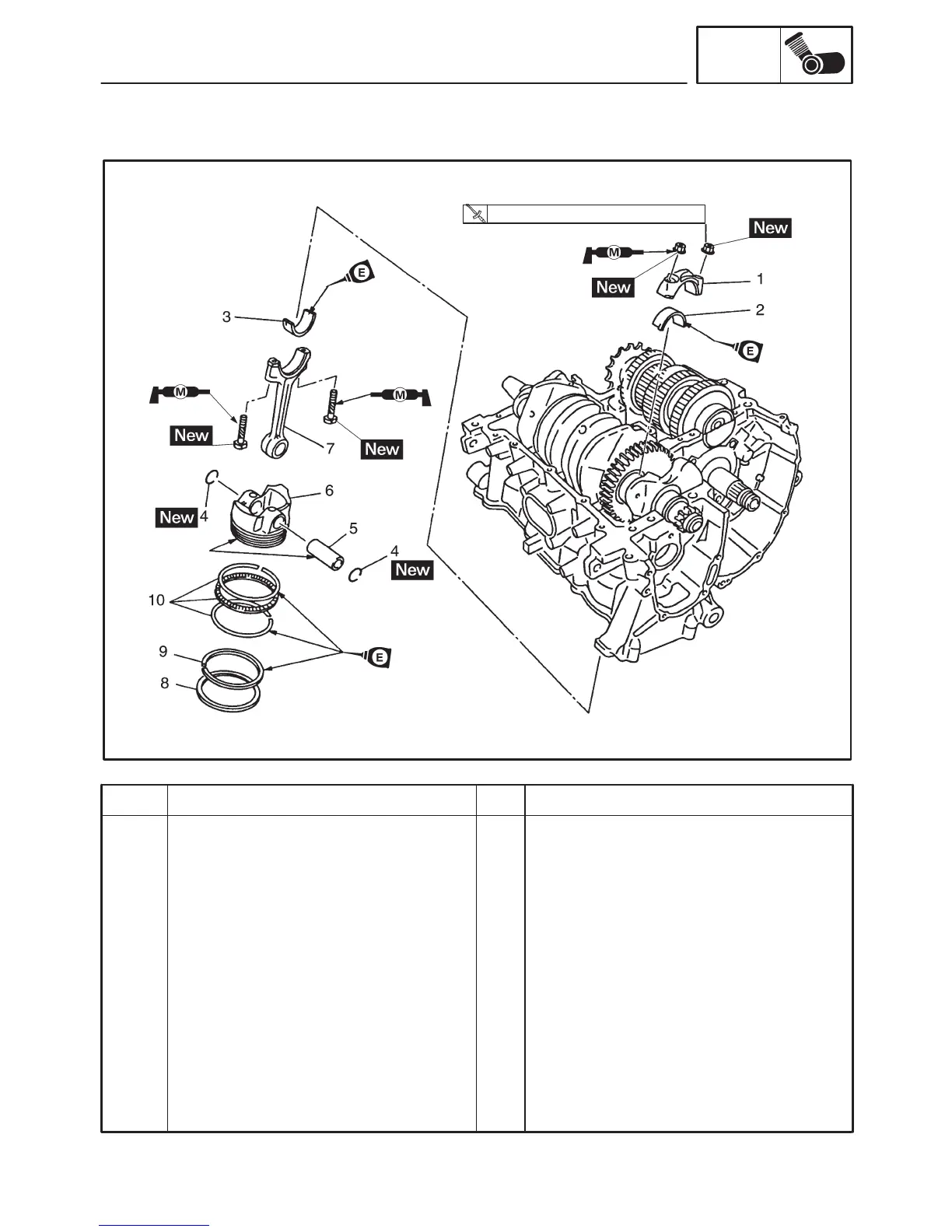

Removing the connecting rods and
pistons
Lower crankcase
Connecting rod cap
Big end lower bearing
Big end upper bearing
Piston pin clip
Piston pin
Piston
Connecting rod
T
op ring
2nd ring
Oil ring
4
4
4
8
4
4
4
4
4
4
Remove the parts in the order listed.
Refer to “CRANKCASE”.
For installation, reverse the removal
procedure.
15 Nm (1.5 m
S
kg, 1
1 ft
S
lb) +150
_
CONNECTING RODS AND PIST
ONS
ENG
EAS00252
CONNECTING RODS AND PISTONS
Manuals by Motomatrix / www.motomatrix.co.uk / The Solution For Lost Motorcycle Coded Keys
email: info@motomatrix.co.uk
394
