CHAS
33
EAS00647

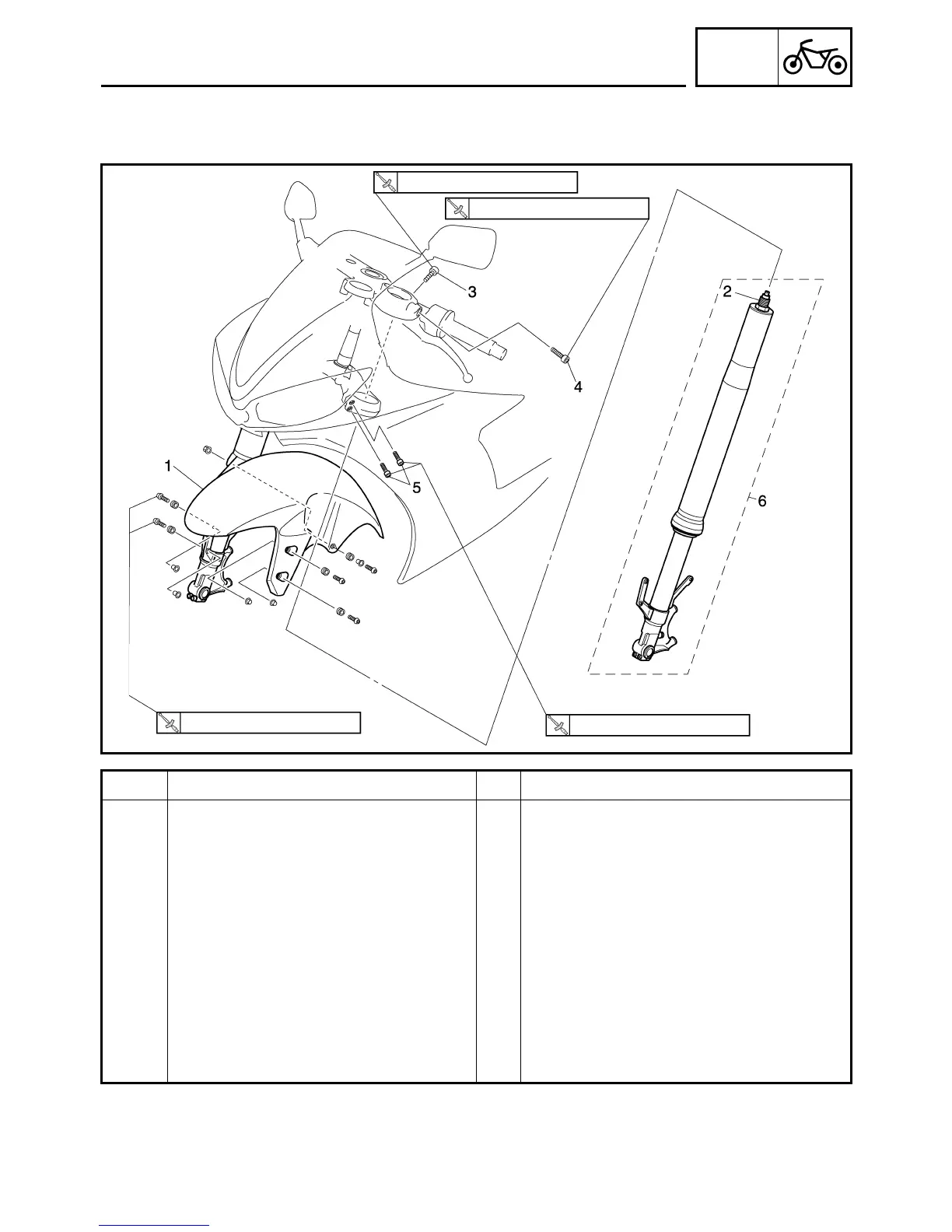

FRONT FORK
FRONT FORK LEGS
Order Job / Part Q’ty Remarks
Removin
g the front fork legs Remove the parts in the order listed.
Front wheel Refer to “FRONT WHEEL AND BRAKE
DISCS”.
Front brake calipers Refer to “FRONT AND REAR BRAKES”.
Front cowling inner panels Refer to “COWLINGS” in chapter 3.
1 Front fender 1
2 Cap bolt 1 Loosen.
3 Handlebar pinch bolt 1 Loosen.
4 Upper bracket pinch bolt 1 Loosen.
5 Under bracket pinch bolt 2 Loosen.
6 Front fork leg 1
For installation, reverse the removal
procedure.
6 Nm (0.6 m•kg, 4.3 ft•lb)
32 Nm (3.2 m•kg, 23 ft•lb)
26 Nm (2.6 m•kg, 19 ft•lb)
23 Nm (2.3 m•kg, 17 ft•lb)
FRONT FORK
To Next Page
