EAS00648
Order Job / Part Q’ty Remarks

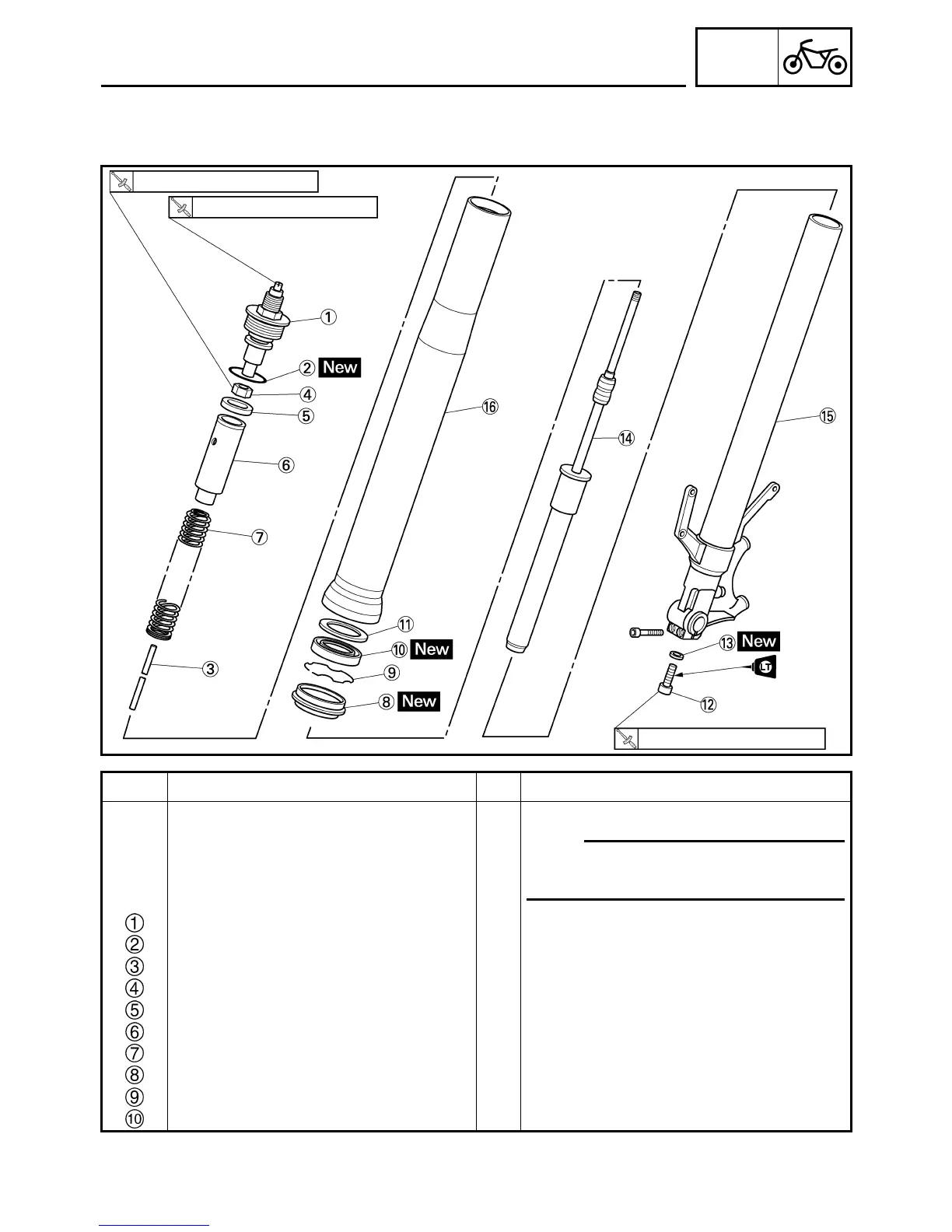

Disassembling the front fork legs Disassemble the parts in the order listed.
N
TE:
The following the procedure applies to
both of the front fork legs.
Cap bolt 1
O-ring 1
Damper adjusting rod 1
Nut 1
Washer 1
Spacer 1
Fork spring 1
Dust seal 1
Oil seal clip 1
Oil seal 1
23 Nm (2.3 m•kg, 17 ft•lb)
15 Nm (1.5 m•kg, 11 ft•lb)
23 Nm (2.3 m•kg, 17 ft•lb)
FRONT FORK
To Next Page
