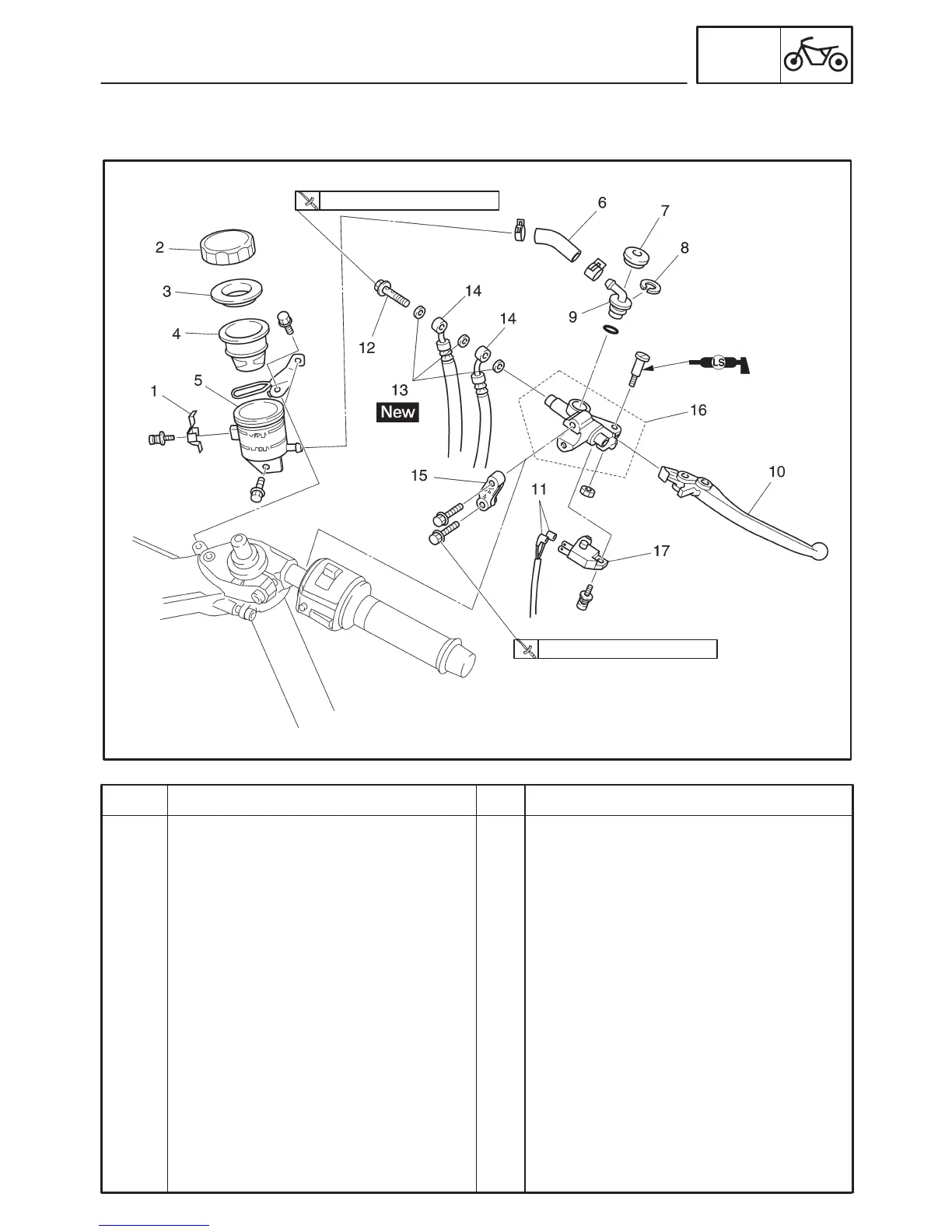

Yamaha YZF-R6T - Front Brake Master Cylinder

4-23
Order Job/Part Q’ty Remarks
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Removing the front brake master
cylinder
Brake fluid
Stopper
Brake fluid reservoir cap
Brake fluid reservoir diaphragm holder
Brake fluid reservoir diaphragm
Brake fluid reservoir tank
Brake fluid reservoir hose
Dust cover
Circlip
Hose joint
Brake lever
Front brake switch connector
Union bolt
Copper washer
Brake hose
1
1
1
1
1
1
1
1
1
1
2
1
3
2
Remove the parts in the order listed.
Drain.
Refer to “CHANGING THE BRAKE
FLUID” in chapter 3.
Disconnect.
30 Nm (3.0 mSkg, 22 ftSlb)
13 Nm (1.3 mSkg, 9.4 ftSlb)
FRONT AND REAR BRAKES
CHAS
EAS00584
FRONT BRAKE MASTER CYLINDER
