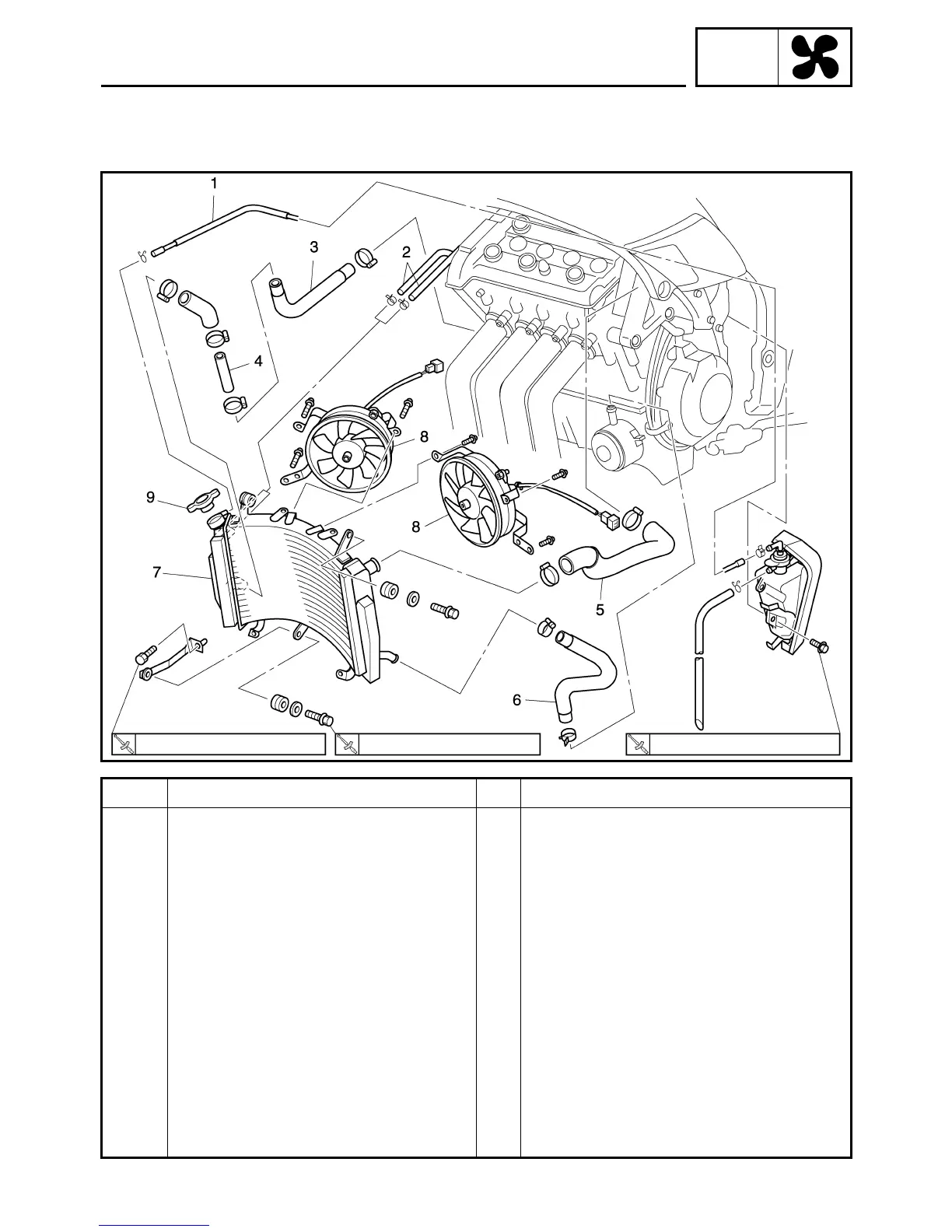

COOLING SYSTEM
RADIATOR
Order Job / Part Q’ty Remarks
Removing the radiator Remove the parts in the order listed.
Rider seat Refer to “SEATS” in chapter 3.
Fuel tank Refer to “FUEL TANK” in chapter 3.
Air filter case Refer to “AIR FILTER CASE” in chapter 3.
Side cowlings and bottom cowling Refer to “COWLINGS” in chapter 3.
Coolant Drain
Refer to “CHANGING THE COOLANT” in
chapter 3.
1 Coolant reservoir hose 1
2 Throttle body hose 2
3 Radiator outlet hose 1
4 Coolant pipe 1
5 Radiator inlet hose 1
6 Oil cooler outlet hose 1
7 Radiator 1
8 Radiator fan 2
10 Nm (1.0 m•kg, 7.2 ft•lb) 7 Nm (0.7 m•kg, 5.1 ft•lb) 12 Nm (1.2 m•kg, 8.7 ft•lb)
RADIATOR
