3-4
Order
Job
/
Part
Q’ty
Remarks
1
2
3
4
5
6
7
8
9

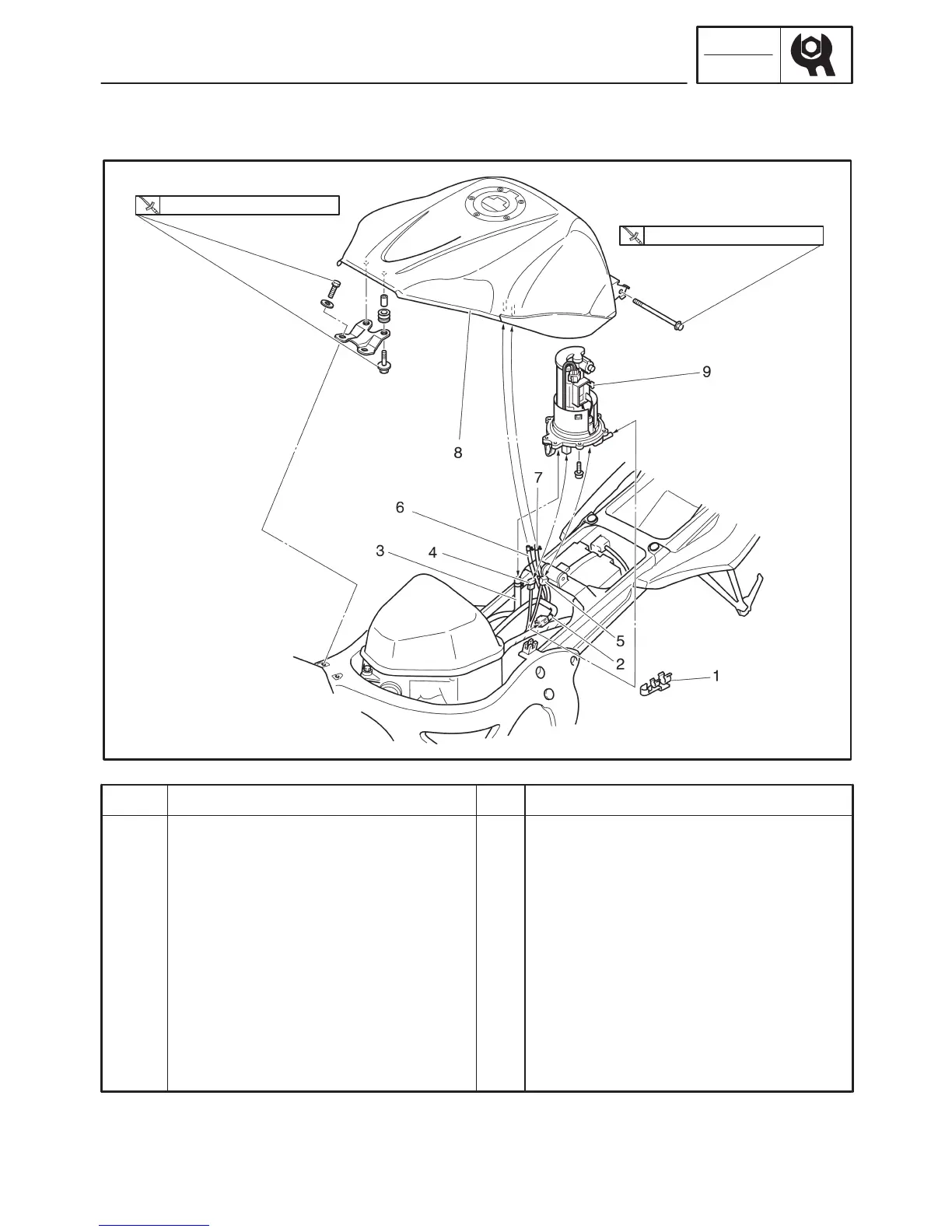

Removing the fuel tank
Rider seat
Fuel hose connector cover
Fuel hose
Fuel return hose
Fuel sender coupler
Fuel pump coupler
Fuel tank overflow hose
Fuel tank breather hose
Fuel tank
Fuel pump
1
1
1
1
1
1
1
1
1
Remove the parts in the order listed.
Refer to “SEA
TS”.
Disconnect.
Disconnect.
For installation, reverse the removal
procedure.
7 Nm (0.7 m
S
kg, 5.1 ft
S
lb)
7 Nm (0.7 m
S
kg, 5.1 ft
S
lb)
FUEL T
ANK
CHK
ADJ
EAS00040
FUEL T
ANK
