3-29

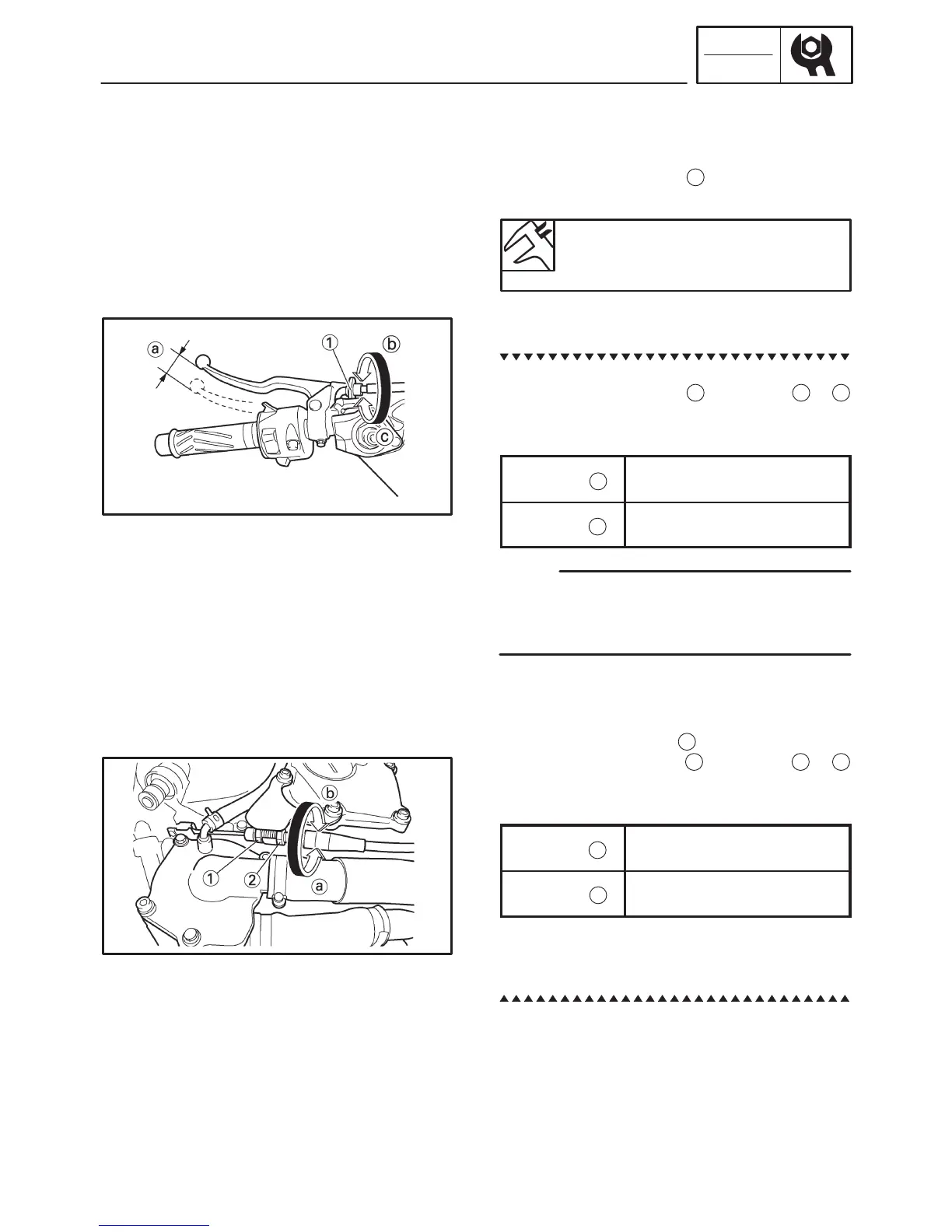

ADJUSTING THE CLUTCH CABLE FREE PLAY
CHK
ADJ
c
b
NOTE:
a
b
EAS00078
ADJUSTING THE CLUTCH CABLE FREE
PLAY
1. Check:
S clutch cable free play
a
Out of specification ! Adjust.
Clutch cable free play (at the
end of the clutch lever)
10 X 15 mm (0.39 X 0.59 in)
2. Adjust:
S clutch cable free play
Handlebar side
a. Turn the adjusting dial
1
in direction
b
or
c
until the specified clutch cable free play is ob-
tained.
Direction
Clutch cable free play is
increased.
Direction
Clutch cable free play is
decreased.
If the specified clutch cable free play cannot be
obtained on the handlebar side of the cable, use
the adjusting nut on the engine side.
Engine side
a. Remove the bottom cowling. Refer to
“COWLINGS”.
b. Loosen the locknuts
1
.
c. Turn the adjusting nut
2
in direction
a
or
b
until the specified clutch cable free play is ob-
tained.
Direction
Clutch cable free play is
increased.
Direction
Clutch cable free play is
decreased.
d. Tighten the locknuts.
e. Install the bottom cowling. Refer to “COWL-
INGS”.
