4-34
Order
Job
/
Part
Q’ty
Remarks
1
2
3
4

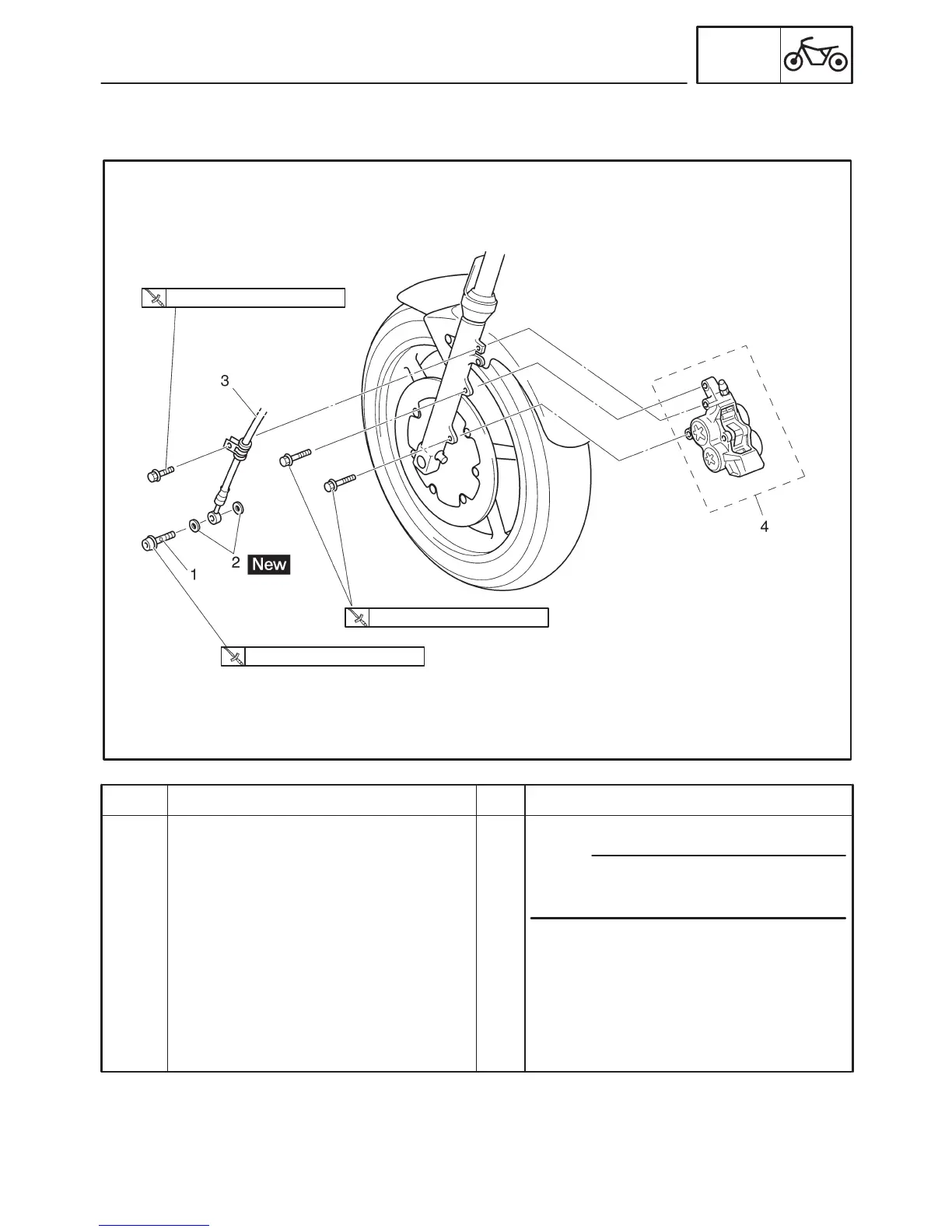

Removing the front brake calipers
Brake fluid
Union bolt
Copper washer
Brake hose
Brake caliper
1
2
1
1
Remove the parts in the order listed.
The following procedure applies to both
of the front brake calipers.
Drain.
For installation, reverse the removal
procedure.
NOTE:
7 Nm (0.7 m
S
kg, 5.1 ft
S
lb)
40 Nm (4.0 m
S
kg, 29 ft
S
lb)
30 Nm (3.0 m
S
kg, 22 ft
S
lb)
FRONT AND REAR BRAKES
CHAS
EAS00613
FRONT BRAKE CALIPERS
