Order Job/Part Q’ty Remarks
1
2
3
4
5

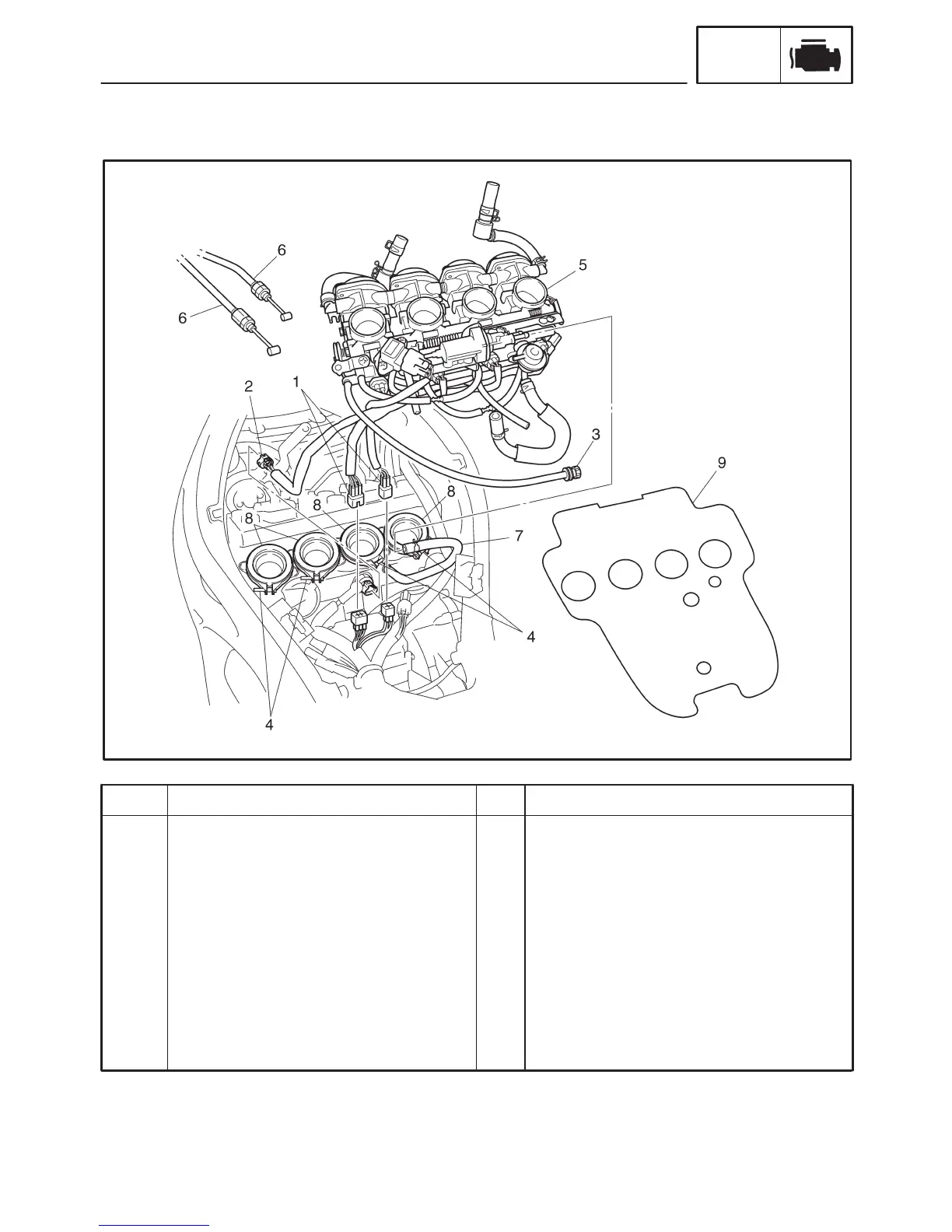

Removing the throttle bodies
Seats/fuel tank/rubber sheet
Air filter case
Coolant
Sub-wire harness coupler
Coolant temp sensor coupler
Throttle stop screw
Throttle body joint clamp screw
Throttle bodies
2
1
1
4
1
Remove the parts in the order listed.
Refer to “SEATS” and “FUEL TANK” in
chapter 3.
Refer to “AIR FILTER CASE” in chapter 3.
Drain.
Refer to “CHANGING THE COOLANT” in
chapter 3.
Disconnect.
Loosen.
THROTTLE BODIES
FI
THROTTLE BODIES
