Yamaha YZF-R6T - Shift Shaft

5-38
Order Job/Part Q’ty Remarks
1
2
3
4
5
6
7
8
9
10

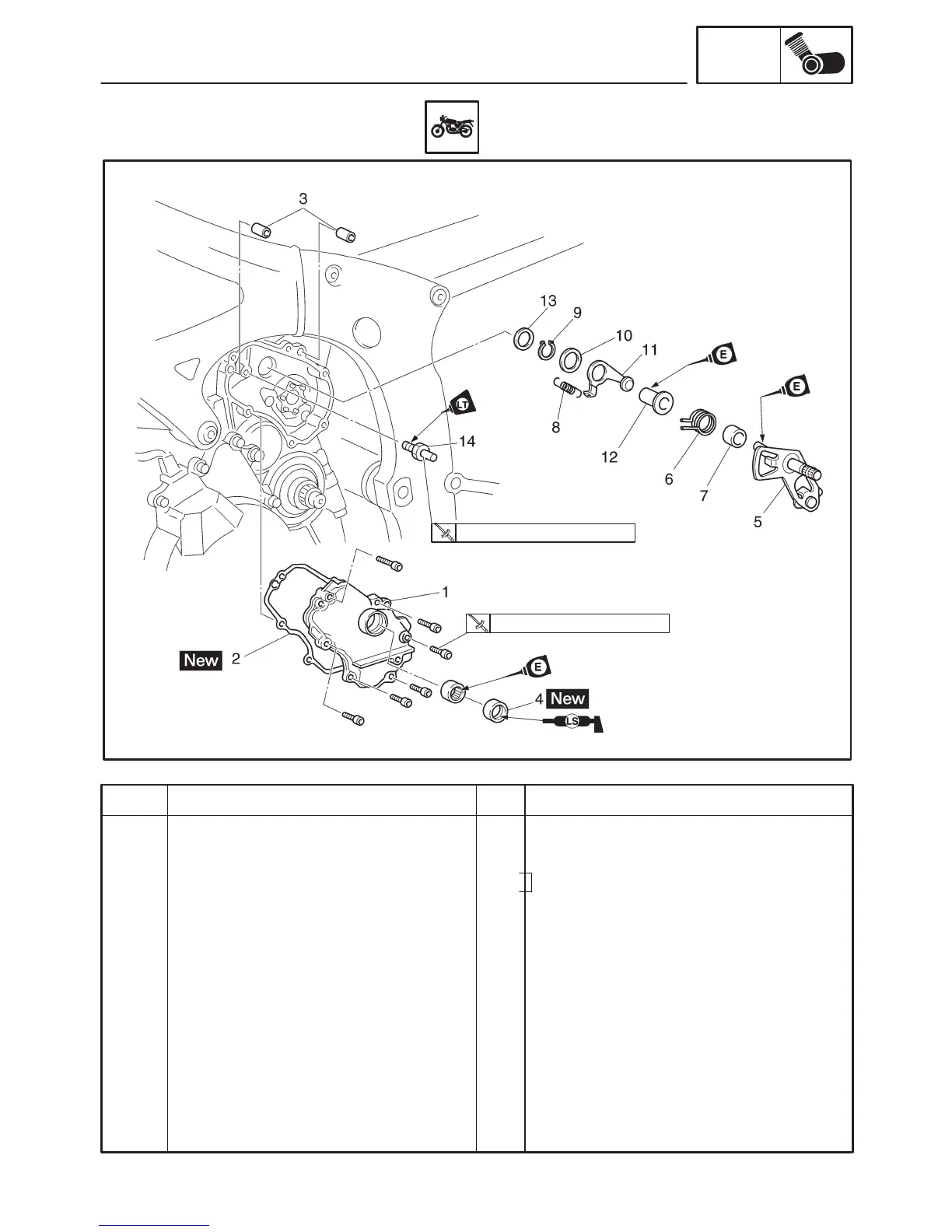

Removing the shift shaft and stopper
lever
Coolant reservoir tank
Coolant
Drive sprocket cover
Shift shaft cover
Shift shaft cover gasket
Dowel pin
Oil seal
Shift shaft
Shift shaft spring
Collar
Stopper lever spring
Circlip
Washer
1
1
1
1
1
1
1
1
1
1
Remove the parts in the order listed.
Refer to “ENGINE”.
Drain.
Refer to “CHANGING THE COOLANT”
in chapter 3.
22 Nm (2.2 mSkg, 16 ftSlb)
12 Nm (1.2 mSkg, 8.7 ftSlb)
SHIFT SHAFT
ENG
EAS00327
SHIFT SHAFT
SHIFT SHAFT AND STOPPER LEVER
