5-39

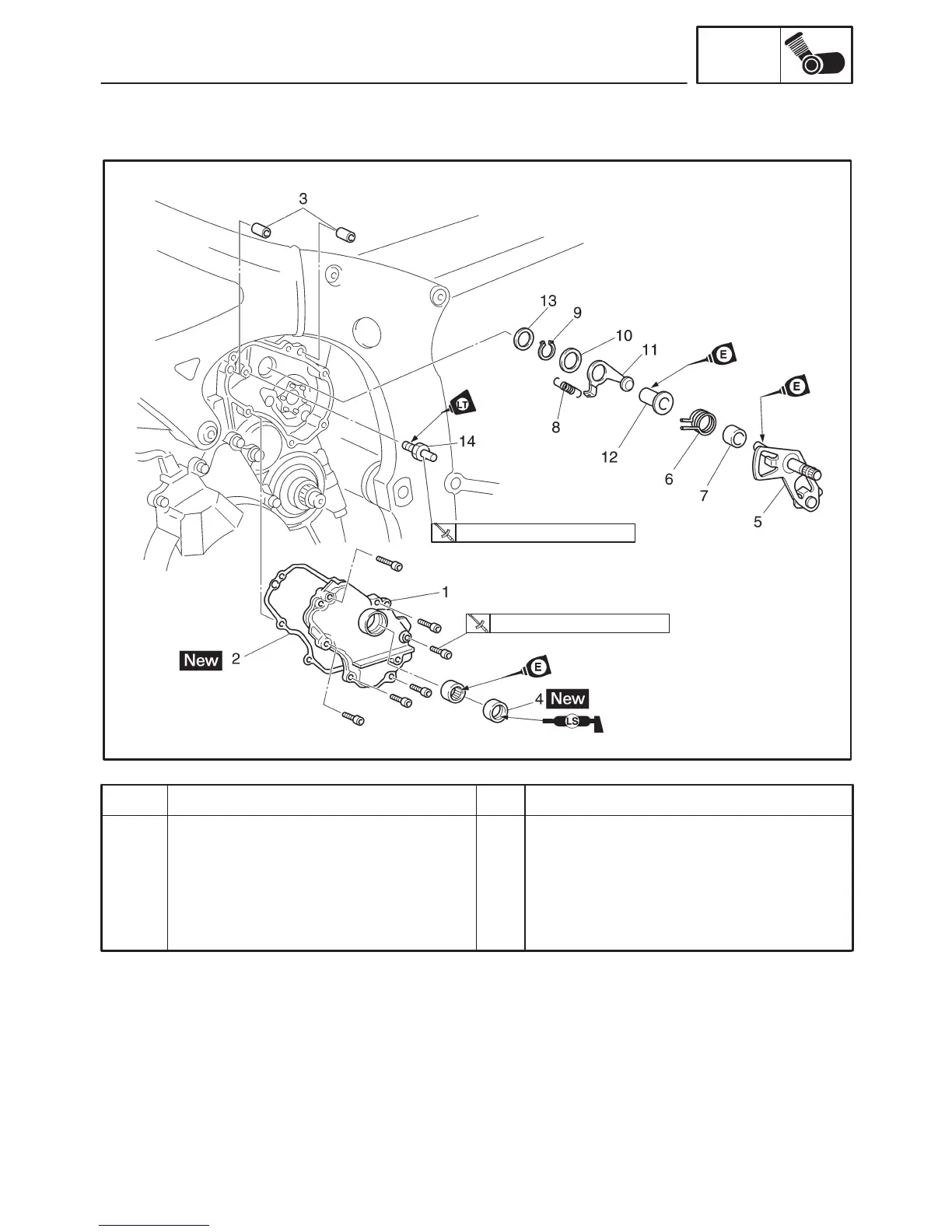

SHIFT SHAFT
ENG
Order
Job
/
Part
Q’ty
Remarks
11
12
13
14
Stopper lever
Collar
W
asher
Shift shaft spring stopper
1
1
1
1
For installation, reverse the removal
procedure.
22 Nm (2.2 m
S
kg, 16 ft
S
lb)
12 Nm (1.2 m
S
kg, 8.7 ft
S
lb)
