6-10
Remove the parts in the order listed.
Refer to “COWLINGS” in chapter 3.
Drain.
Refer to “CHANGING THE COOLANT” in
chapter 3.
It is not necessary to remove the water
pump unless the coolant level is extremely
low or the coolant contains engine oil.
For installation, reverse the removal
procedure.
NOTE:
Order Job/Part Q’ty Remarks
1
2
3
4
5

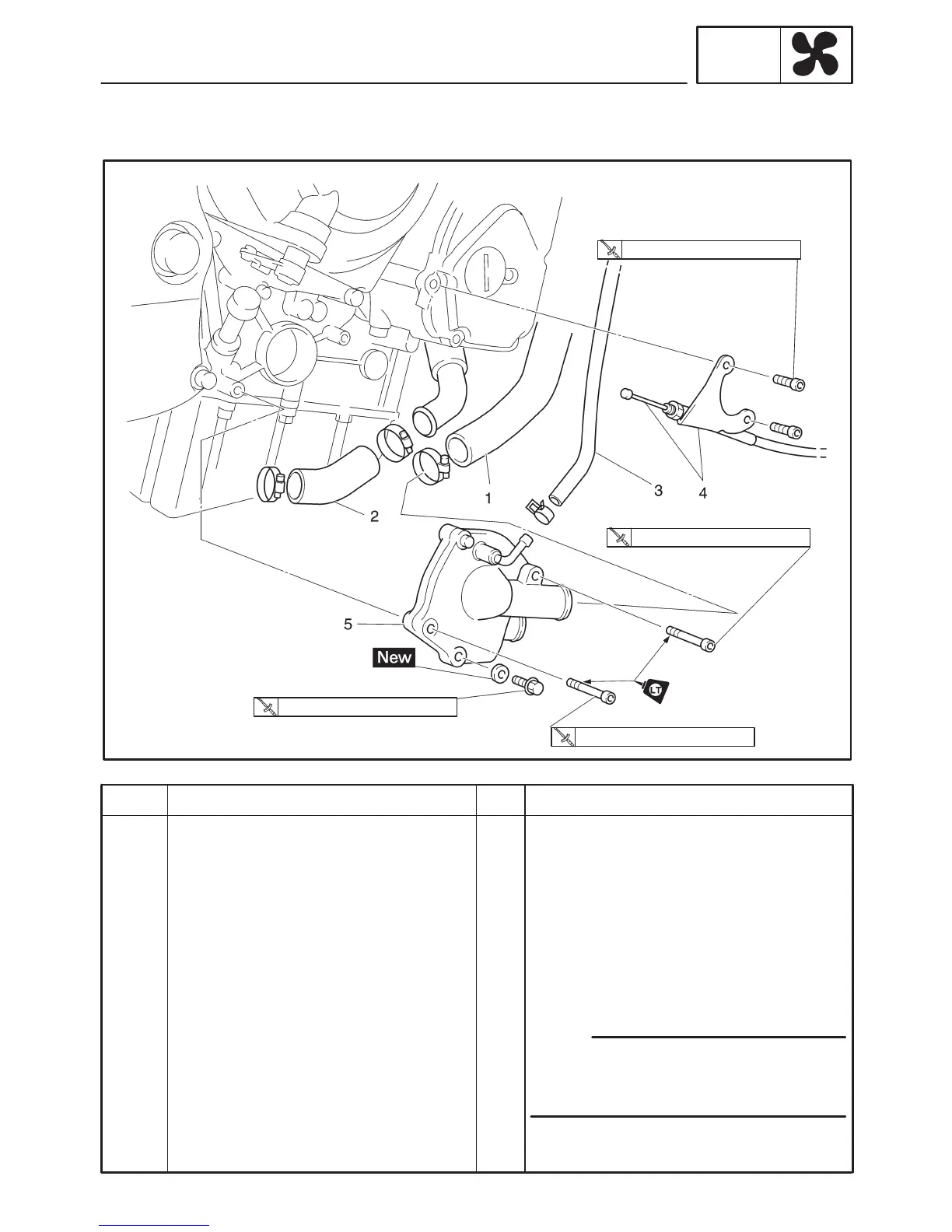

Removing the water pump
Bottom cowling
Coolant
Water pump inlet hose
Water pump outlet hose
Water pump hose
Clutch cable/holder
Water pump
1
1
1
1/1
1
12 Nm (1.2 mSkg, 8.7 ftSlb)
12 Nm (1.2 mSkg, 8.7 ftSlb)
12 Nm (1.2 mSkg, 8.7 ftSlb)
10 Nm (1.0 mSkg, 7.2 ftSlb)
WATER PUMP
COOL
EAS00408
WATER PUMP
