4-26
Order Job/Part Q’ty Remarks
1
2
3
4
5
6
7
8
9
10

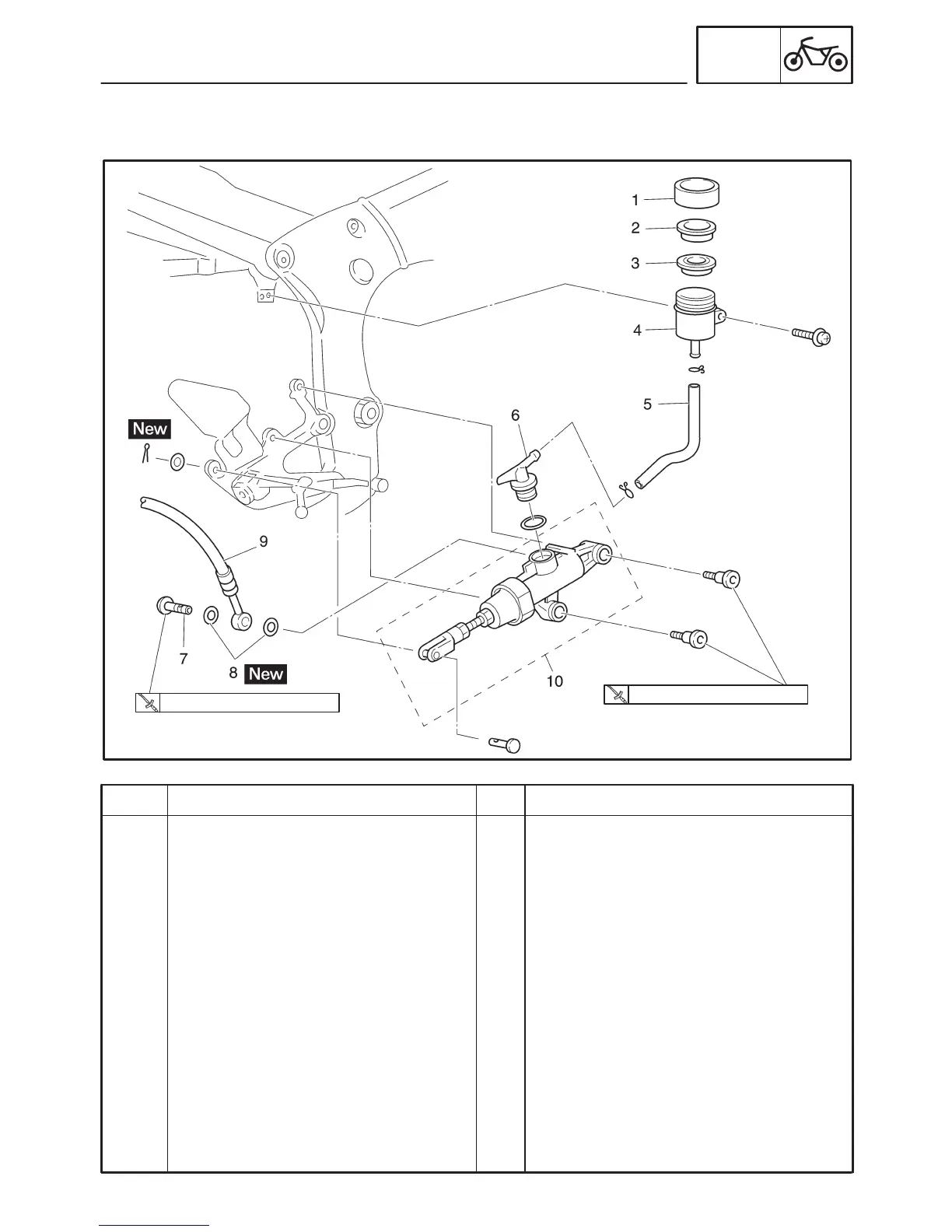

Removing the rear brake master
cylinder
Brake fluid
Brake fluid reservoir cap
Brake fluid reservoir diaphragm holder
Brake fluid reservoir diaphragm
Brake fluid reservoir tank
Brake fluid reservoir hose
Hose joint
Union bolt
Copper washer
Brake hose
Brake master cylinder
1
1
1
1
1
1
1
2
1
1
Remove the parts in the order listed.
Drain.
Refer to “CHANGING THE BRAKE
FLUID” in chapter 3.
For installation, reverse the removal
procedure.
30 Nm (3.0 mSkg, 22 ftSlb)
18 Nm (1.8 mSkg, 13 ftSlb)
FRONT AND REAR BRAKES
CHAS
EAS00586
REAR BRAKE MASTER CYLINDER
