4-25
Order
Job
/
Part
Q’ty
Remarks

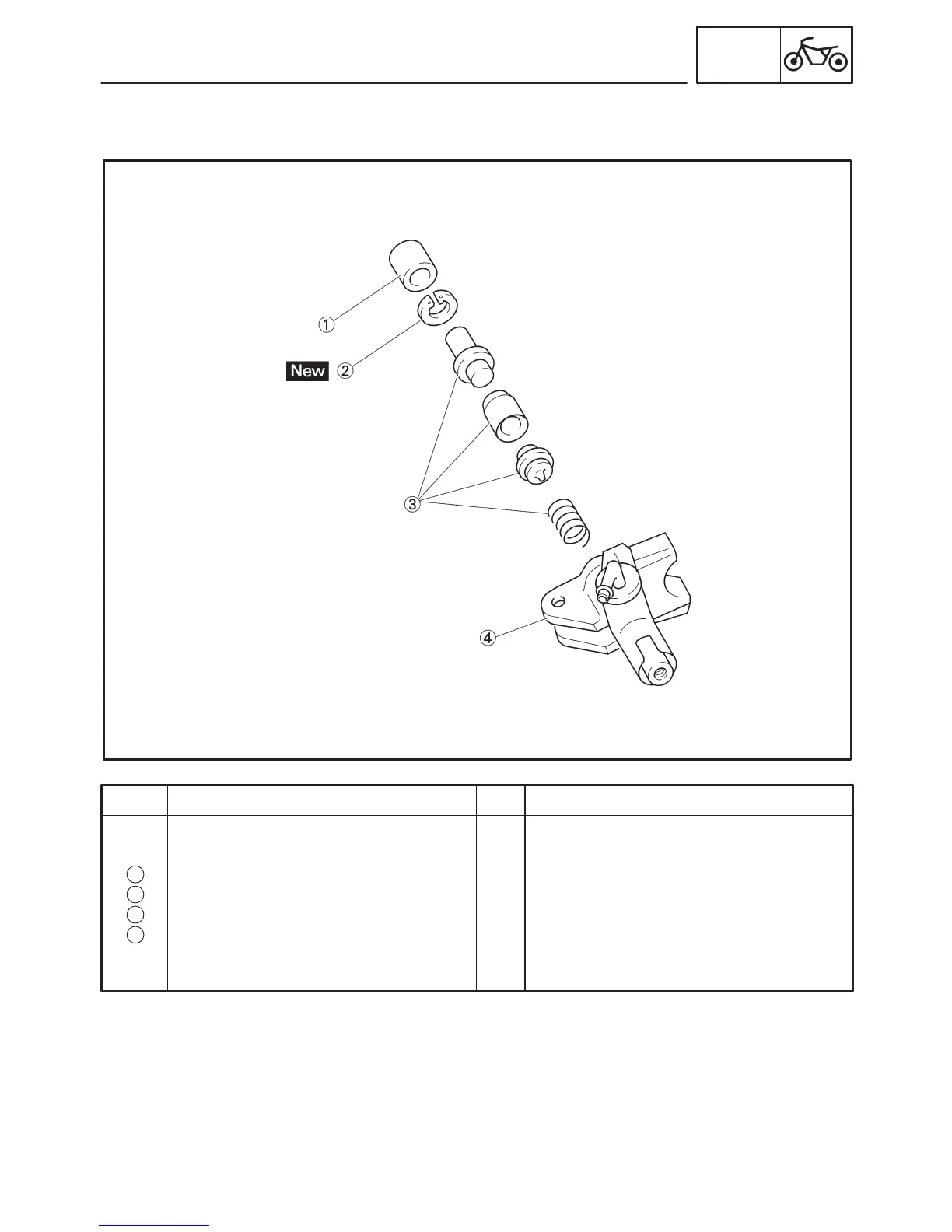

Disassembling the front brake
master cylinder
Dust boot
Circlip
Brake master cylinder kit
Brake master cylinder body
1
1
1
1
Disassemble the parts in the order listed.
For assembly
, reverse the disassembly
procedure.
1
2
3
4
FRONT AND REAR BRAKES
CHAS
EAS00585
Manuals by Motomatrix / www.motomatrix.co.uk / The Solution For Lost Motorcycle Coded Keys
email: info@motomatrix.co.uk
274
