3-45
BLEEDING THE HYDRAULIC BRAKE SYSTEM/
ADJUSTING THE SHIFT PEDAL
CHK
ADJ
WARNING
b
c
h. Tighten the bleed screw and then release the
brake lever or brake pedal.
i. Repeat steps (e) to (h) until all of the air
bubbles have disappeared from the brake
fluid in the plastic hose.
j. Tighten the bleed screw to specification.
Bleed screw
6 Nm (0.6 mSkg, 4.3 ftSlb)
k. Fill the brake fluid reservoir to the proper lev-
el with the recommended brake fluid.
Refer to “CHECKING THE BRAKE FLUID
LEVEL”.
After bleeding the hydraulic brake system,
check the brake operation.
EAS00136

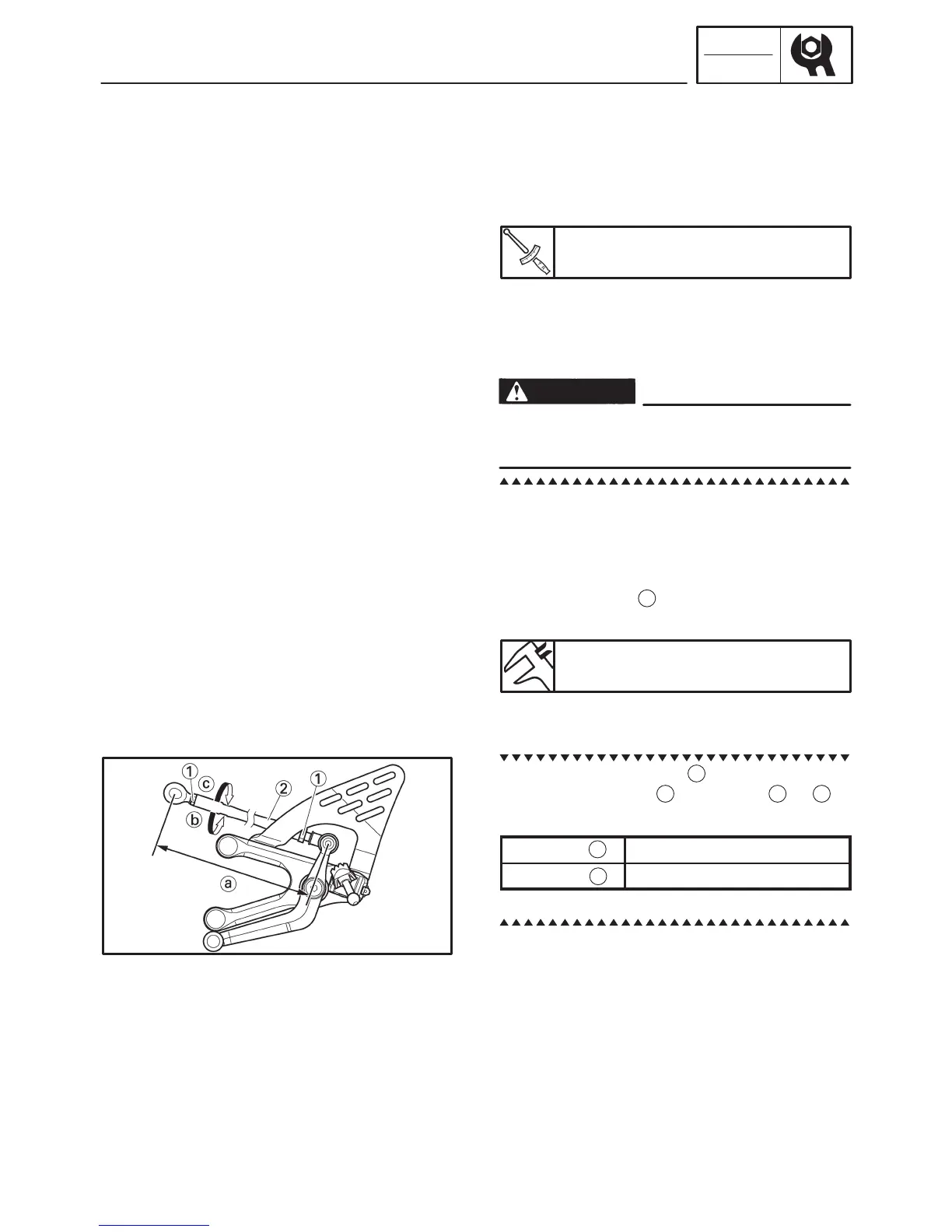

ADJUSTING THE SHIFT PEDAL
1. Check:
S shift rod length
a
Out of specification ! Adjust.
Shift rod length
290 mm (11.42 in)
2. Adjust:
S shift pedal position
a. Loosen both locknuts
1
.
b. Turn the shift rod
2
in direction
b
or
c
to
obtain the correct shift pedal position.
Direction
Shift pedal is raised.
Direction Shift pedal is lowered.
c. Tighten both locknuts.
