SPEC
6

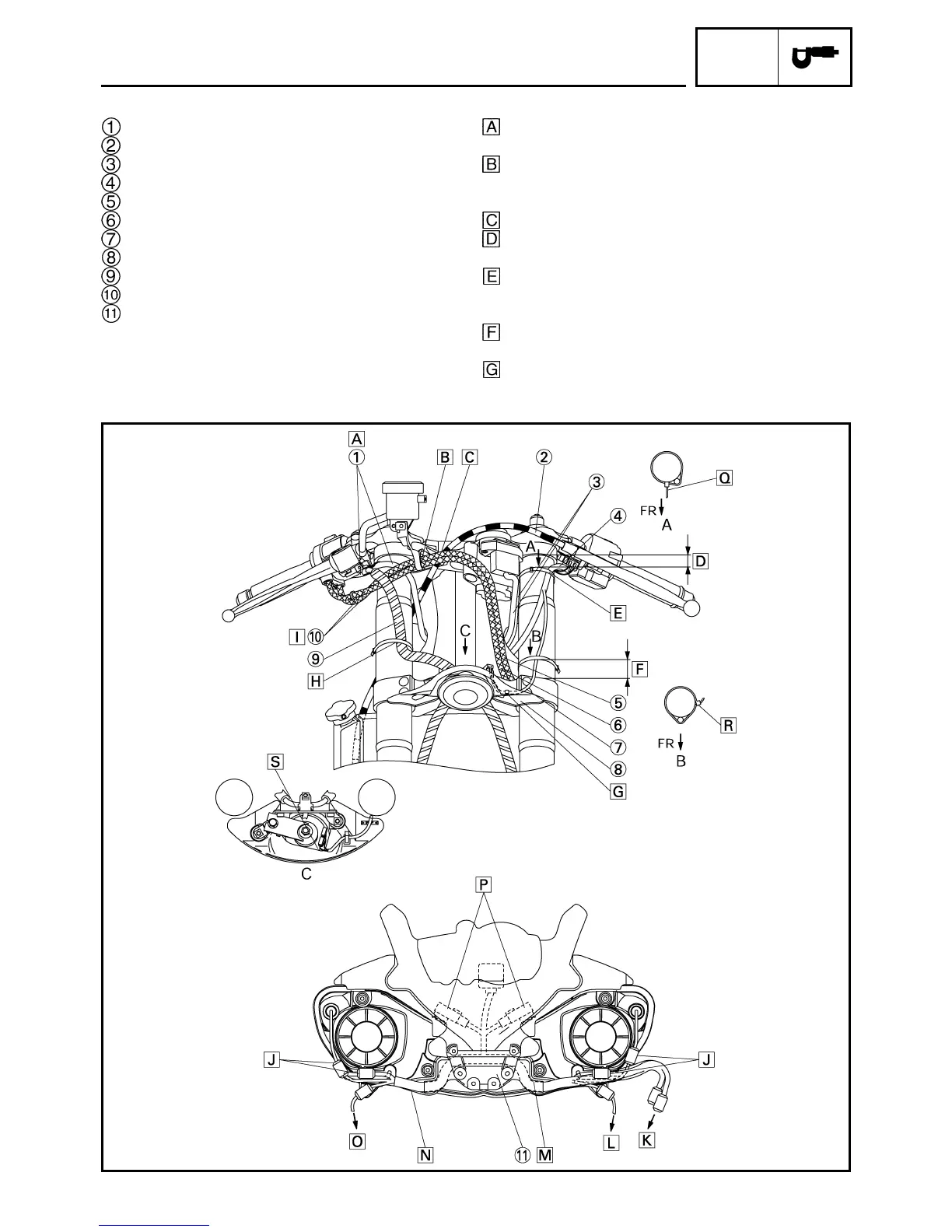

CABLE ROUTING
Right handlebar switch lead
Clutch cable
Main switch lead
Left handlebar switch lead
Throttle cable (return side)
Throttle cable (pull side)
Horn lead
Steering cover
Front brake hose
Throttle cables
Joint
Pass the right handlebar switch lead inside the
front brake hoses and over the throttle cables.
Install the throttle cables to the hook so that the
pulling side of the throttle cables is routed down-
ward.
Pass the clutch cable through the guide.
Plastic locking tie shall be positioned at 15 mm
(0.59 in) below from the upper bracket.
Clamp the left handlebar switch lead to the front fork
with the plastic locking tie and cut the tip of the tie.
Clamp it to the protector section.
Clamping position should be 10 mm (0.39 in) or
lower from the top end of the under bracket.
Attach the horn lead to the hook on the steering
cover.
CABLE ROUTING
To Next Page
