3-24
MEASURING THE COMPRESSION PRESSURE/
CHECKING THE ENGINE OIL LEVEL
CHK
ADJ
13 Nm (1.3 mSkg, 9.4 ftSlb)
NOTE:
d. If the compression pressure is below the
minimum specification, pour a teaspoonful of
engine oil into the spark plug bore and mea-
sure again.
Refer to the following table.
Compression pressure
(with oil applied into the cylinder)
Reading Diagnosis
Higher than
without oil
Piston ring(s) wear
or damage !
Repair.
Same as without
oil
Piston, valves,
cylinder head
gasket or piston
possibly defective
! Repair.
7. Install:
S spark plug
8. Install:
S ignition coils
9. Install:
S heat protector plate
S air filter case
Refer to “AIR FILTER CASE”.
S fuel tank
Refer to “FUEL TANK”.
S rider seat
Refer to “SEATS”.
EAS00069

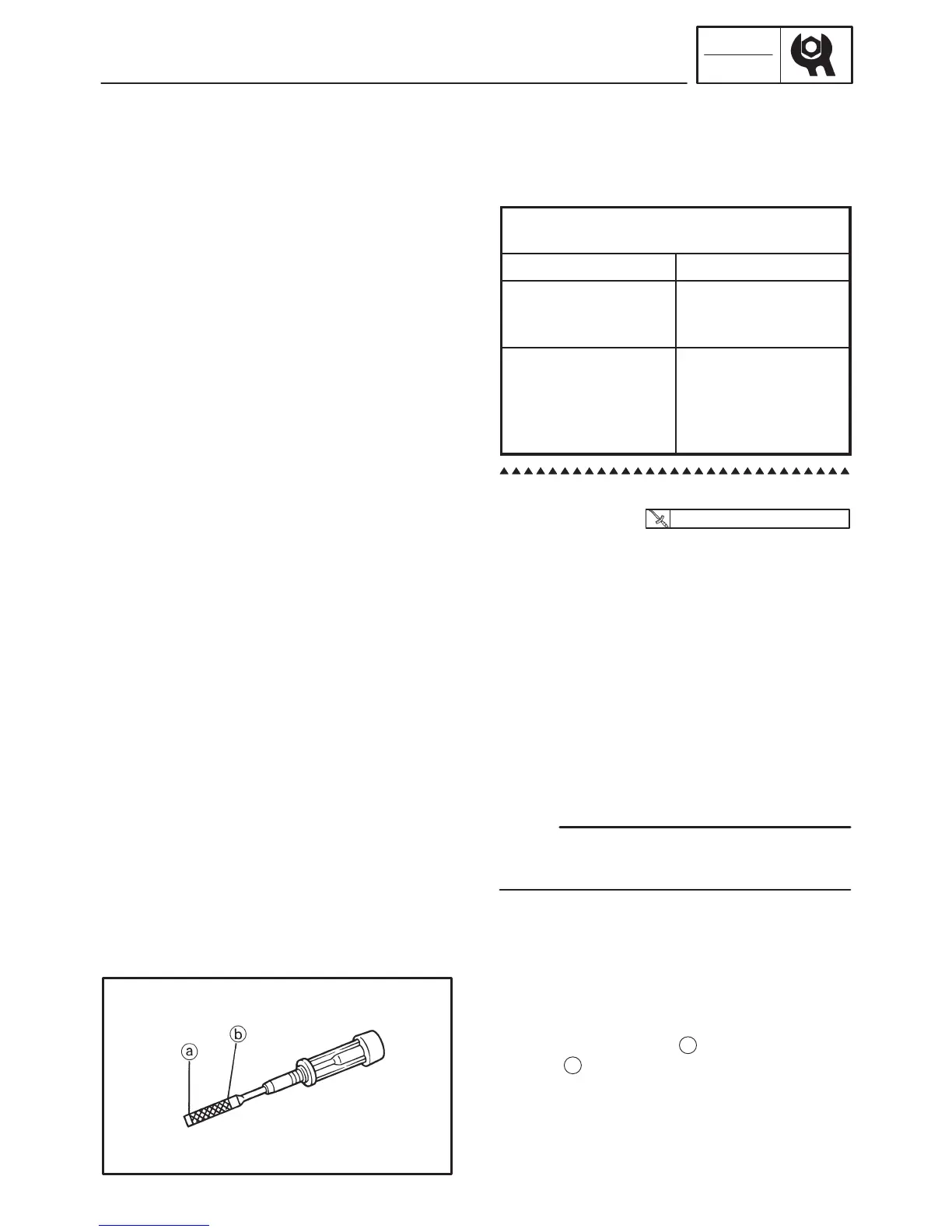

CHECKING THE ENGINE OIL LEVEL
1. Stand the motorcycle on a level surface.
S Place the motorcycle on a suitable stand.
S Make sure the motorcycle is upright.
2. Start the engine, warm it up for several min-
utes, and then turn it off.
3. Check:
S engine oil level
The engine oil level should be between the
minimum level mark
a
and maximum level
mark
b
.
Below the minimum level mark ! Add the
recommended engine oil to the proper level.
To Next Page
